2.3.5
This jumper makes the selection of Audio output.
2.3.6
You may need to use this jumper is to clear the CMOS memory if
incorrect settings in the Setup Utility.
16
Downloaded from StockCheck.com

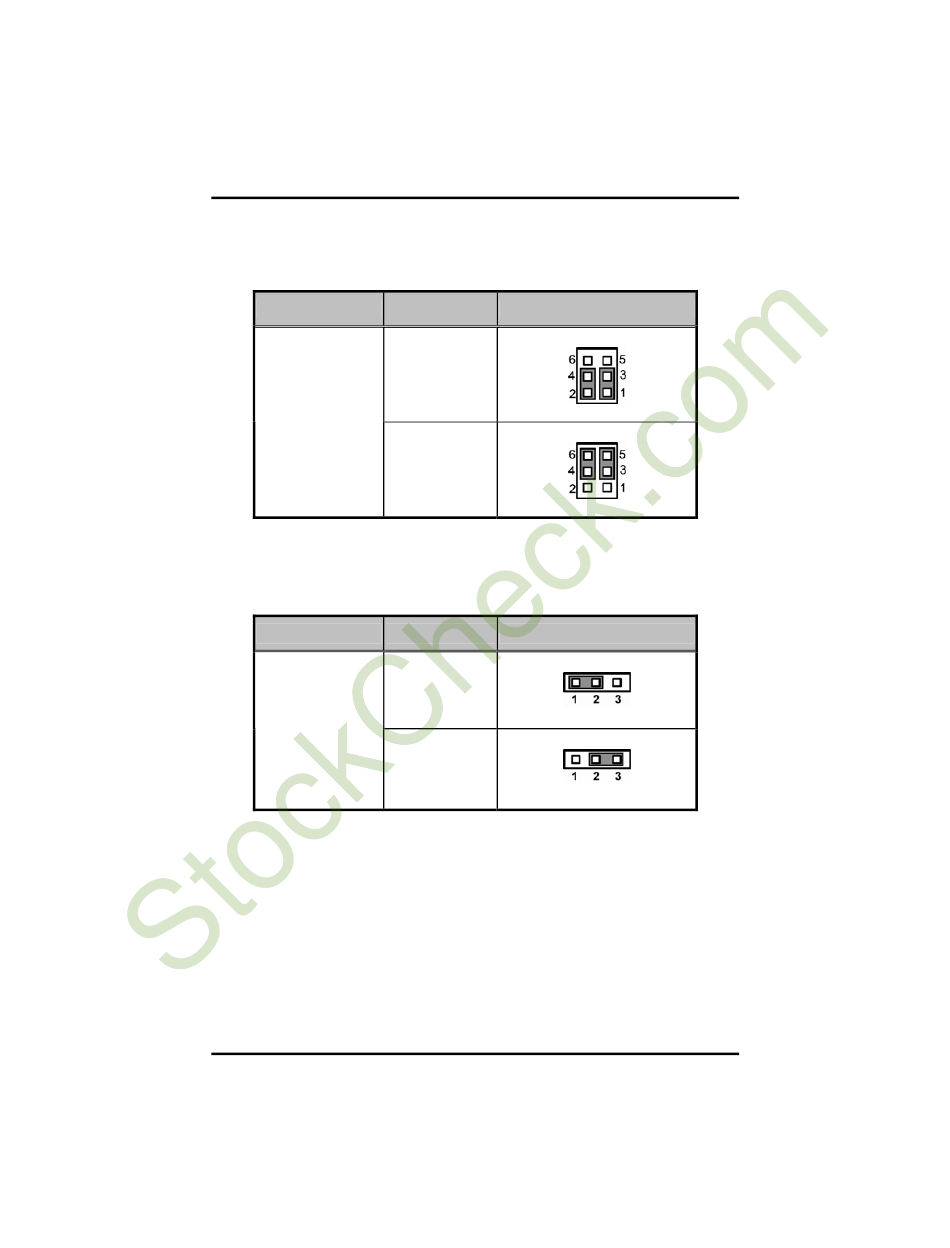

Audio Output Selection Jumper: JP12

Description Function
Audio Output Line Out
Selection (Default)
Speak Out

CMOS Clear Jumper: JP13

Description Function
CMOS Clear Normal (Default)
Clear CMOS
Jumper Setting
JP12
JP12
Jumper Setting
JP13
JP13
Jumpers and Connectors
