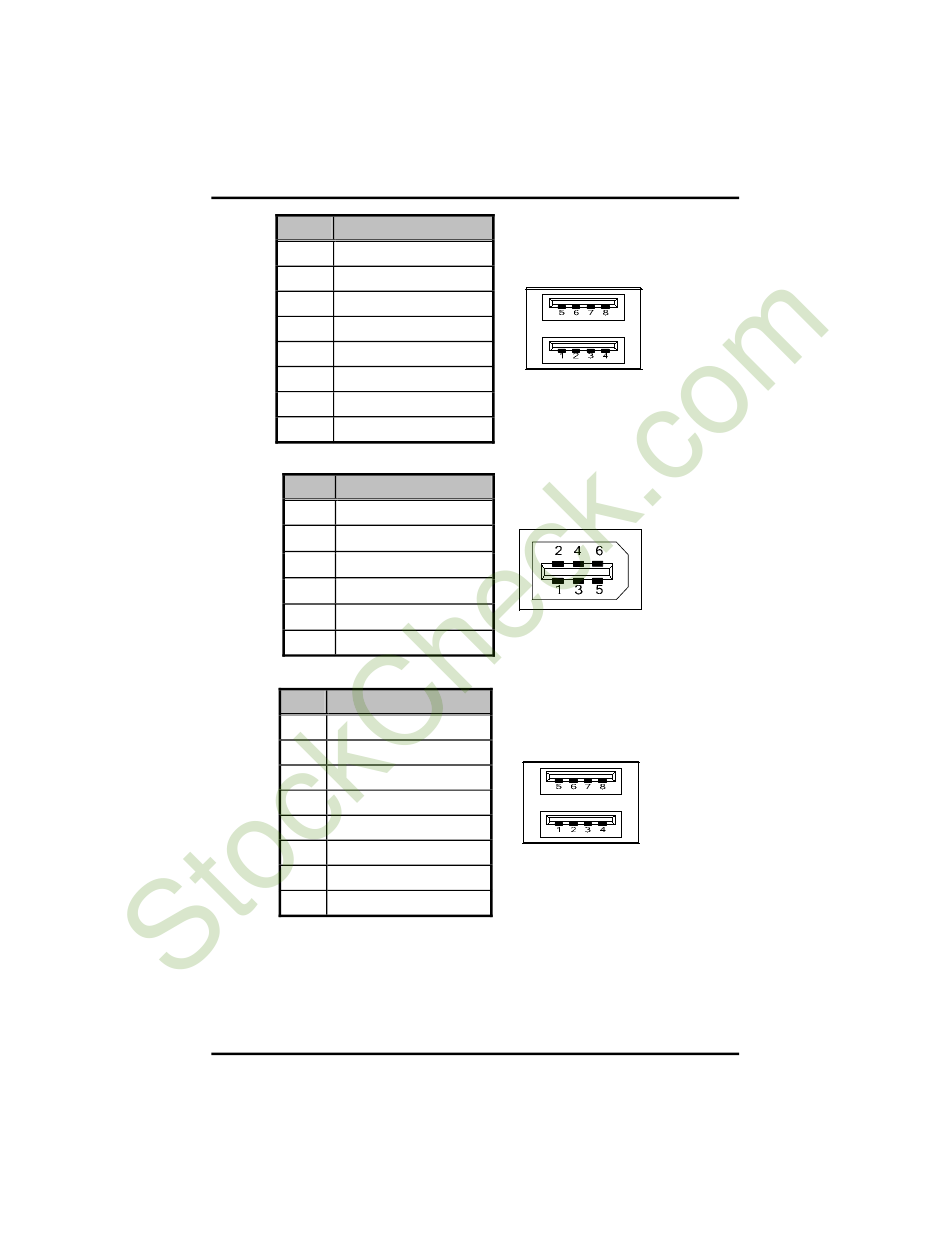

SBC86840 Series All-In-One Mini ITX Board User's Manual
26
Downloaded from StockCheck.com
Pin
Description
1
+5V
2
USB D0-
3
USB D0+
4
GND
5
+5V
6
USB D1-
7
USB D1+
8
GND
Pin
Description
1
+12V
2
GND
3
XTPB1N
4
XTPB1P
5
XTPA1N
6
XTPA1P
Pin
Description
1
+5V
2
USB D2-
3
USB D2+
4
GND
5
+5V
6
USB D3-
7
USB D3+
8
GND
CN9B
CN13A
CN13B
Jumpers and Connectors
