2.3.7 TPM PP (Physical Presence) Address Select

2.3.8 CompactFlash Setting Jumper: JP15

Use this jumper to select the Master or Slave CompactFlash interface.

2.3.9 CompactFlash Voltage Selection Jumper: JP16

Use this jumper to select the voltage for CompactFlash interface.
Jumpers and Connectors
Downloaded from StockCheck.com
SBC86840 Series All-In-One Mini ITX Board User's Manual

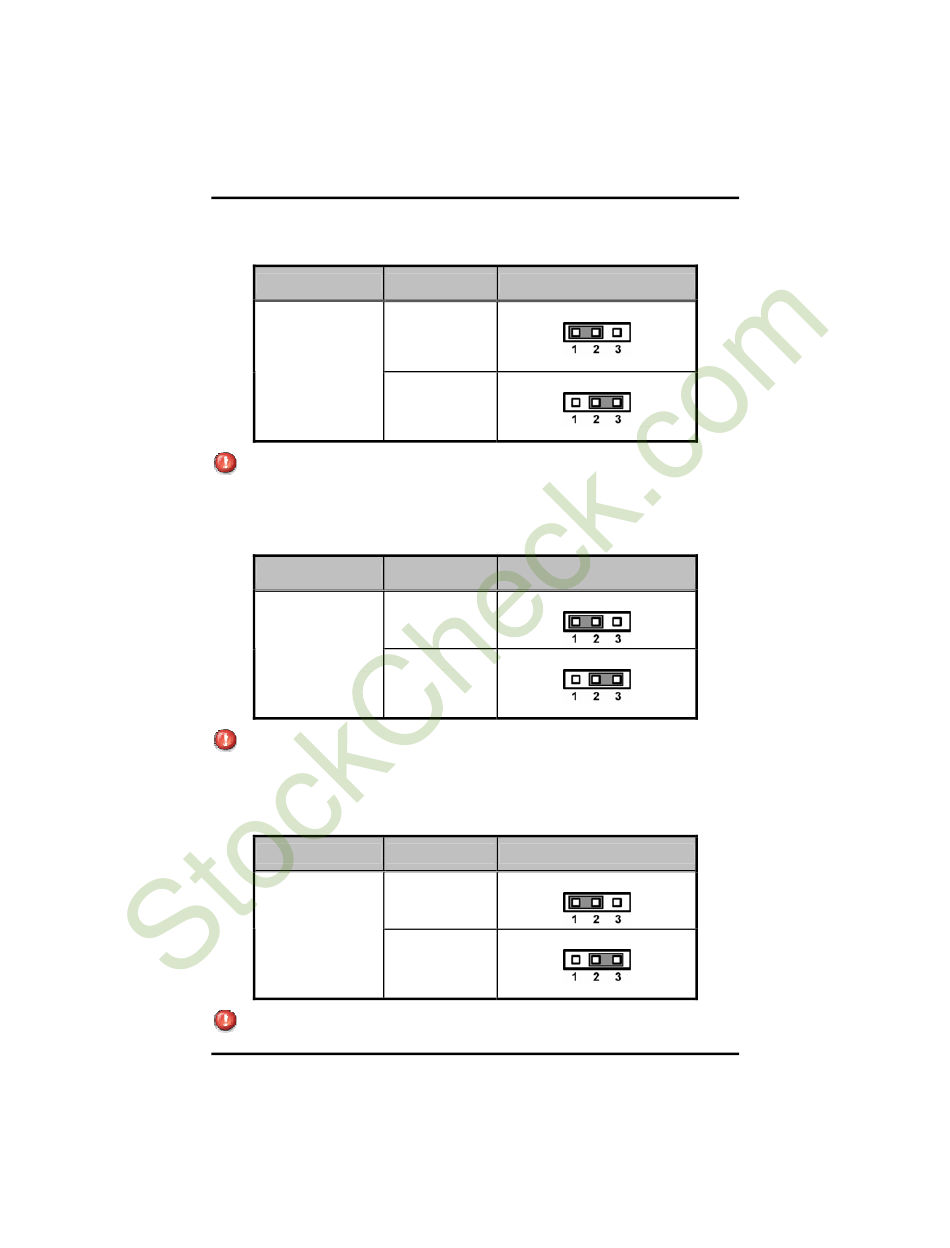

Jumper: JP14
Description Function
TPM (Physical 2EH.
Presence)
Address Select
4EH.
(Default)
This jumper is optional. It is not mounted as a default design.
Description Function
CompactFlash Slave (Default)
Mode
(Master/Slave)
Master
Selection
This jumper is optional. It is not mounted as a default design.
Description Function
CompactFlash 3.3V (Default)
Voltage Selection
5V
This jumper is optional. It is not mounted as a default design.
Jumper Setting
JP14
JP14
Jumper Setting
JP15
JP15
Jumper Setting
JP16
JP16
17
