SBC86840 Series All-In-One Mini ITX Board User's Manual

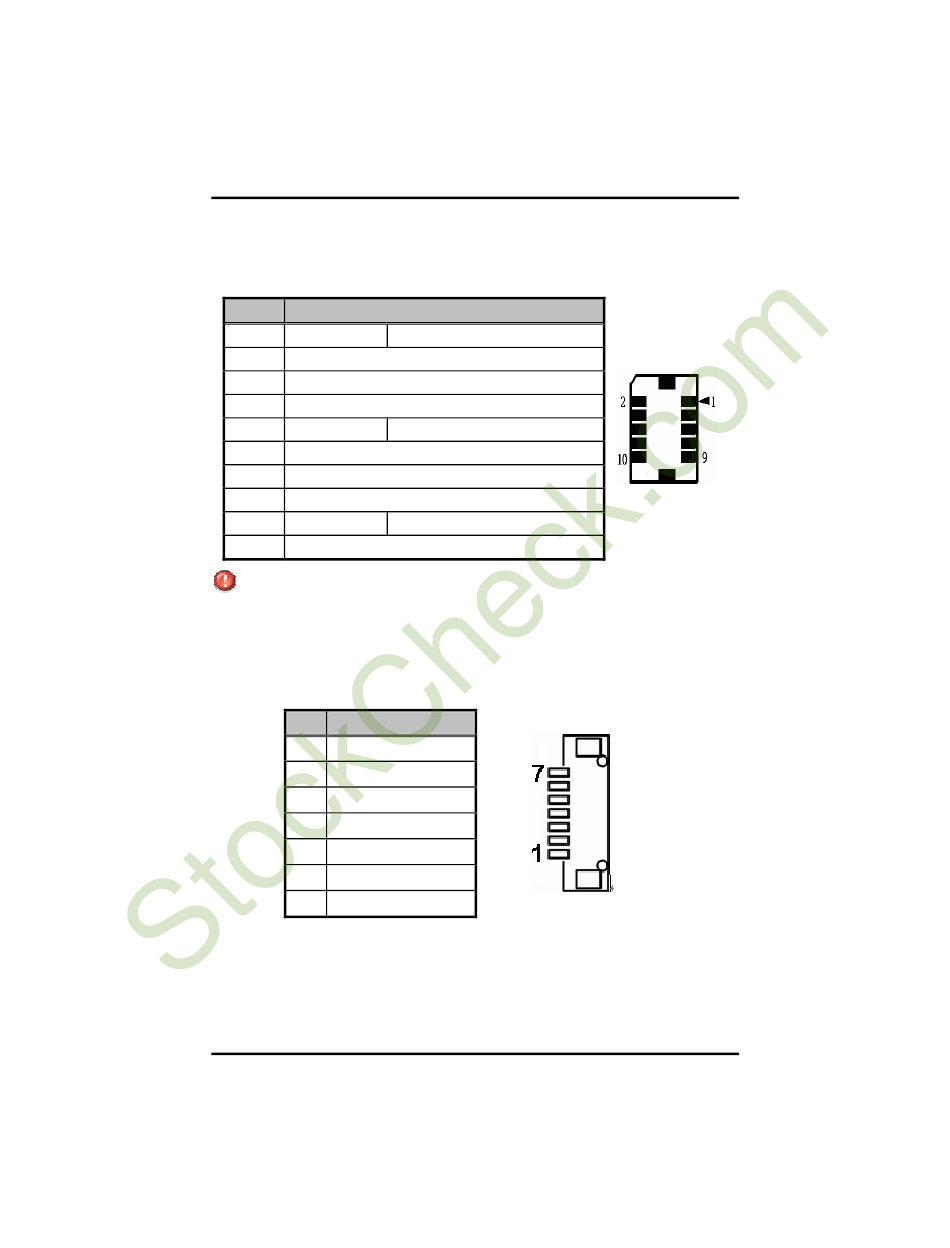

2.4.9 TV-OUT Connector: CN11

The TV-OUT connector on the SBC is a 10-pin connector. It is strongly
recommended to use the matching Hirose DF20A-10DS-1C connector.

2.4.10 LVDS Backlight Connector: CN12

This is a 7-pin connector for inverter on the board that we strongly
recommend you to use the matching DF13-7S-1.25C connector.
28
Downloaded from StockCheck.com
Pin Description
1 TVB-DAC Luminance+Sync(S-Video)
2 GND
3 GND
4 GND
5 TVA-DAC Composite(RCA)
6 GND
7 GND
8 GND
9 TVC-DAC Crominance(S-Video)
10 GND
This connector is optional. It is not mounted as a default design.
Pin Description
1 +12V
2 +12V
3 +5V
4 ENABLE
5 GND
6 GND
7 GND
CN11
CN12
Jumpers and Connectors
