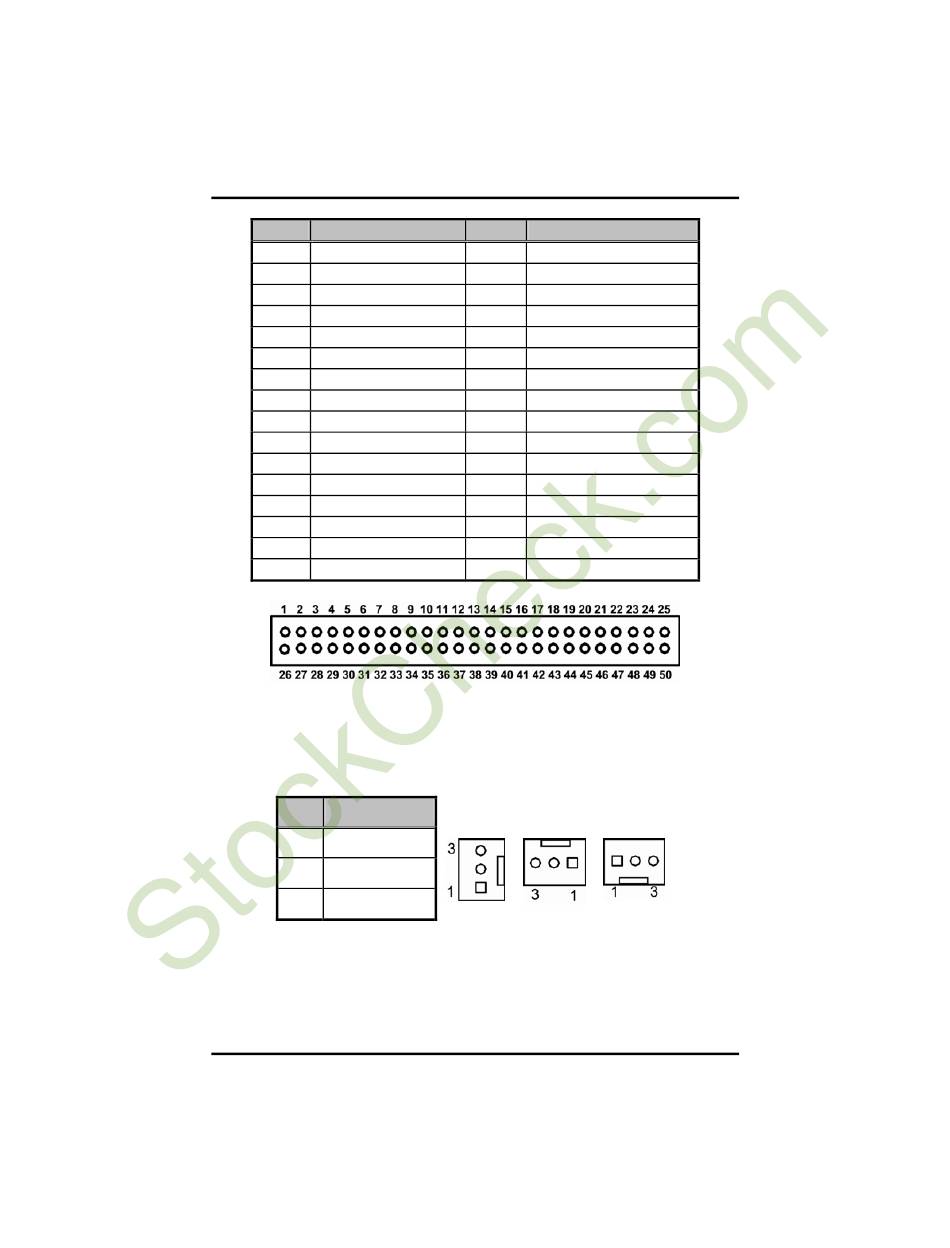

2.4.23 Fan Connectors: FAN1, FAN2, FAN3

Pentium microprocessors require a fan for heat dispensing. FAN1 is a
fan connector for North Bridge fan connector, FAN2 for CPU, and
FAN3 for system. These fan connectors are for fan power supply.
Jumpers and Connectors
Downloaded from StockCheck.com
SBC86840 Series All-In-One Mini ITX Board User's Manual
Pin Description
19 Address 1
21 Data 0
23 Data 2
25 CD2-
27 Data 11
29 Data 13
31 Data 15
33 VS1-
35 IOWR-
37 INTR
39 CSEL-
41 RESET-
43 DMAREQ
45 DASP-
47 Data 8
49 Data 10
CNS2
Pin Description
1 Ground
2 +12V
3 Sensor
Pin Description
20 Address 0
22 Data 1
24 IOCS16-
26 CD1-
28 Data 12
30 Data 14
32 CS1-
34 IORD-
36 WE#
38 +5V
40 VS2-
42 IORDY-
44 DMAACK-
46 PATADET
48 Data 9
50 GND
FAN1 FAN2 FAN3
