Audio S/Pdif-Out Connector: Cn19 - AXIOMTEK SBC86840 Series User Manual

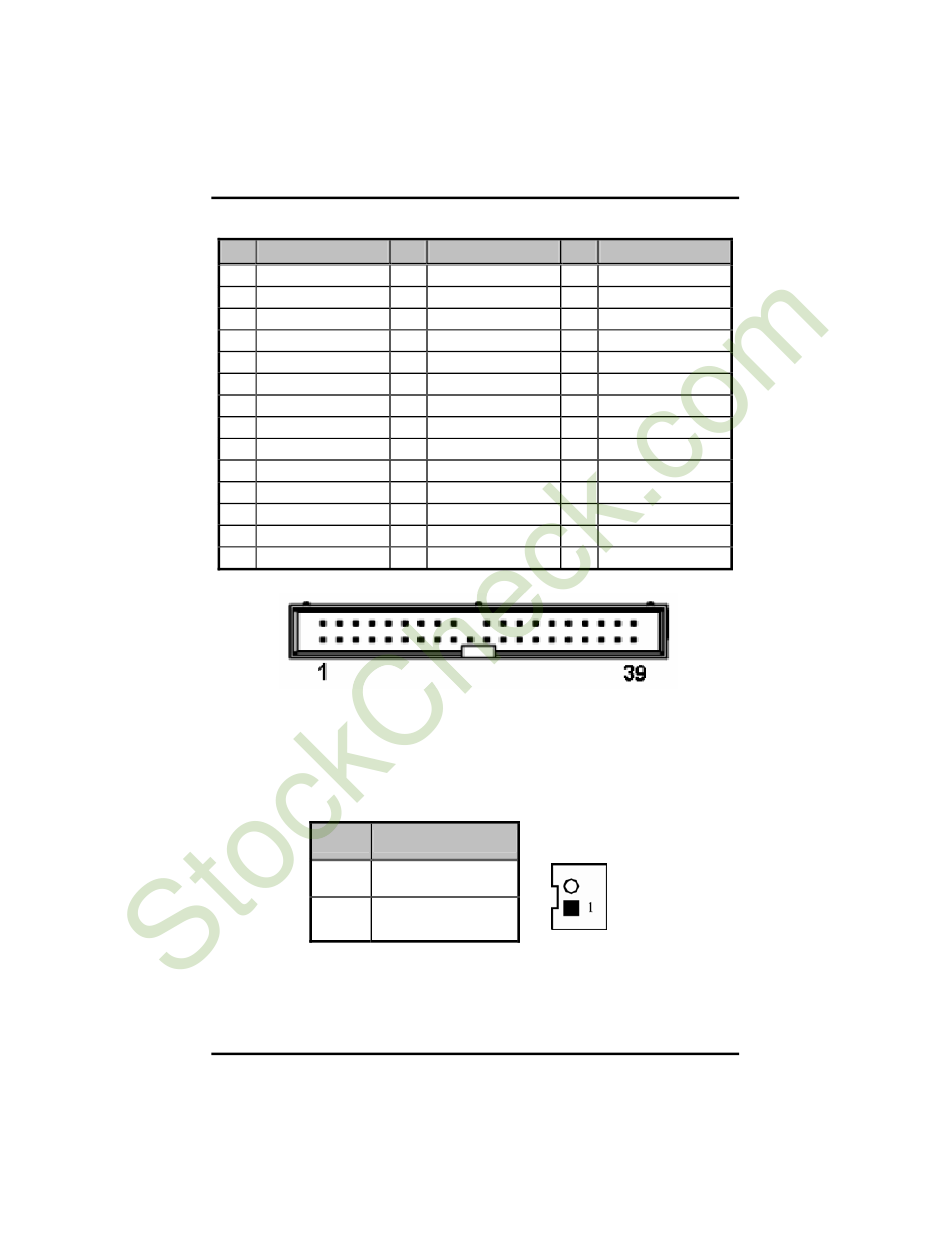

CN17 Pin Assignment:
Pin
1
4
7
10
13
16
19
22
25
28
31
34
37
40
CN17

2.4.15 Audio S/PDIF-OUT Connector: CN19

This connector is to connect S/PDIF (Sony & Philips Digital
Interconnect Format) interface for digital audio transmission.
Jumpers and Connectors
Downloaded from StockCheck.com
SBC86840 Series All-In-One Mini ITX Board User's Manual
Description Pin
Reset # 2 GND
Data 8 5 Data 6
Data 5 8 Data 10
Data 11 11 Data 3
Data 2 14 Data 13
Data 14 17 Data 0
GND 20 No connector
GND 23 IOW #
IOR # 26 GND
CSEL 29 DACK#
IRQ 32 No connector
PATADET 35 SA0
HDC CS0 # 38 HDC CS1 #
GND
Pin Description
1 S/PDIF-OUT
2 GND
Description Pin Description
3 Data 7
6 Data 9
9 Data 4
12 Data 12
15 Data 1
18 Data 15
21 DREQ
24 GND
27 IOCHRDY
30 GND
33 SA1
36 SA2
39 HDD Active #
CN19
