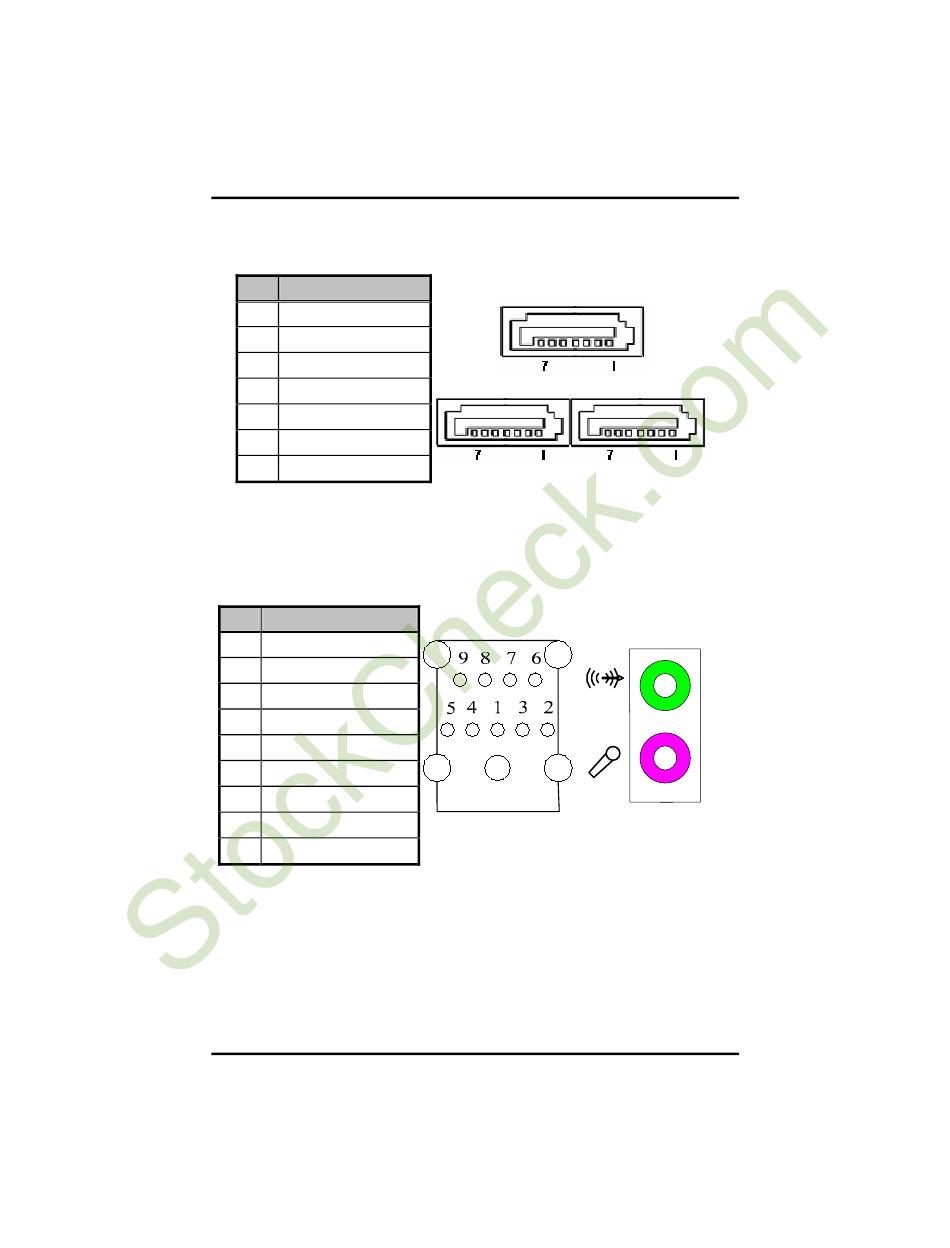

2.4.11 SATA Connectors: CN14, CN18

These SATA connectors are for high-speed SATA interface ports and
they can be connected to hard disk devices.

2.4.12 Audio Phone Jack Connector: CN15

After installing onboard audio driver, you may connect speaker to Line
Out jack, microphone to MIC in jack.
Pin
1
2
3
4
5
6
7
8
9
Jumpers and Connectors
Downloaded from StockCheck.com
SBC86840 Series All-In-One Mini ITX Board User's Manual
Pin Description
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
Description
Ground (GND)
MIC_IN_L
MIC_JD
Ground (GND)
MIC_IN_R
AUDIO_OUT_L
FRONT_JD
Ground (GND)
AUDIO_OUT_R
CN14
CN18
CN15
29
