4.0 Installation

• Before installing the fi replace, check it carefully for any
signs of damage.
• The product is heavy! Ask someone to help you when
positioning and installing it.
• Make sure that furniture and other household items
are at a safe distance from the fi replace to protect
them from drying out.
4.1 Prior to installation
1. The standard product comes in one package.
2. Remove the bag of screws from the stove.
3. When the product is unpacked, release from the pallet.
Make sure everything is in order.

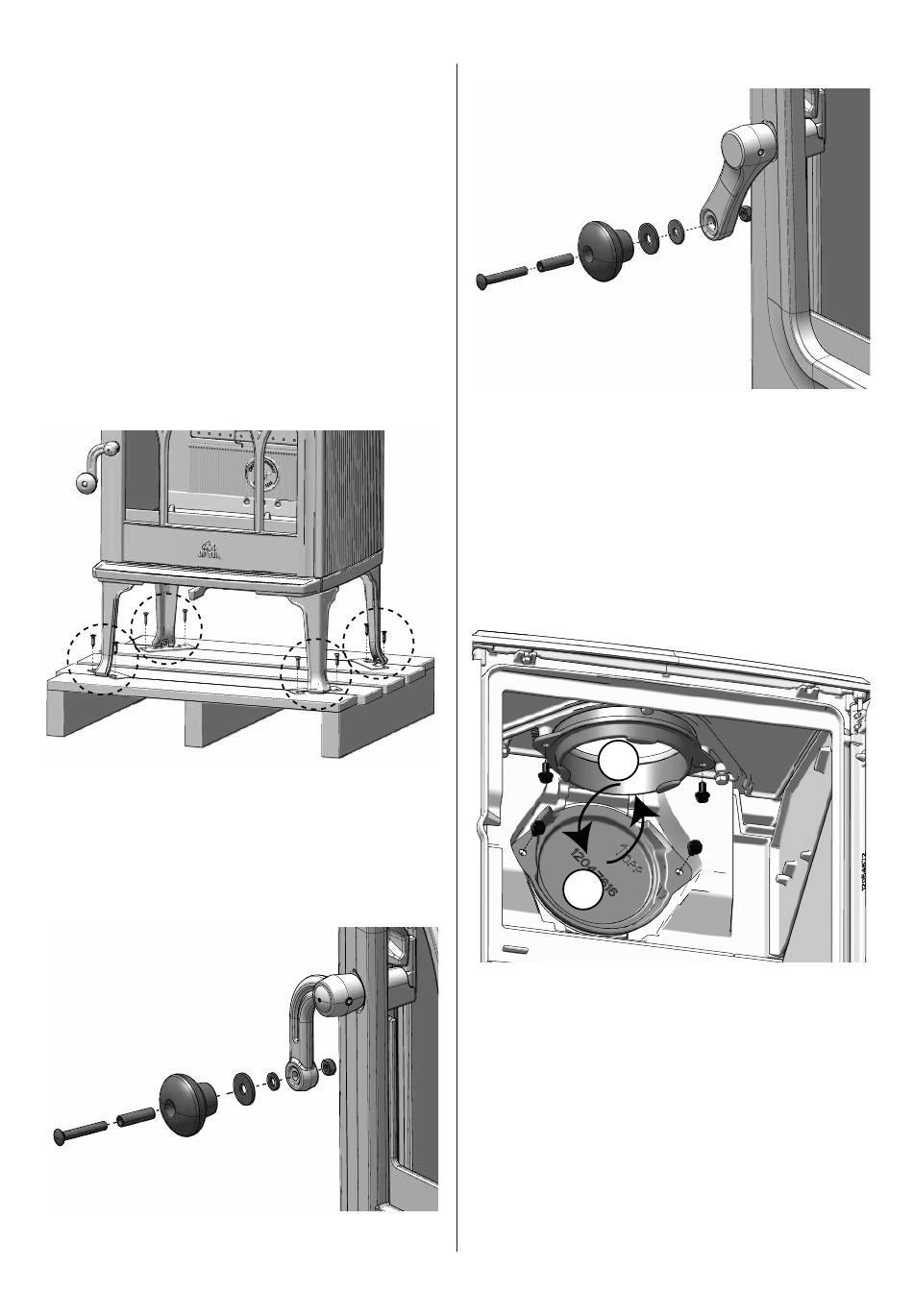

Fig. 2 Release from pallet
1. Remove the 8 transport screws
4.2 Installation
Fig. 3a Installation of the door handle (F 200 - classic)
1. Install the door knob onto the handle. The parts are in the
included screw bag.
Fig. 3b Installation of the door handle (F 205 - modern)
1. Screw the door knob onto the handle. The parts are in the
included screw bag.
Switch from top outlet to rear outlet
This product can be fi tted with a top outlet (as it comes from
the factory) or a rear outlet. If the rear outlet is to be used, the
following parts must fi rst be removed: the vault and baffl es
(see chapter 7). Then follow the procedure in Fig. 4a.
Fig. 4a Switch from top outlet to rear outlet
A
B
1. Replace the top outlet (A) with the rear cover (B).
2. Then the upper and lower exhaust defelector and the baffl e
plate are reassembled.
