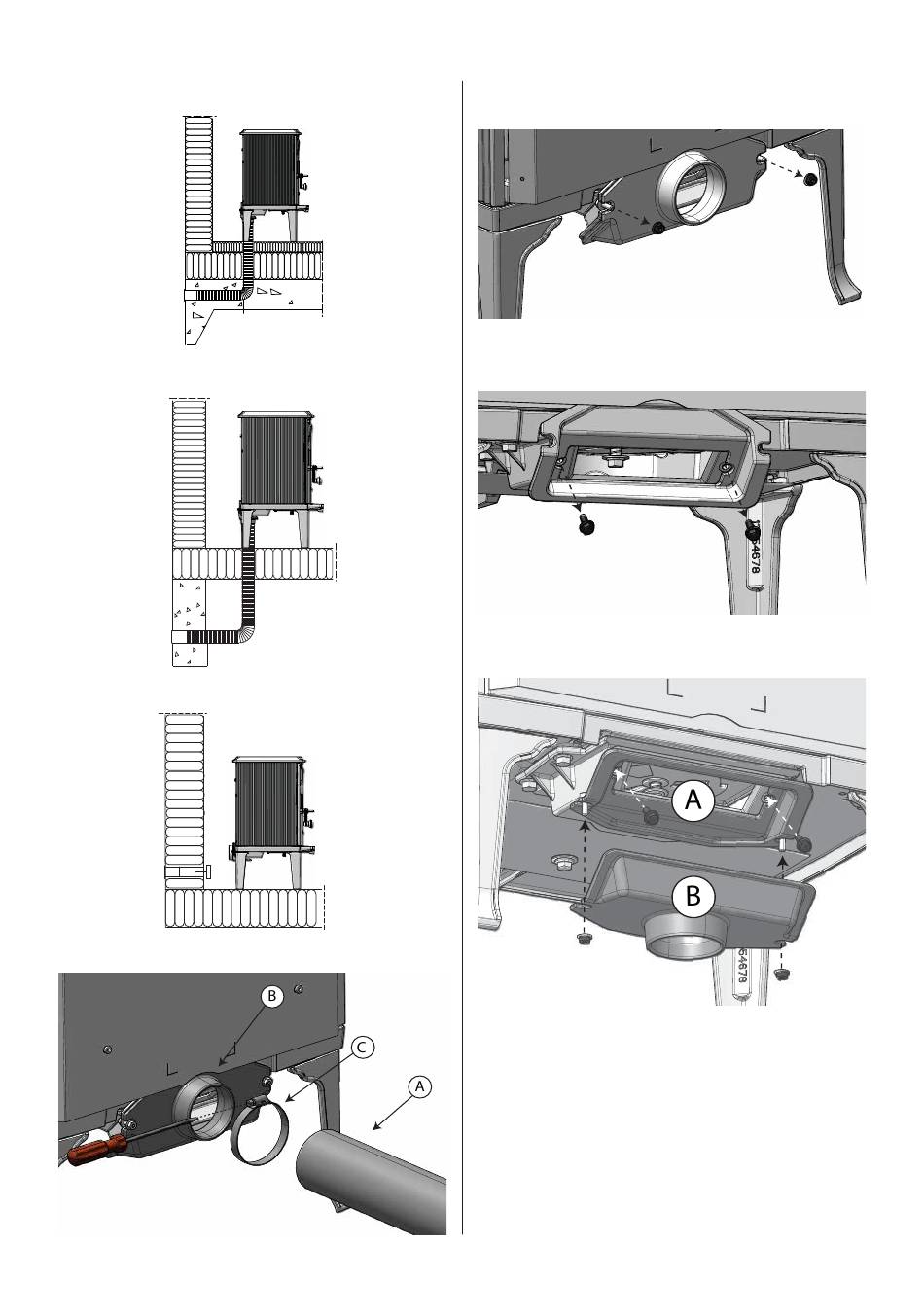

Fig. 6b Through the fl oor and ground plate
Fig. 6c Through the fl oor and basement
Fig. 6d indirecitly through an outside wall
Fig. 7 Instal external air supply
1. Place the outdoor air hose (A) on the outside of the outdoor
air adapter (B). This works in the same way for both wall
and fl oor penetration.
2. Tighten the hose clamp (C) with a screwdriver.
Fig. 8a Switch between rear outlet and bottom outlet for
outdoor air
1. Loosen the two screws that secure the outdoor air adapter.
Fig. 8b
2. Loosen the two screws that secure the adapter.
Fig. 8c
3. Rotate the outdoor air adapter (B) and the adapter (A) 180
degrees, and mount it on the underside of the oven, using
the same screws that were loosened in fi g. 8a + 8b.
