4.0 Installation

NB: Check that the fi replace is undamaged before installation
begins.
NB: The product is heavy! Ensure you have help when
positioning and installing it. Make sure the product does
not topple over.
NB: Do not place anything on the top plate of the stove as this
could cause permanent damage to the paint.
NB: Read the Installation and Operating instructions carefully
before installing the fi replace!
4.1 Prior to installation - Jøtul F 305
with legs
NB: There are two different legs. See the fi gure (fi g. 6) on
the bottom plate for correct placement.

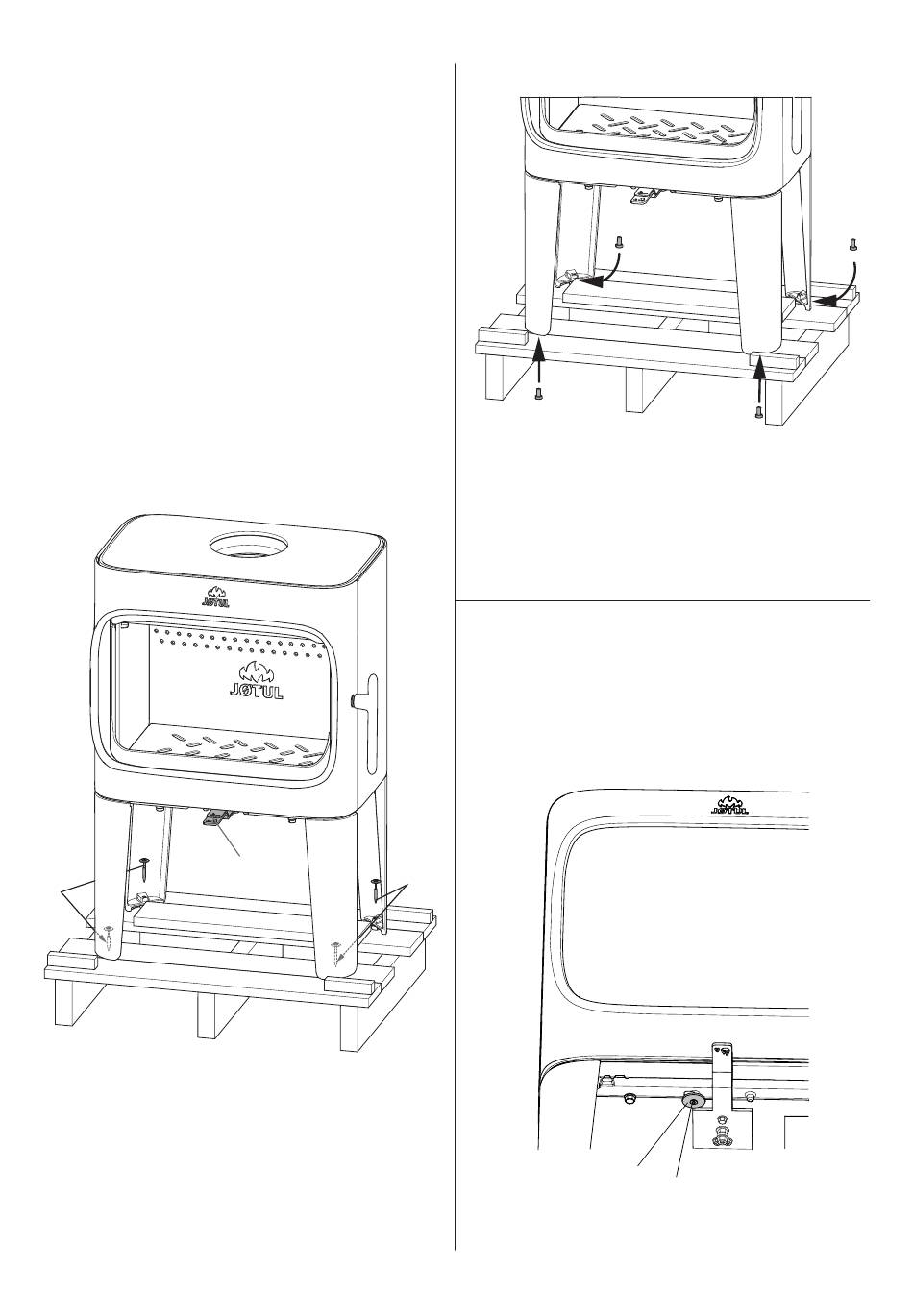

Fig. 3
A
1. Remove the four transport screws (A) that fasten the oven
to the wooden pallet.
2. Leave the stove standing on the transport pallet.
3. Remove the gloves from the ash pan.
4. Lift the baffl e, ash retainer, inner bottom and bag of screws
out of the burn chamber.
5. Check that the control handles (C) move freely.
8
C
A
Fig. 4
A
A
6. Install the height adjustment screws with plastic caps (A)
placed in the bag of screws.
7. Lift the oven from the pallet.
8. Set up the oven and adjust to the right height using the
height adjustment screws. NB: Take into account the
height of the fl oor plate. Mark on the wall if there has to
be a rear outlet for fl ue pipe and external air supply.
Requirement for UK
"The Jotul F 105 BB, LL, & SL stoves have been recommended
as suitable for use in smoke control areas when burning
wood logs and when fi tted with a mechanical stop to prevent
secondary air control closure beyond the 257mm 2 and the
tertiary air control closure beyond the 370mm 2 open positions."
Note! In order to achieve this see the instructions in fi g. 5.
Fig. 5
B
9. Unscrew the screw (A). Use the washer (B) from the bag
of screws and screw it onto the burnchamber with the
same screw.
A
A
A
