UST510-52B-FL Series user's Manual

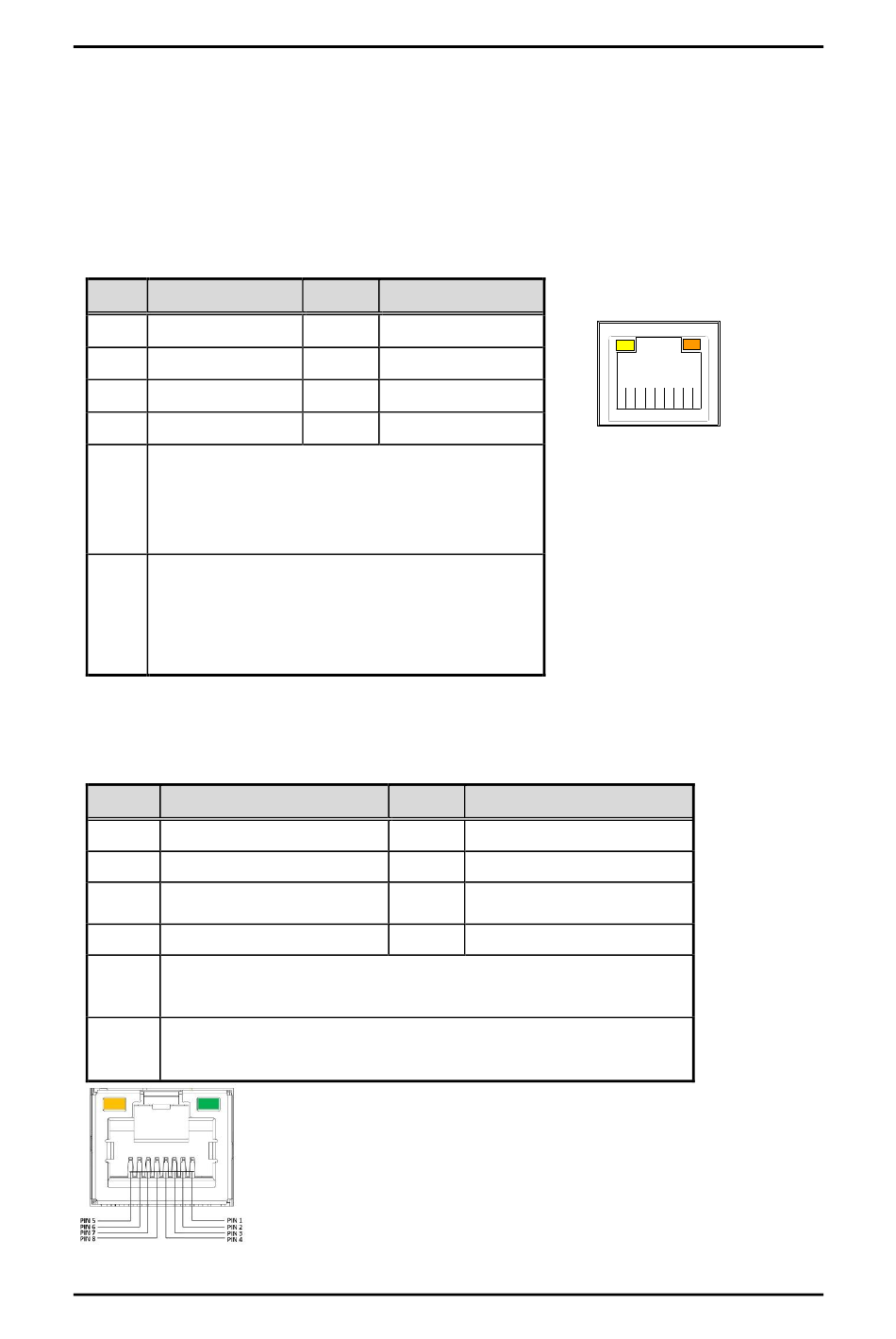

3.2.4 Ethernet & Power over Ethernet Connector
RJ45
The board has 9 RJ-45 connectors.
The front-side-panel LAN is designed based on the Intel i211 controller.
Front-side-panel LAN
Pins LAN Signal
L1 MDI0+
L2 MDI0-
L3 MDI1+
L4 MDI1-
Activity link LED (Yellow)
OFF: No link
A
Blinking: Link established; data activity
detected
Speed LED
OFF: 10Mbps data rate
B
Green: 100Mbps data rate
Orange: 1GMbps data rate
LAN1 to LAN8
while LAN2 to LAN9 are based on the Intel i211 with PoE support on the rear side panel.
Pins LAN Signal
1 MDI0+ (Passive V
2 MDI0- (Passive V
3 MDI1+ (Negative V
4 MDI1- (Passive V
Activity link LED (Orange)
ACT OFF: No link
Blinking: Link established; data activity detected
PoE LED
Green: PoE power activity LED
PoE
Blinking: over power budget
24
Pins LAN Signal
L5 MDI2+
L6 MDI2-
L7 MDI3+
L8 MDI3-
Pins LAN Signal
+) 5 MDI2+ (Passive V
PSE
+) 6 MDI2- (Negative V
PSE
7
-) MDI3+ (Negative V
PSE
+) 8 MDI3- (Negative V
PSE
A B
L8 L7 L6 L5 L4 L3 L2 L1
+)
PSE
-)
PSE
-)
PSE
-)
PSE
