43 GND
45 No use
47 No use
49 No use
51 No use

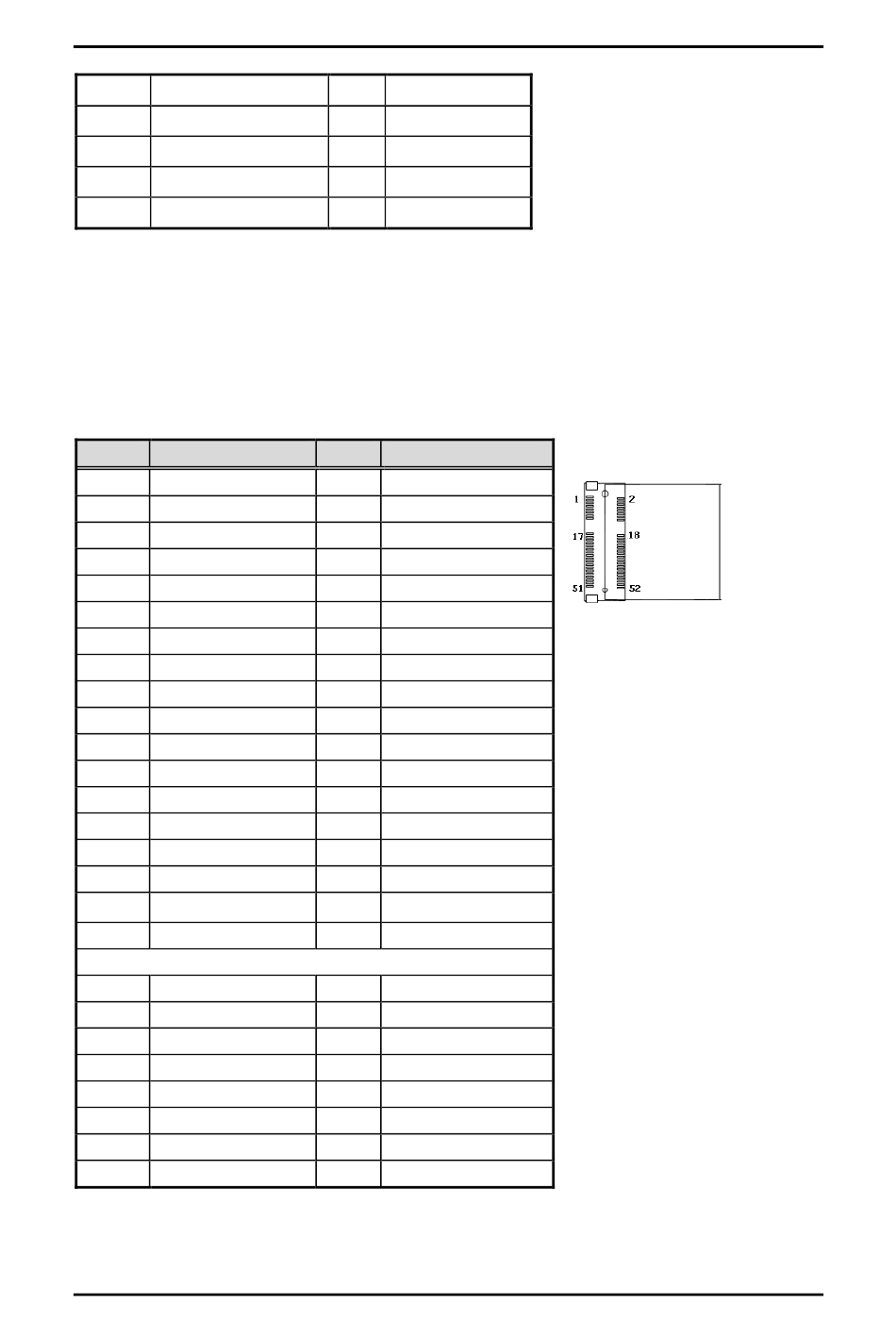

Half-Size (CN17)
CN17 applies to USB2.0 and SATA (mSATA) signals and complies with PCI-Express Mini
Card Spec. V1.2. Thus, users can install an mSATA card into this slot.
Pins Signals
51 NC
49 NC
47 NC
45 NC
43 GND
41 +3.3Vaux
39 +3.3Vaux
37 GND
35 GND
33 mSATA_Tp
31 mSATA_Tn
29 GND
27 GND
25 mSATA_Rn
23 mSATA_Rp
21 GND
19 NC
17 NC
15 GND
13 REFCLK+
11 REFCLK-
9 GND
7 NC
5 NC
3 NC
1 WAKE#
Button & Connector Settings
44 No use
46 No use
48 +1.5V
50 GND
52 +3.3VSB
Pins Signals
52 +3.3Vaux
50 GND
48 +1.5V
46 NC
44 NC
42 NC
40 GND
38 USB_D+
36 USB_D-
34 GND
32 SMB_DATA
30 SMB_CLK
28 +1.5V
26 GND
24 +3.3Vaux
22 PERST#
20 W_DISABLE#
18 GND
Mechanical Key
16 NC
14 NC
12 NC
10 NC
8 NC
6 1.5V
4 GND
2 3.3Vaux
