2.4 Installing 2.5" SATA Device

2.4.1

Installing 2.5" SATA Device

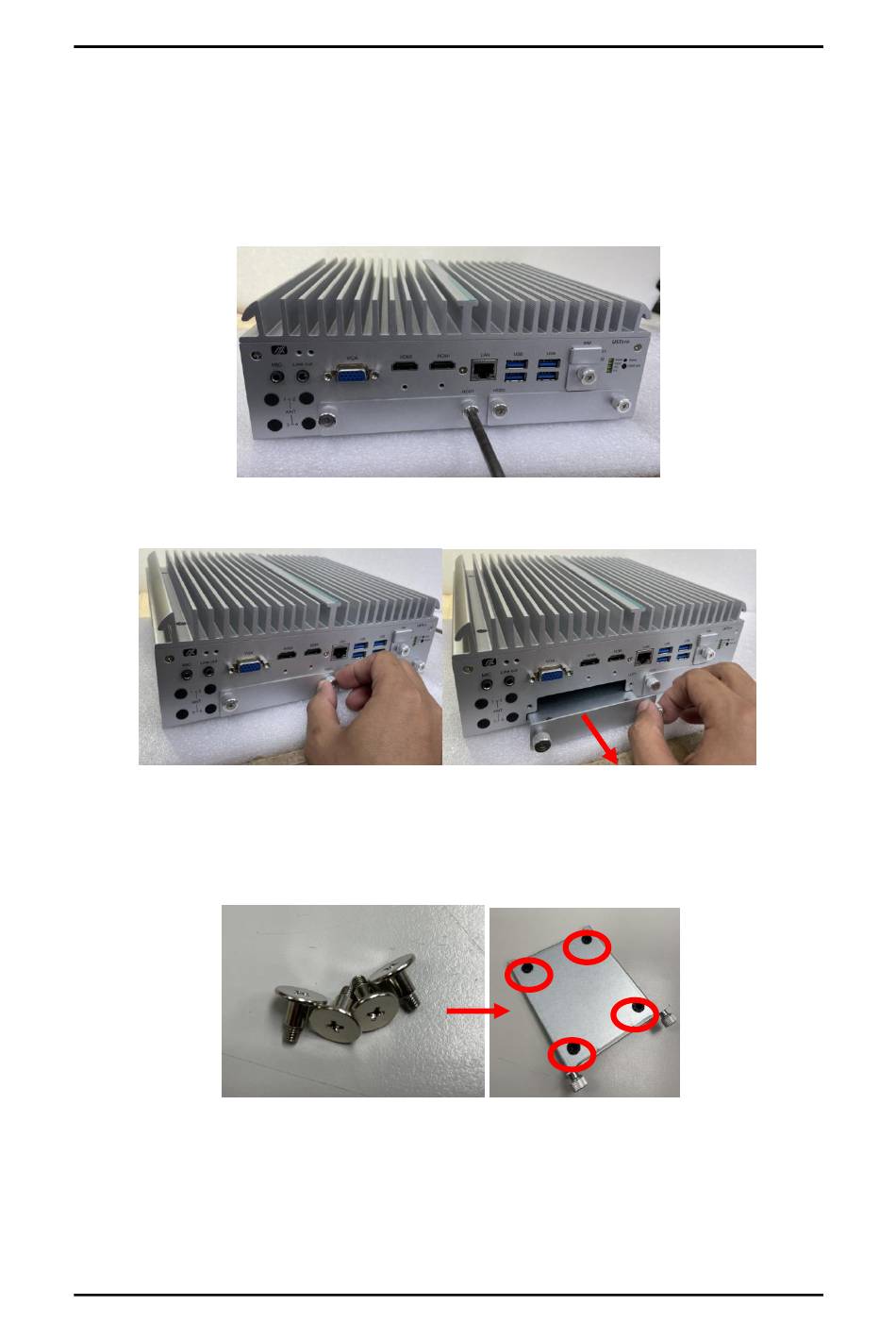

Step 1 Turn off the system and unplug the power cord.

Step 2 Loosen all of the SATA drive tray's screws.

Step 3 Extract the SATA drive tray. One drive tray can be used to install two

SSD/HDD drives.

Step 4 Turn the SATA drive tray upside down to install SSD/HDD and fasten

the four screws to secure the SSD/HDD firmly to the SATA drive tray.

Step 5 Slide the secured SATA drive tray back into the system and fasten the

screws firmly to complete the installation.
