UST510-52B-FL Series user's Manual

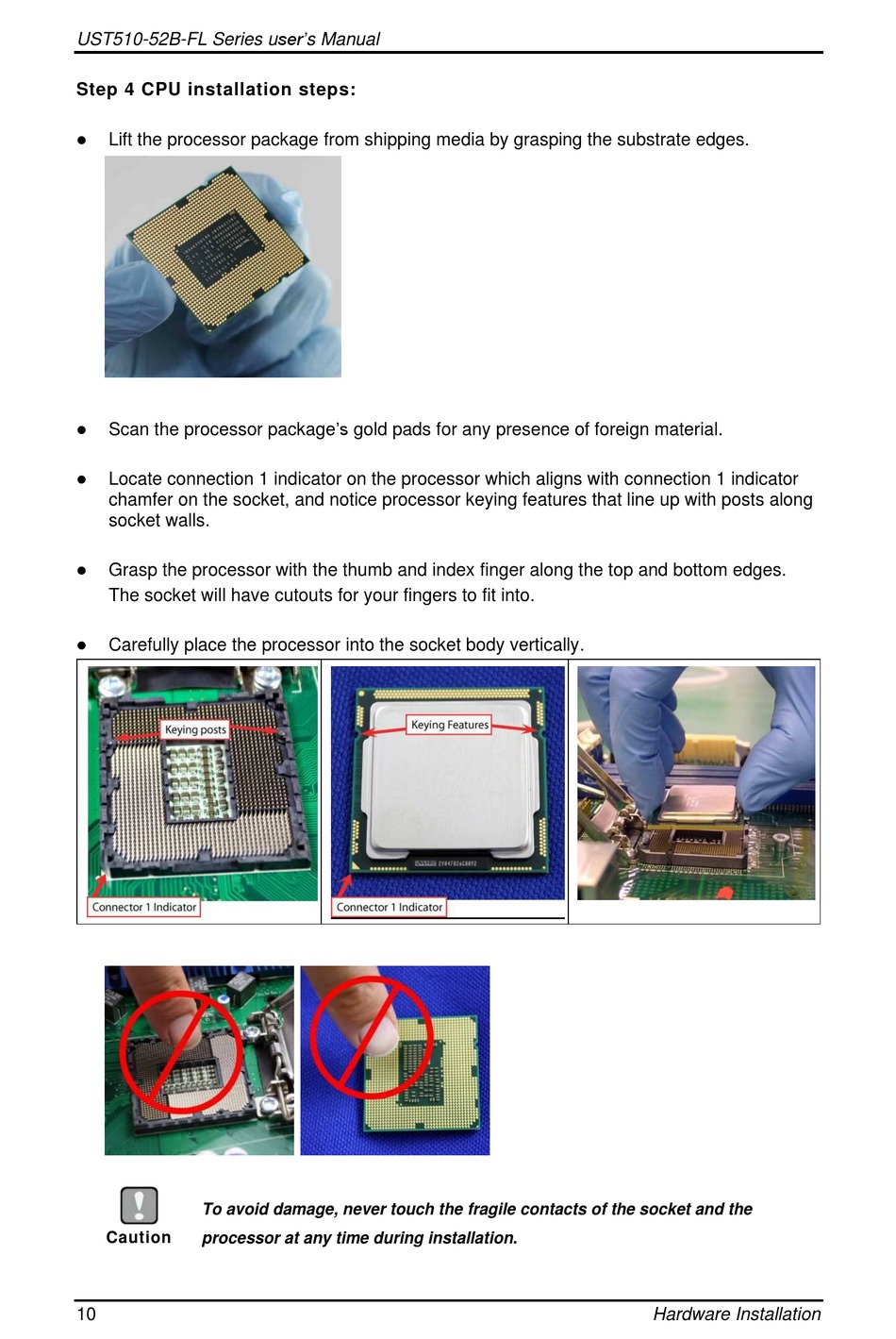

Step 4 CPU installation steps:
⚫ Lift the processor package from shipping media by grasping the substrate edges.
⚫ Scan the processor package's gold pads for any presence of foreign material.
⚫ Locate connection 1 indicator on the processor which aligns with connection 1 indicator
chamfer on the socket, and notice processor keying features that line up with posts along
socket walls.
⚫
Grasp the processor with the thumb and index finger along the top and bottom edges.
The socket will have cutouts for your fingers to fit into.
⚫ Carefully place the processor into the socket body vertically.
To avoid damage, never touch the fragile contacts of the socket and the
Caution processor at any time during installation.
10 Hardware Installation
