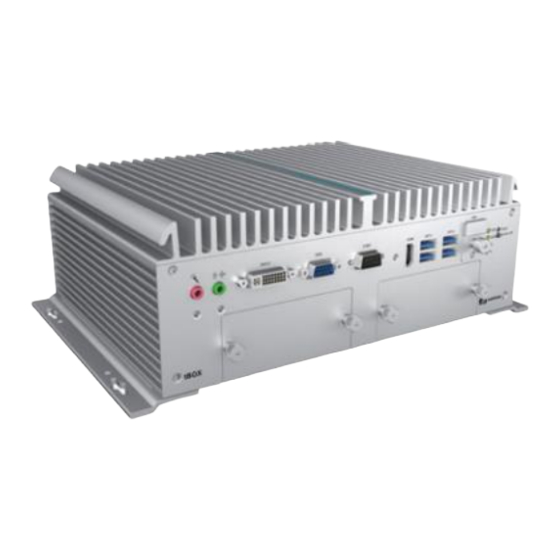

AXIOMTEK UST500-517-FL Series Quick Installation Manual

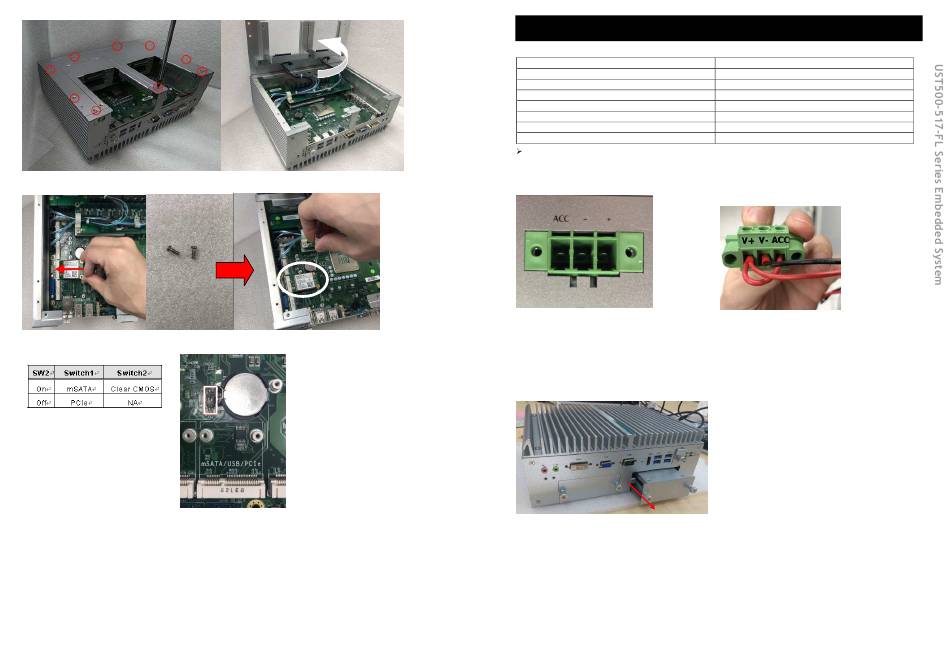

Step 2 Loosen all screws and open the cover carefully.
Step 3 Install mPCIe cards and secure the cover back to original Fasten position to complete the
mPCIe card installation.
Step 4 Fasten all screws tight and slide the secured SATA drive back to complete the installation.
Note: NO.2 half mini card slot can use SW 2 select mSATA or PCIe function. (Default mSATA mode)
4
Packing List
System Unit x 1
Quick Installation Guide x 1
HDD screw x 16
Audio Cable Fixed x1
HDMI Cable Fixed x1
Cable tie x3
Cable Fixed screw x3
Footpad x4
Power On
1. Power Connector:
+
-
ACC : Accessory Power In
Installation of Hard Disk Drive
Step 1 Turn off the system and unplug the power adaptor.
Step 2 Extract the SATA drive. Each drive can install 2 storages.
94174500000E 94174500000E
©Copyright 2018 Axiomtek Co., Ltd. ©Copyright 2018 Axiomtek Co., Ltd.
Version A1 Aug. 2018 Version A1 Aug. 2018
Printed in Taiwan Printed in Taiwan
UST500-517-FL Quick Installation Guide
DO NOT apply power to the board if there is any damaged component.
: DC power in V+
: DC power in V-
CD x 1 (for Window10 x64 Driver)
CPU Grease x1
Terminal Block x1
Wall mount kit x1
Wall mount kit screw x4
DIO Connector x1
Cable tie x3 Mini Card Slot screw x8
2. Quick Power On Function:
Power On: ACC connects to V+.
1
