UST510-52B-FL Series user's Manual

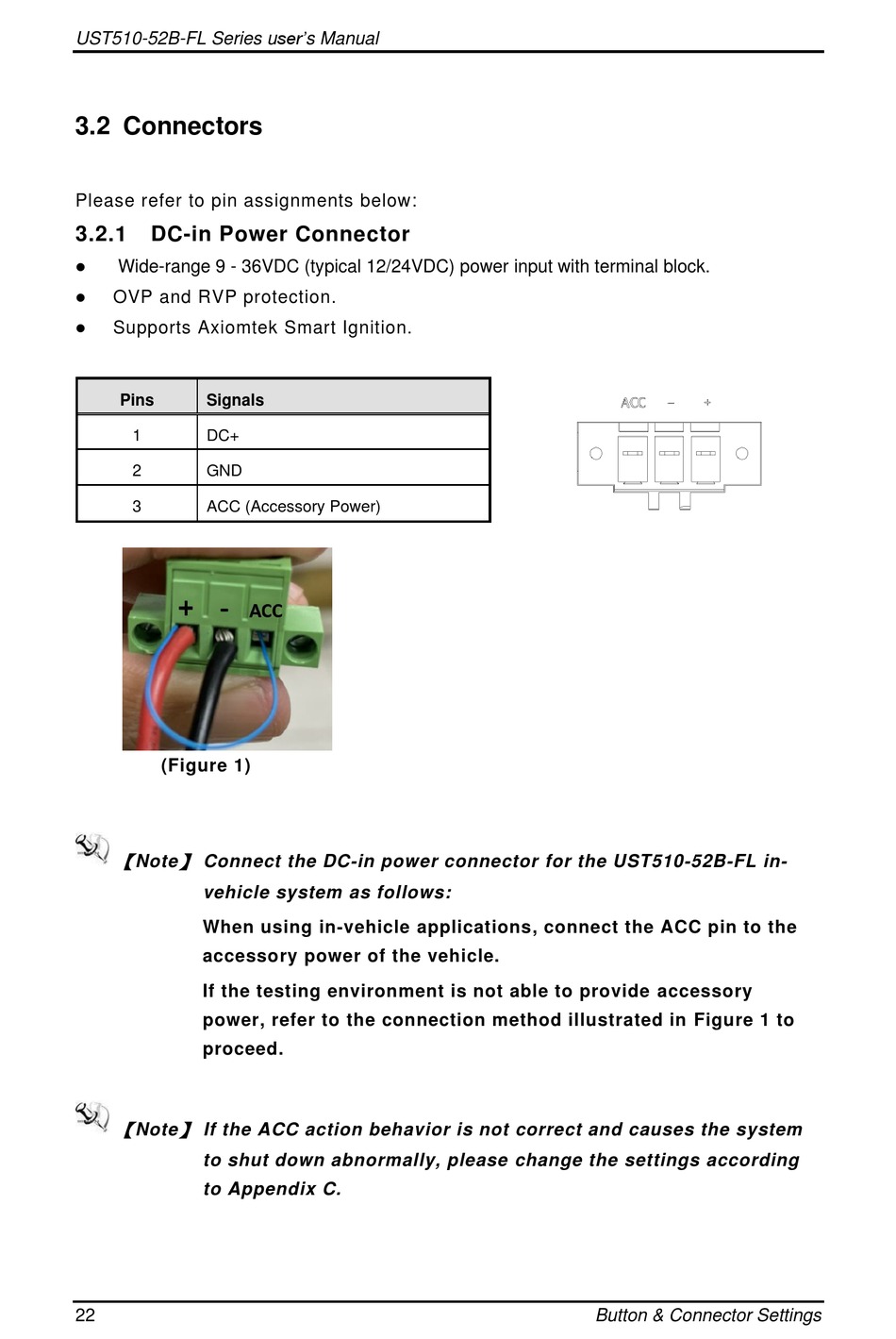

3.2 Connectors

Please refer to pin assignments below:
3.2.1

DC-in Power Connector

⚫ Wide-range 9 - 36VDC (typical 12/24VDC) power input with terminal block.
⚫ OVP and RVP protection.
⚫ Supports Axiomtek Smart Ignition.
Pins Signals
1 DC+
2 GND
3 ACC (Accessory Power)
(Figure 1)
【 】
Note Connect the DC-in power connector for the UST510-52B-FL in-
vehicle system as follows:
When using in-vehicle applications, connect the ACC pin to the
accessory power of the vehicle.
If the testing environment is not able to provide accessory
power, refer to the connection method illustrated in Figure 1 to
proceed.
【 】
Note If the ACC action behavior is not correct and causes the system
to shut down abnormally, please change the settings according
to Appendix C.
22 Button & Connector Settings
