2.3 Installing thermal pads

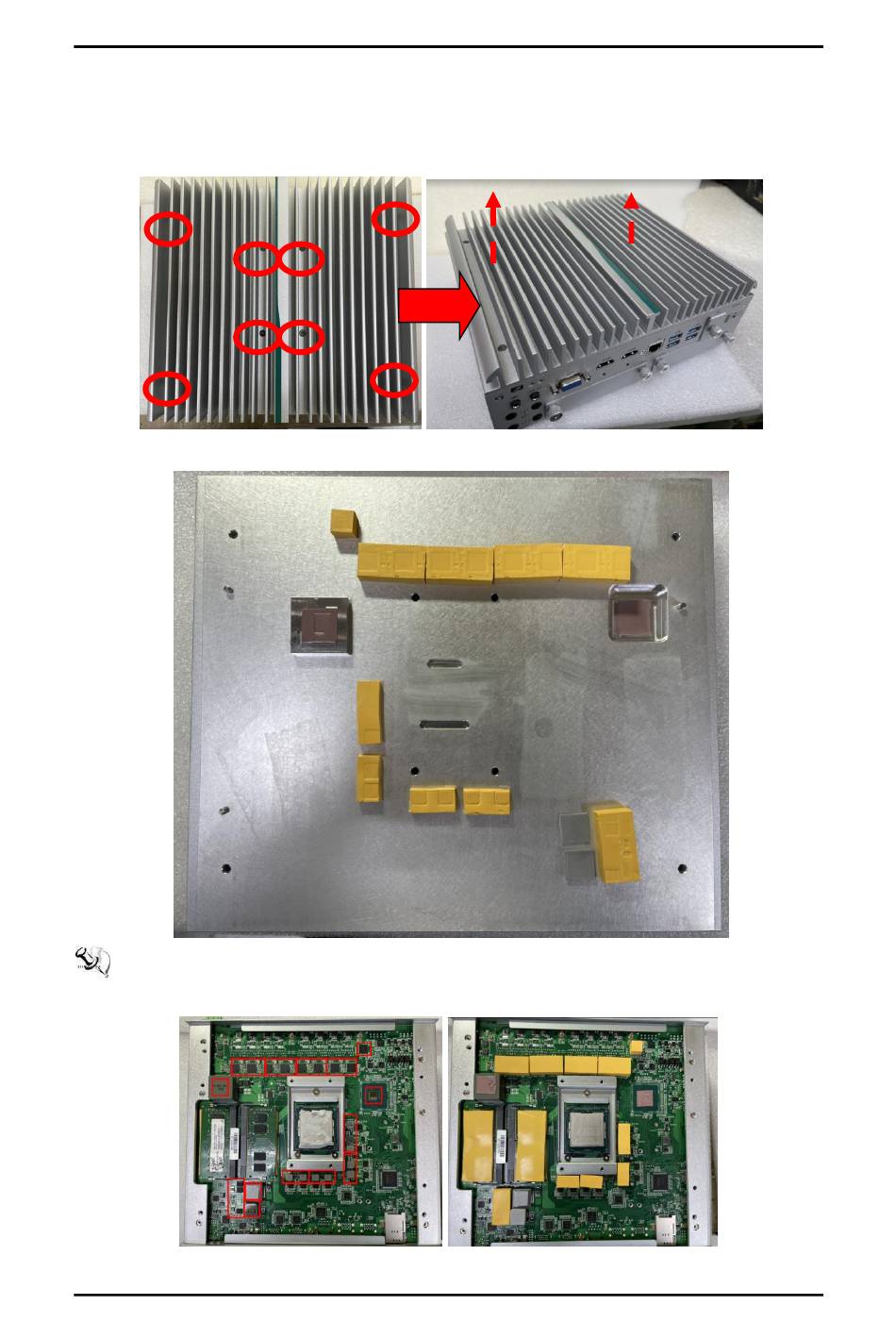

Step 1 Turn off the system and unplug the power cord.

Step 2 Loosen all screws to remove the top cover.

Step 3 Put the thermal pads on the secant locations.

【Note】

It is suggested that the thermal pads be put on the motherboard's

corresponding positions as shown.
