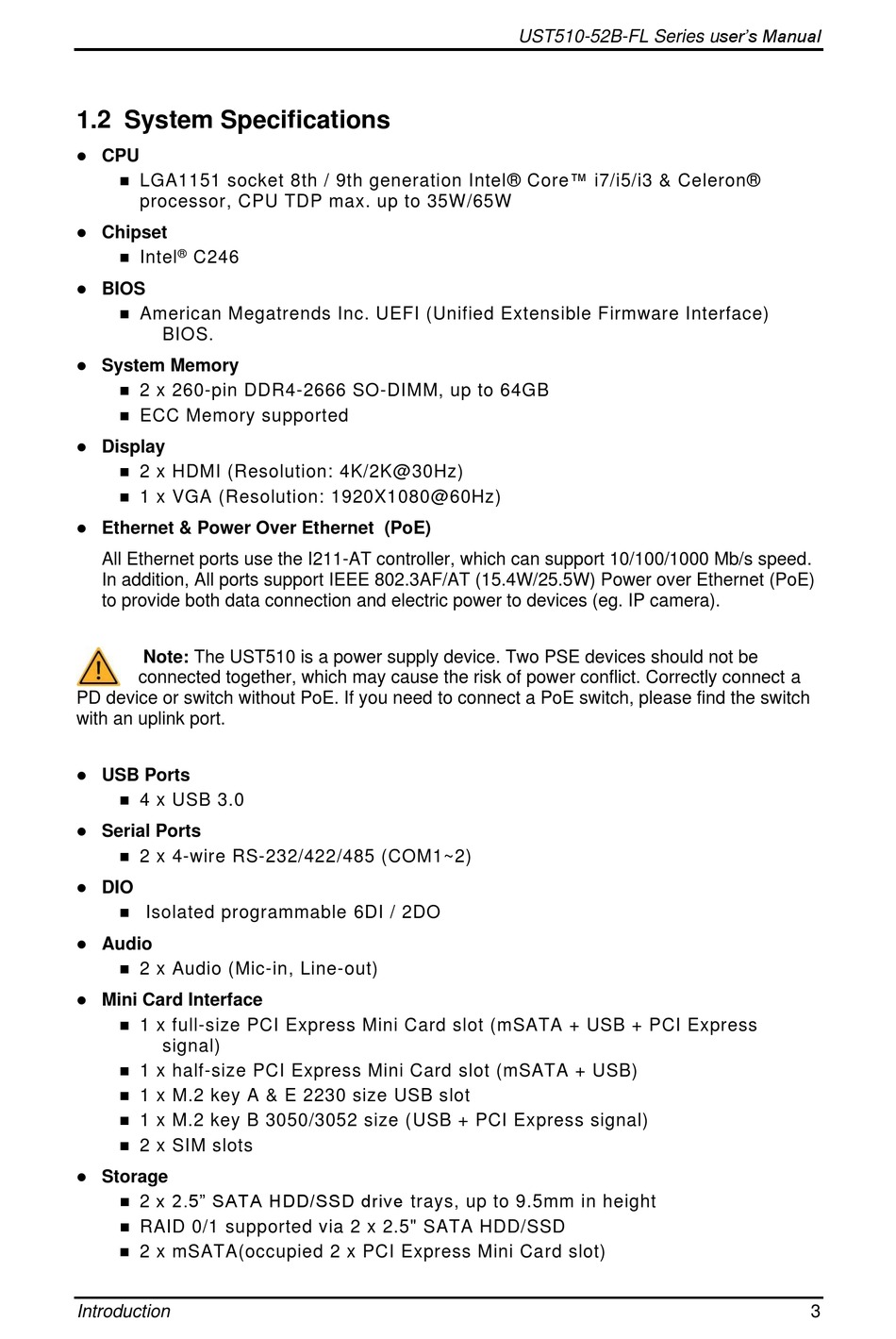

1.2 System Specifications

⚫ CPU
◼ LGA1151 socket 8th / 9th generation Intel® Core™ i7/i5/i3 & Celeron®
processor, CPU TDP max. up to 35W/65W
⚫
Chipset
®
◼ Intel C246
⚫ BIOS
◼ American Megatrends Inc. UEFI (Unified Extensible Firmware Interface)
BIOS.
⚫ System Memory
◼ 2 x 260-pin DDR4-2666 SO-DIMM, up to 64GB
◼
ECC Memory supported
⚫ Display
◼ 2 x HDMI (Resolution: 4K/2K@30Hz)
◼ 1 x VGA (Resolution: 1920X1080@60Hz)
⚫ Ethernet & Power Over Ethernet (PoE)
All Ethernet ports use the I211-AT controller, which can support 10/100/1000 Mb/s speed.
In addition, All ports support IEEE 802.3AF/AT (15.4W/25.5W) Power over Ethernet (PoE)
to provide both data connection and electric power to devices (eg. IP camera).
Note: The UST510 is a power supply device. Two PSE devices should not be
connected together, which may cause the risk of power conflict. Correctly connect a
PD device or switch without PoE. If you need to connect a PoE switch, please find the switch
with an uplink port.
⚫ USB Ports
◼ 4 x USB 3.0
⚫ Serial Ports
◼ 2 x 4-wire RS-232/422/485 (COM1~2)
⚫ DIO
◼
Isolated programmable 6DI / 2DO
⚫ Audio
◼ 2 x Audio (Mic-in, Line-out)
⚫ Mini Card Interface
◼ 1 x full-size PCI Express Mini Card slot (mSATA + USB + PCI Express
signal)
◼ 1 x half-size PCI Express Mini Card slot (mSATA + USB)
◼
1 x M.2 key A & E 2230 size USB slot
◼ 1 x M.2 key B 3050/3052 size (USB + PCI Express signal)
◼ 2 x SIM slots
⚫
Storage
2 x 2.5" SATA HDD/SSD drive trays, up to 9.5mm in height
◼
◼ RAID 0/1 supported via 2 x 2.5" SATA HDD/SSD
◼ 2 x mSATA(occupied 2 x PCI Express Mini Card slot)
