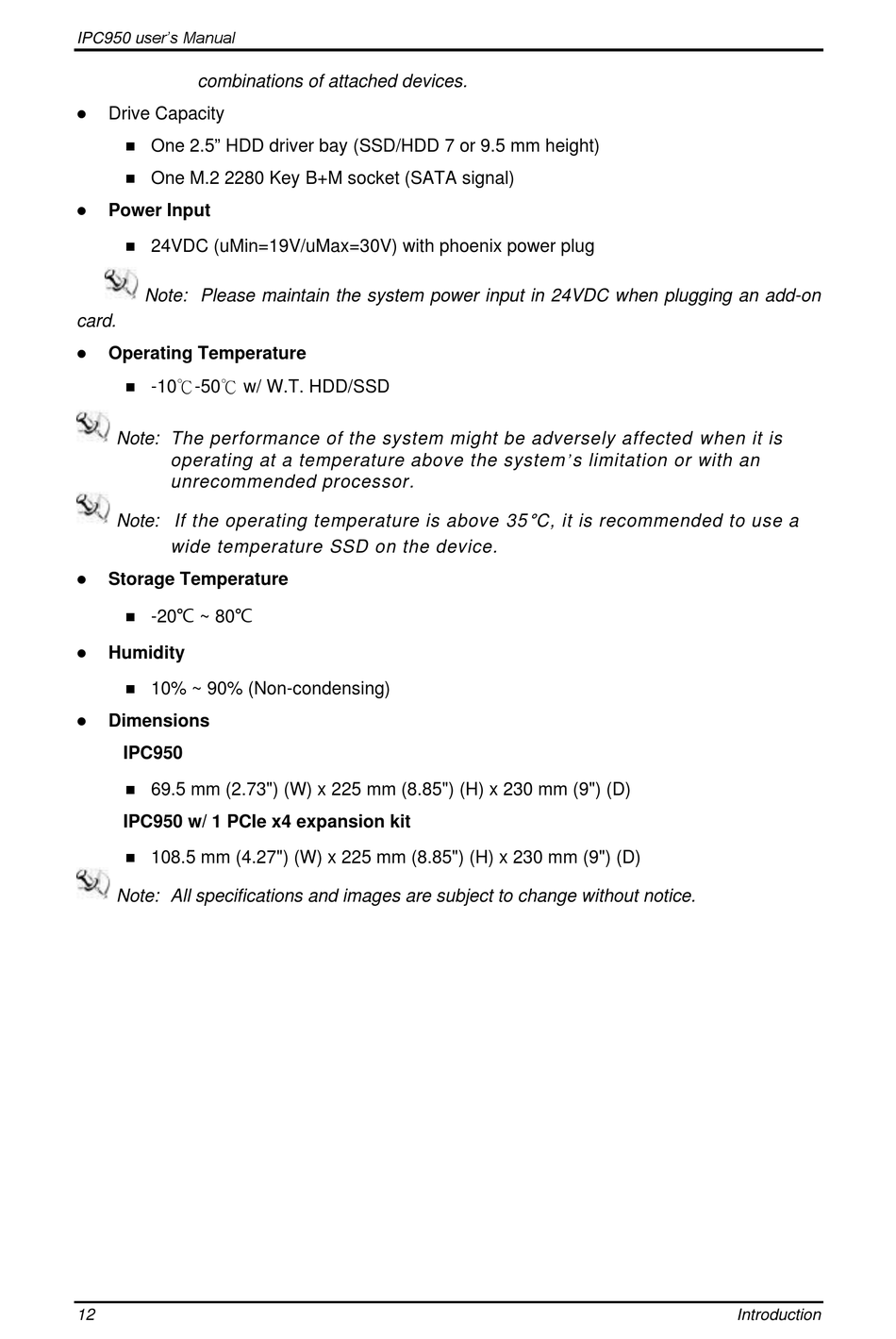

AXIOMTEK IPC950 User Manual page 12

IPC950 user's Manual
combinations of attached devices.
⚫ Drive Capacity
◼ One 2.5" HDD driver bay (SSD/HDD 7 or 9.5 mm height)
◼ One M.2 2280 Key B+M socket (SATA signal)
⚫ Power Input
◼ 24VDC (uMin=19V/uMax=30V) with phoenix power plug
Note: Please maintain the system power input in 24VDC when plugging an add-on
card.
⚫ Operating Temperature
◼ -10℃-50℃ w/ W.T. HDD/SSD
Note: The performance of the system might be adversely affected when it is
operating at a temperature above the system's limitation or with an
unrecommended processor.
Note: If the operating temperature is above 35
wide temperature SSD on the device.
⚫ Storage Temperature
◼ -20℃ ~ 80℃
⚫ Humidity
◼ 10% ~ 90% (Non-condensing)
⚫ Dimensions
IPC950
◼ 69.5 mm (2.73") (W) x 225 mm (8.85") (H) x 230 mm (9") (D)
IPC950 w/ 1 PCIe x4 expansion kit
◼ 108.5 mm (4.27") (W) x 225 mm (8.85") (H) x 230 mm (9") (D)
Note: All specifications and images are subject to change without notice.
12
°
C, it is recommended to use a
