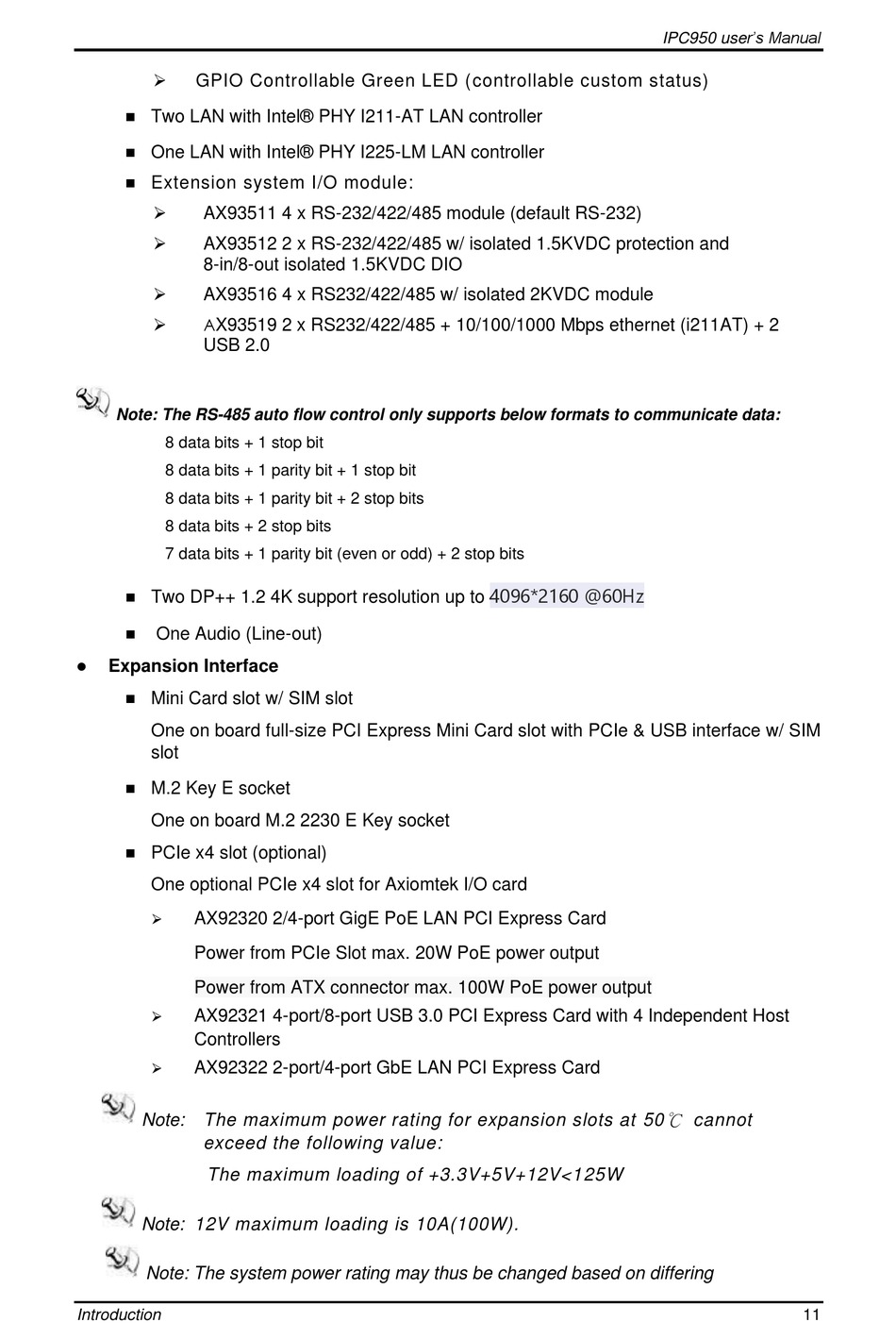

AXIOMTEK IPC950 User Manual page 11

➢
GPIO Controllable Green LED (controllable custom status)
◼ Two LAN with Intel® PHY I211-AT LAN controller
◼ One LAN with Intel® PHY I225-LM LAN controller
◼ Extension system I/O module:
➢
AX93511 4 x RS-232/422/485 module (default RS-232)
➢
AX93512 2 x RS-232/422/485 w/ isolated 1.5KVDC protection and
8-in/8-out isolated 1.5KVDC DIO
➢
AX93516 4 x RS232/422/485 w/ isolated 2KVDC module
➢ A
X93519 2 x RS232/422/485 + 10/100/1000 Mbps ethernet (i211AT) + 2
USB 2.0
Note: The RS-485 auto flow control only supports below formats to communicate data:
8 data bits + 1 stop bit
8 data bits + 1 parity bit + 1 stop bit
8 data bits + 1 parity bit + 2 stop bits
8 data bits + 2 stop bits
7 data bits + 1 parity bit (even or odd) + 2 stop bits
◼ Two DP++ 1.2 4K support resolution up to
◼ One Audio (Line-out)
⚫
Expansion Interface
◼ Mini Card slot w/ SIM slot
One on board full-size PCI Express Mini Card slot with PCIe & USB interface w/ SIM
slot
◼ M.2 Key E socket
One on board M.2 2230 E Key socket
◼ PCIe x4 slot (optional)
One optional PCIe x4 slot for Axiomtek I/O card
➢ AX92320 2/4-port GigE PoE LAN PCI Express Card
Power from PCIe Slot max. 20W PoE power output
Power from ATX connector max. 100W PoE power output
➢ AX92321 4-port/8-port USB 3.0 PCI Express Card with 4 Independent Host
Controllers
➢ AX92322 2-port/4-port GbE LAN PCI Express Card
Note: The maximum power rating for expansion slots at 50
exceed the following value:
The maximum loading of +3.3V+5V+12V<125W
Note: 12V maximum loading is 10A(100W).
Note: The system power rating may thus be changed based on differing
Introduction
4096*2160 @60Hz
