Installing the expansion box kit

The IPC50 provides a PCIe x4 slot expansion box kit for further expansion use. The procedure
of installing the expansion box kit into the system is instructed below.

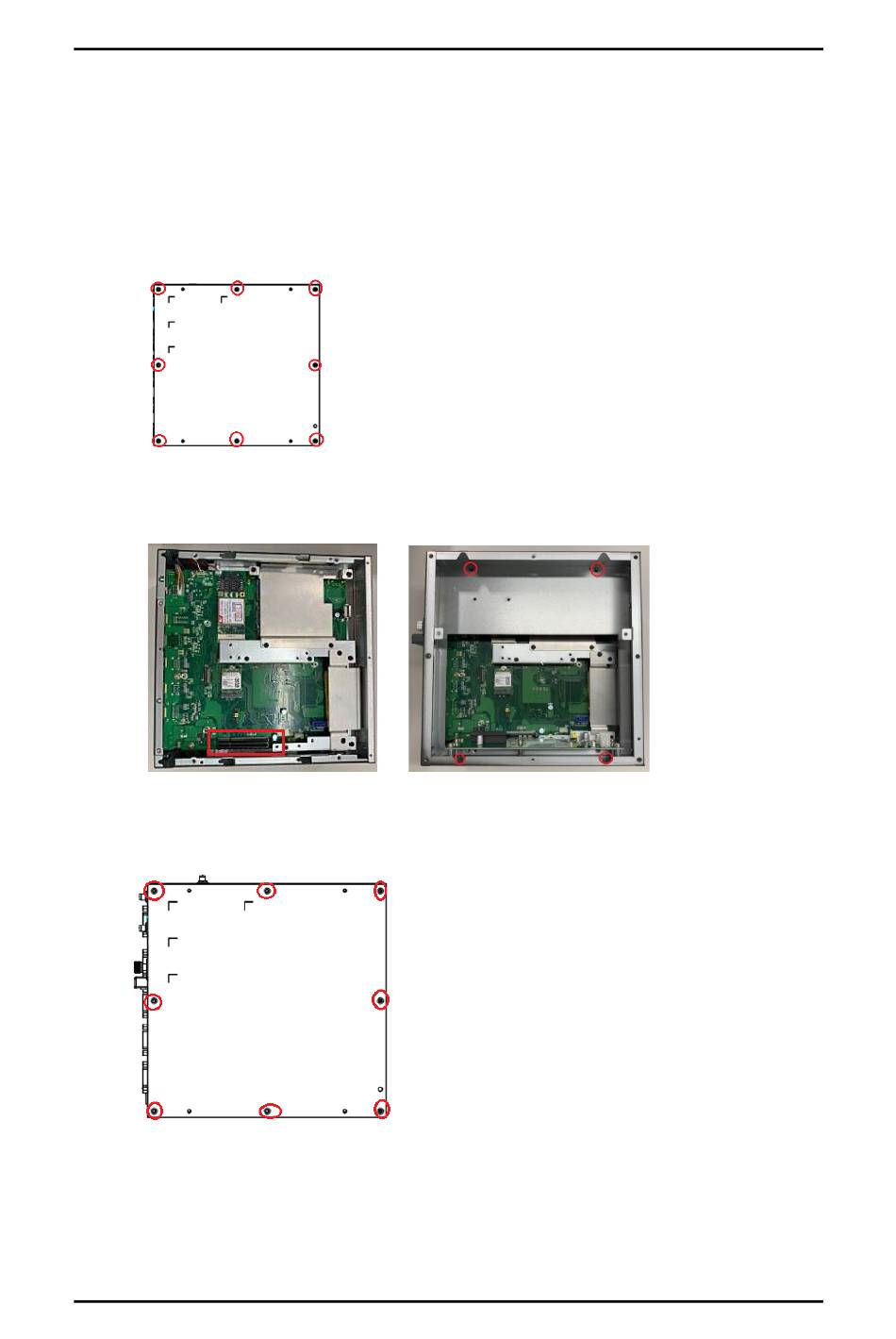

Step 1 Loosen eight screws to remove the cover from the EIO110 expansion box kit.
Step 2 Find the slot on the main board. Align the EIO110 with the slot, press the riser
into the slot until it is firmly seated, and then screw the expansion box kit.
Step 3 After installing the expansion box kit, close the cover back to the chassis and fasten
the screw. Installation is complete.
