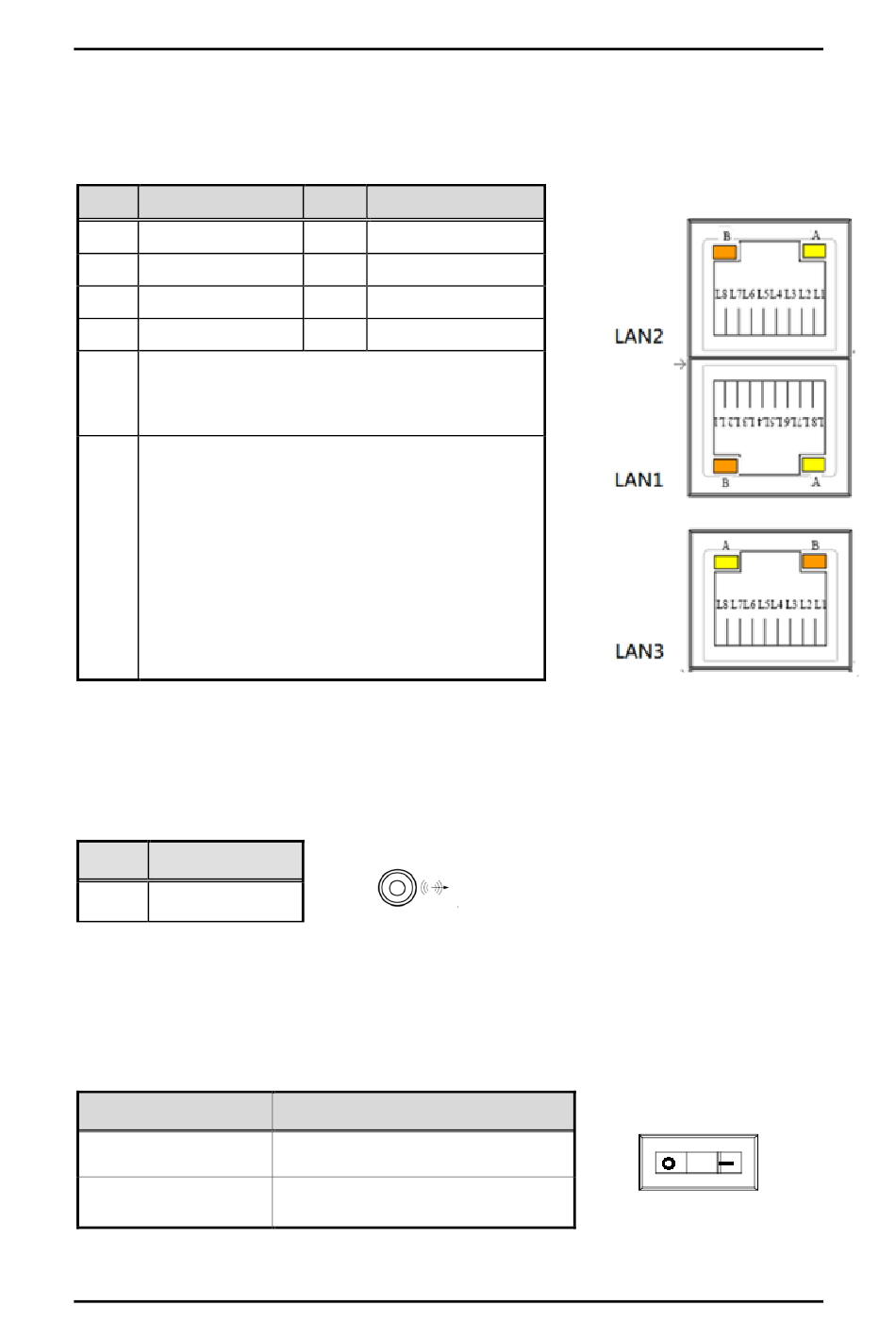

Ethernet Connector (LAN1~LAN3)

The system supports three Ethernet ports (CN3, CN4): two RJ45 connectors with Intel® i211-
AT controller support 10/100/1000 Mbps, while the other RJ45 connector with Intel® i225-LM
supports AMT and speed up to 2500Mbps, which is located at the lower side of CN3.
Pin LAN Signal
L1 MDI0+
L2 MDI0-
L3 MDI1+
L4 MDI1-
Activity link LED(Yellow)
A
OFF: No link
Blinking: Link established; data activity detected
Speed LED
LAN1: Intel® i225-LM
OFF: 10/100Mbps data rate
Green: 1Gbps data rate
Orange: 2.5Gbps data rate
B
LAN2/LAN3: Intel® i211-AT
OFF: 10Mbps data rate
Green: 100Mbps data rate
Orange: 1Gbps data rate
1.8.6

Audio Connector

The IPC950 features one phone jack connect or that supports stereo Line Out.
Pin Signal
1 Line Out
1.8.7

ATX Power On/OFF Button

The system has one ATX power button on the I/O side that allows users to control the
IPC950's power on/off state.
Function
On
Off
Introduction
Pin LAN Signal
L5 MDI2+
L6 MDI2-
L7 MDI3+
L8 MDI3-
Description
Turn on/off system
Keep system status
