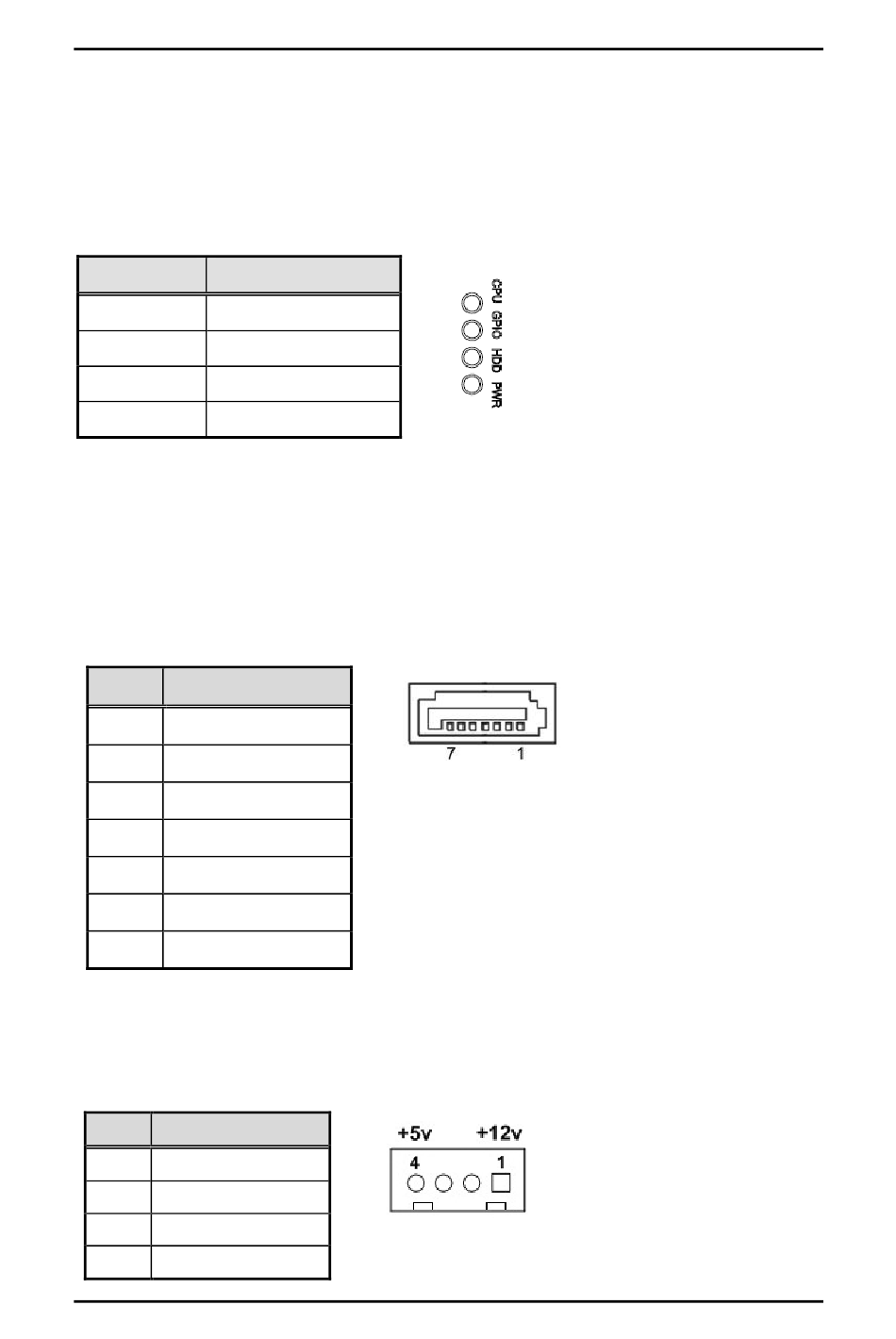

1.8.11 Front Panel LED
The IPC950 implements four LEDs which indicate system status. Solid green on PWR
LED indicates the system is on. Flashing green on HDD LED indicates stora ge activity.
Users can program customized system status indication with programmable LED. The
system will flash orange while PROCHOT# is asserted, and solid red while
THERMTRIP# is asserted on CPU LED.
Pin
Signal
1
CPU LED
2
Programmable LED
3
HDD LED
4
PWR LED
1.8.12 SATA Connector
The IPC950 has one Serial Advanced Technology Attachment (Serial ATA or SATA) 3.0 port
(CN11) with 6Gb/s performance. This interface is for connecting to devices such as hard disk
drives.
Pin
Signal
1
GND
2
SATA_TX+
3
SATA_TX-
4
GND
5
SATA_RX-
6
SATA_RX+
7
GND
1.8.13 SATA Power Connector
The SATA power connector (CN12) provides +12V and +5V power for 2.5" HDD or SSD
devices.
Pin
Signal
1
+12V level
2
GND
3
GND
4
+5V level
Introduction
IPC950 user's Manual
25
