SD card slot pin assignment:
Signal Name
SD_CLK
SD_CD
SD_D0
SD_D1
SD_D2
SD_D3
SD_CMD

Part 3.12: MIPI Camera Interface

The AXU7EV carrier board includes a MIPI camera interface, which can be
used to connect with the ALINX Brand MIPI OV5640 camera module AN5641.
MIPI interface 15PIN FPC connector, 2 LANE data and 1 pair of clock,
connected to the differential IO pin of BANK65. other control signals are
connected to the IO of BANK87.

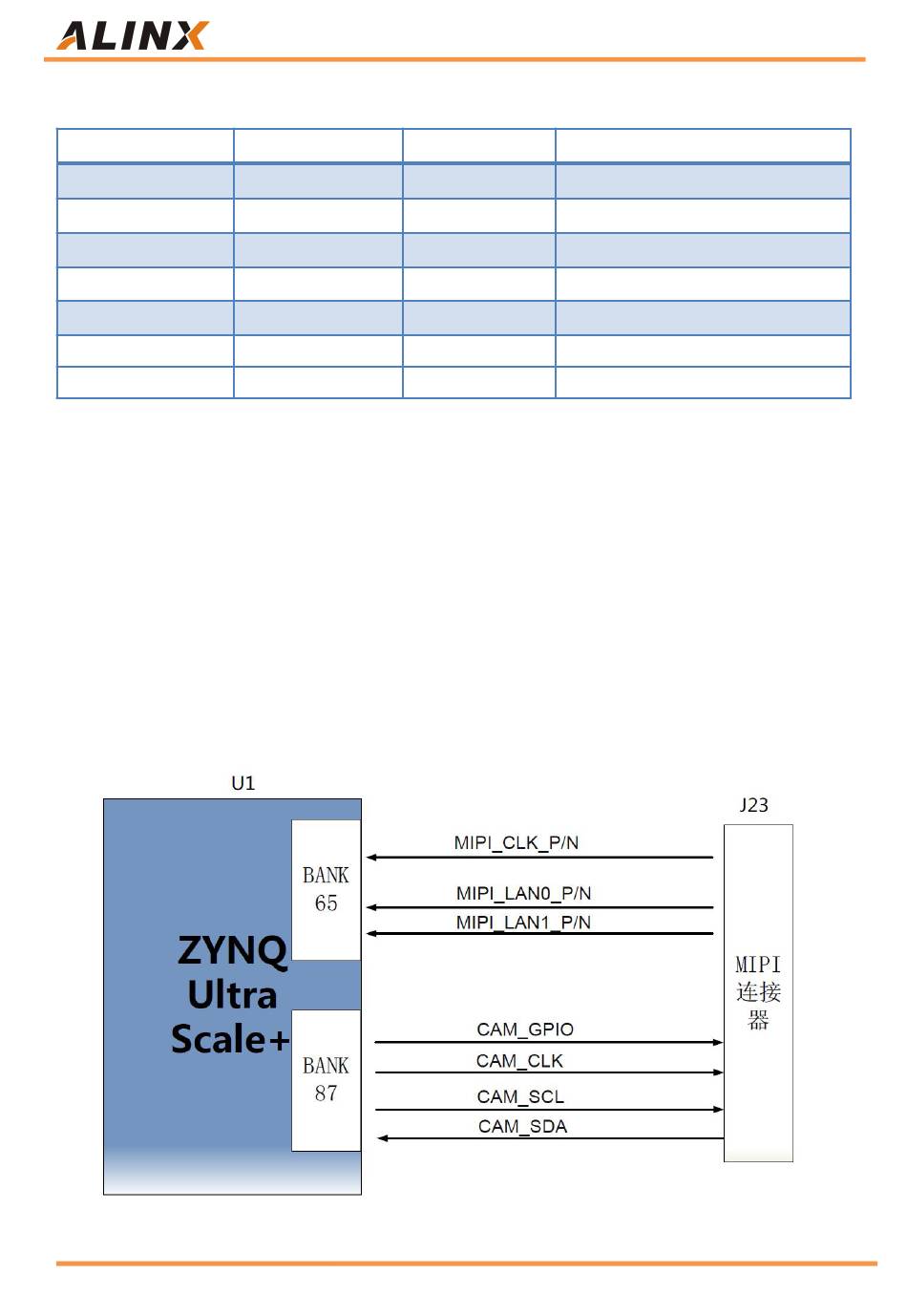

The circuit schematic of the MIPI interface part is shown in Figure 3-12-1
below:
Figure 3-12-1: MIPI camera interface design schematic
55 / 68
ZYNQ Ultrascale + FPGA Board AXU7EV User Manual
Pin Name Pin Number
SD_CLK
SD_CD
SD_D0
SD_D1
SD_D2
SD_D3
SD_CMD
Amazon Store: https://www.amazon.com/alinx
SD Clock Signal
F34
SD Command Signal
E33
SD Data0
E34
SD Data1
F30
SD Data2
F31
SD Data3
F32
SD card insertion signal
F33
