Configure chip pin assignments:
Signal Name
MIO0_QSPI0_SCLK
MIO1_QSPI0_IO1
MIO2_QSPI0_IO2
MIO3_QSPI0_IO3
MIO4_QSPI0_IO0
MIO5_QSPI0_SS_B
MIO10_QSPI1_IO2
MIO11_QSPI1_IO3
MIO12_QSPI1_SCLK
MIO7_QSPI1_SS_B
MIO8_QSPI1_IO0
MIO9_QSPI1_IO1
Part 2.5: eMMC Flash
The ACU7EV core board is equipped with a large-capacity 8GB eMMC
24 / 68
ZYNQ Ultrascale + FPGA Board AXU7EV User Manual

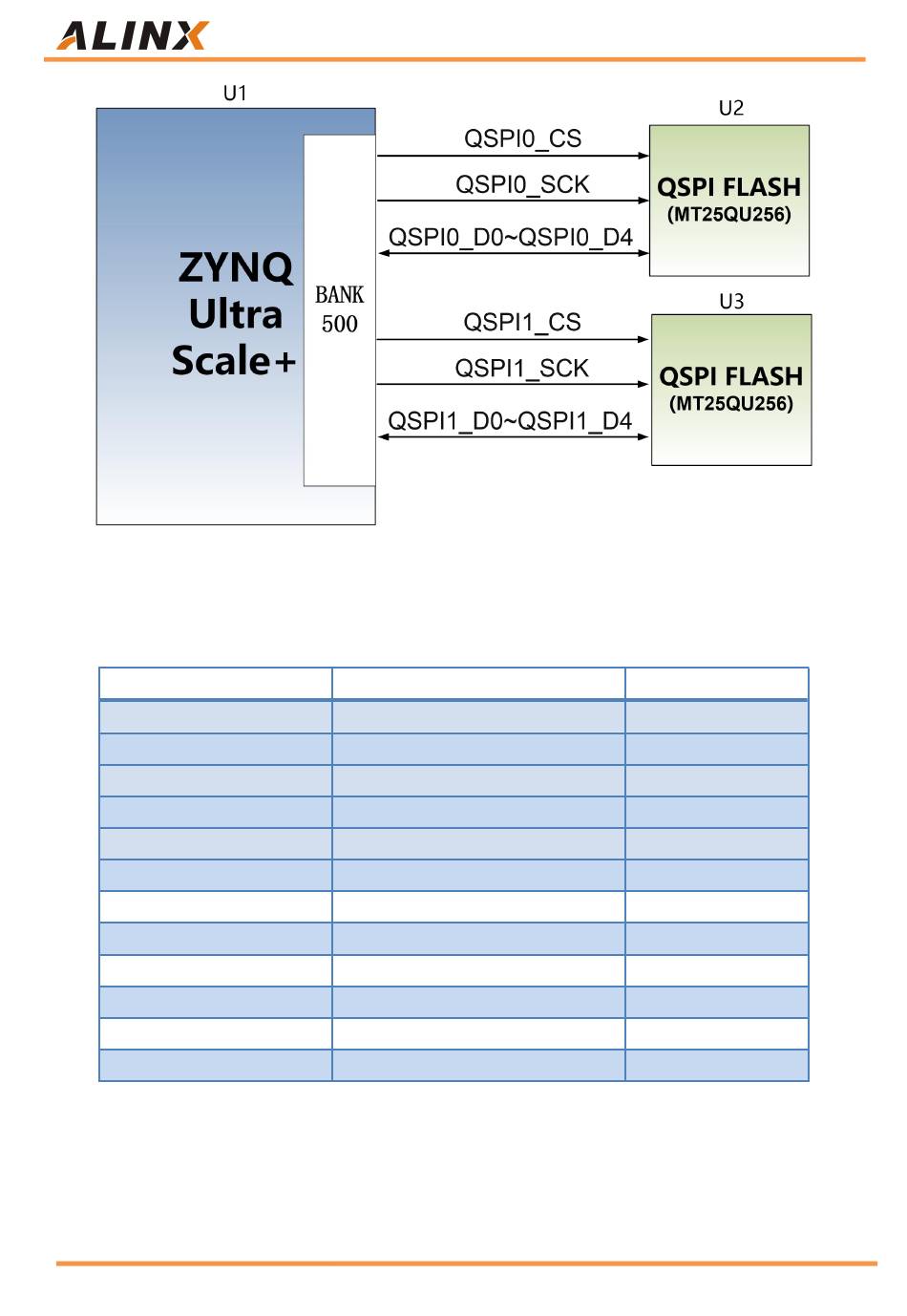

Figure 2-4-1: QSPI Flash in the schematic
PS_MIO0_500
PS_MIO1_500
PS_MIO2_500
PS_MIO3_500
PS_MIO4_500
PS_MIO5_500
PS_MIO10_500
PS_MIO11_500
PS_MIO12_500
PS_MIO7_500
PS_MIO8_500
PS_MIO9_500
Amazon Store: https://www.amazon.com/alinx
Pin Name
Pin Number
A24
C24
B24
E25
A25
D25
F26
B26
C27
B25
D26
C26
