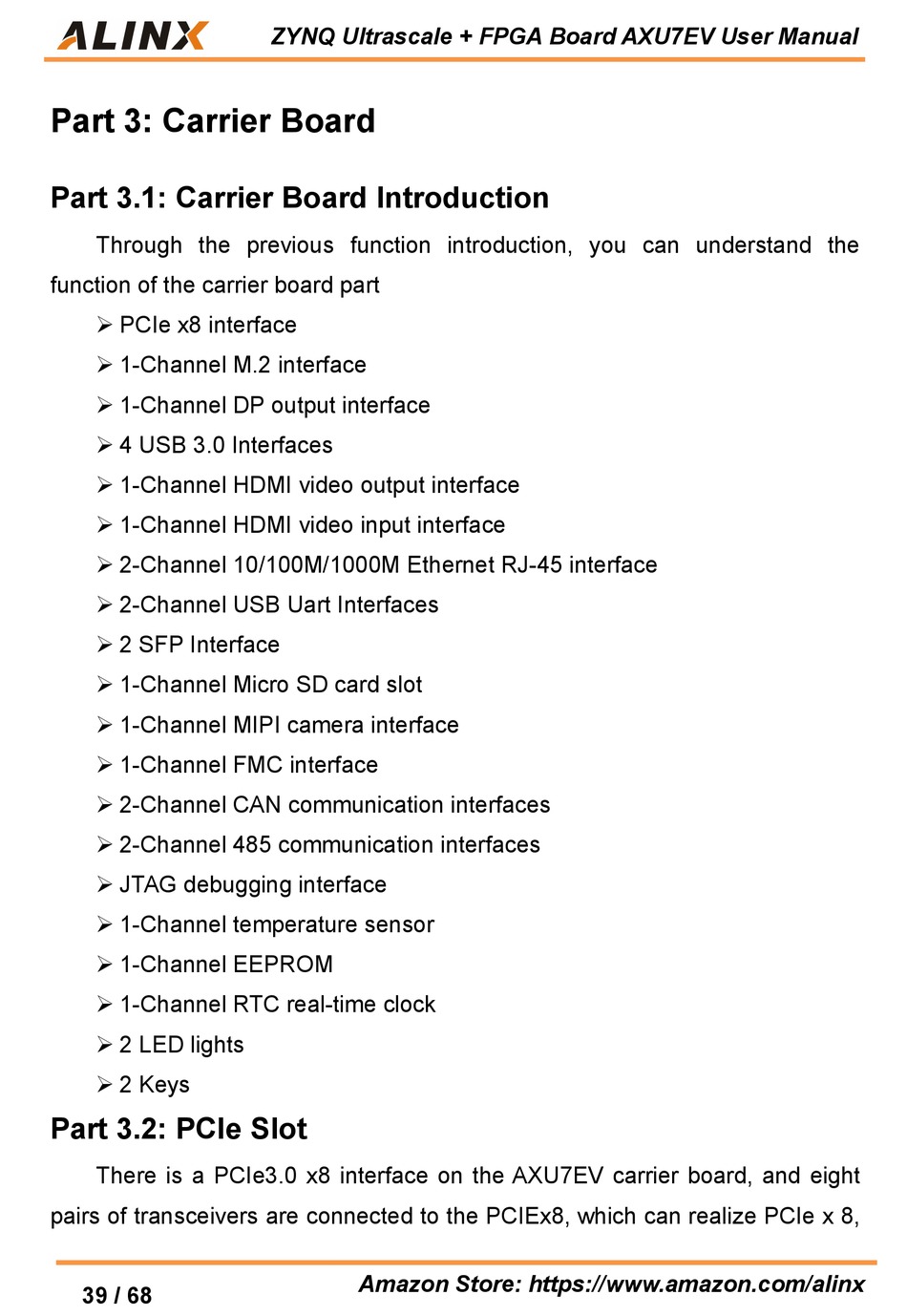

Part 3: Carrier Board

Part 3.1: Carrier Board Introduction

Through the previous function introduction, you can understand the
function of the carrier board part
 PCIe x8 interface
 1-Channel M.2 interface
 1-Channel DP output interface
 4 USB 3.0 Interfaces
 1-Channel HDMI video output interface
 1-Channel HDMI video input interface
 2-Channel 10/100M/1000M Ethernet RJ-45 interface
 2-Channel USB Uart Interfaces
 2 SFP Interface
 1-Channel Micro SD card slot
 1-Channel MIPI camera interface
 1-Channel FMC interface
 2-Channel CAN communication interfaces
 2-Channel 485 communication interfaces
 JTAG debugging interface
 1-Channel temperature sensor
 1-Channel EEPROM
 1-Channel RTC real-time clock
 2 LED lights
 2 Keys

Part 3.2: PCIe Slot

There is a PCIe3.0 x8 interface on the AXU7EV carrier board, and eight
pairs of transceivers are connected to the PCIEx8, which can realize PCIe x 8,
