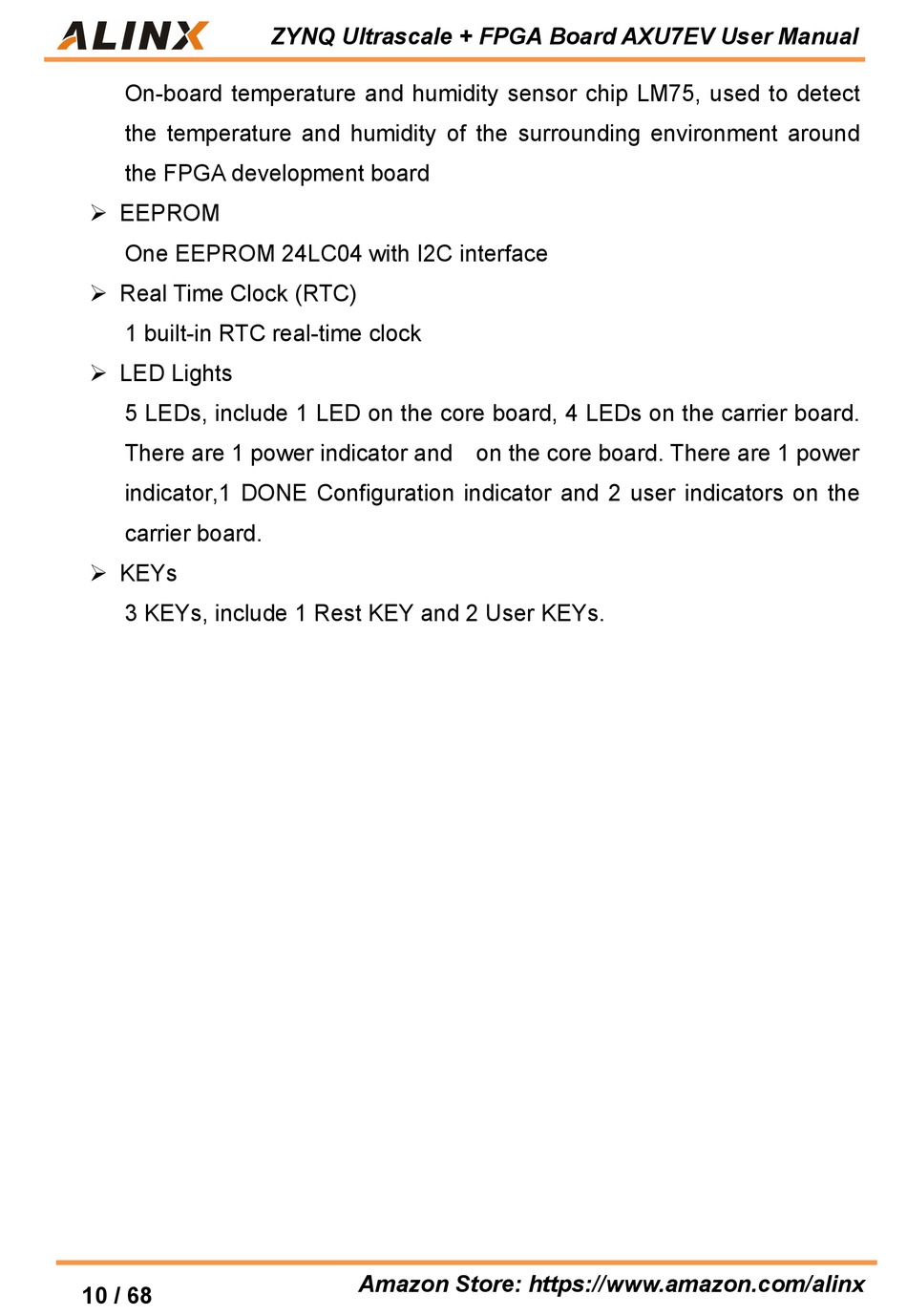

On-board temperature and humidity sensor chip LM75, used to detect
the temperature and humidity of the surrounding environment around
the FPGA development board
 EEPROM
One EEPROM 24LC04 with I2C interface
 Real Time Clock (RTC)
1 built-in RTC real-time clock
 LED Lights
5 LEDs, include 1 LED on the core board, 4 LEDs on the carrier board.
There are 1 power indicator and on the core board. There are 1 power
indicator,1 DONE Configuration indicator and 2 user indicators on the
carrier board.
 KEYs
3 KEYs, include 1 Rest KEY and 2 User KEYs.
