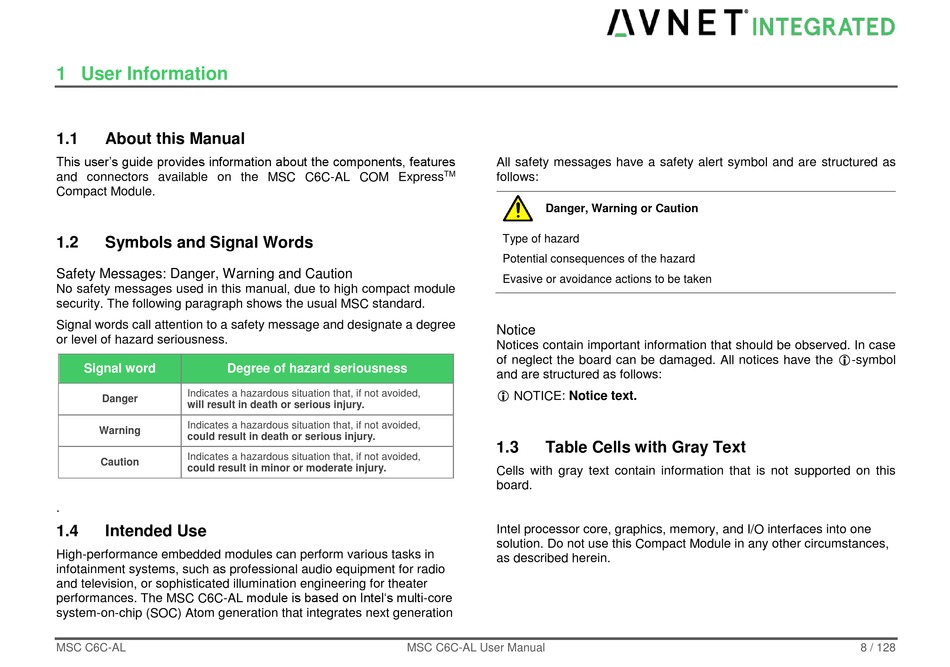

1 User Information

1.1

About this Manual

This user's guide provides information about the components, features
and connectors available on the MSC C6C-AL COM Express
Compact Module.
1.2

Symbols and Signal Words

Safety Messages: Danger, Warning and Caution
No safety messages used in this manual, due to high compact module
security. The following paragraph shows the usual MSC standard.
Signal words call attention to a safety message and designate a degree
or level of hazard seriousness.
Signal word
Degree of hazard seriousness
Indicates a hazardous situation that, if not avoided,
Danger
will result in death or serious injury.
Indicates a hazardous situation that, if not avoided,
Warning
could result in death or serious injury.
Indicates a hazardous situation that, if not avoided,
Caution
could result in minor or moderate injury.
.
1.4

Intended Use

High-performance embedded modules can perform various tasks in
infotainment systems, such as professional audio equipment for radio
and television, or sophisticated illumination engineering for theater
performances. The MSC C6C-AL module is based on Intel's multi-core
system-on-chip (SOC) Atom generation that integrates next generation
MSC C6C-AL
All safety messages have a safety alert symbol and are structured as
TM
follows:
Danger, Warning or Caution
Type of hazard
Potential consequences of the hazard
Evasive or avoidance actions to be taken
Notice
Notices contain important information that should be observed. In case
of neglect the board can be damaged. All notices have the
and are structured as follows:
NOTICE: Notice text.
1.3
Table Cells with Gray Text
Cells with gray text contain information that is not supported on this
board.
Intel processor core, graphics, memory, and I/O interfaces into one
solution. Do not use this Compact Module in any other circumstances,
as described herein.
