3 Jumpers and Connectors
3.1
Jumpers
There are two jumpers available on the module:
-
BIOS Default: By shorting the pins of this jumper during
boot, the values of the BIOS setup will be reset to
default values.
-
BIOS Recovery: By shorting the pins of this jumper
during boot the system is forced into crisis recovery
mode. For more information see chapter 6.18.

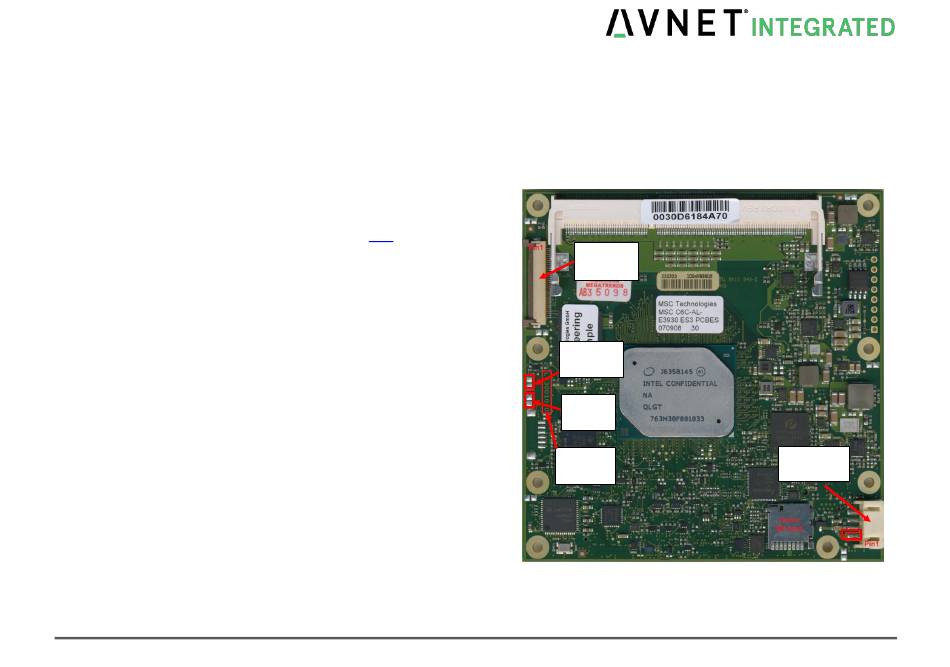

These jumpers are located at the top side of the board on the edge of
the PCB (see photo).
MSC C6C-AL
Pin1
Camera
Interface
BIOS
Recovery
BIOS
Default
Layout
Revision
MSC C6C-AL User Manual
Fan
Connector
micro
SD card
Pin1
48 / 128
