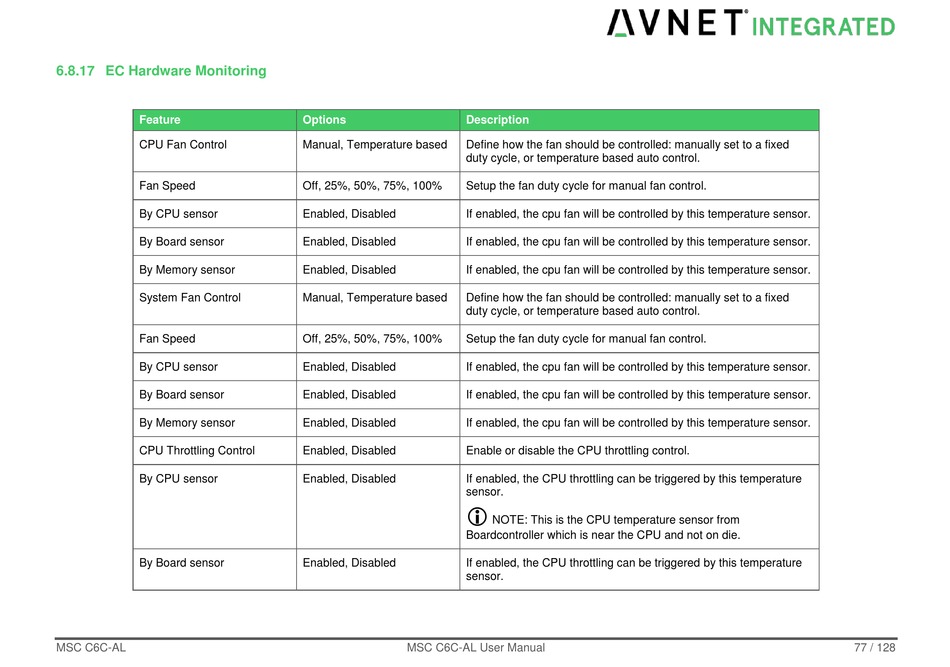

6.8.17 EC Hardware Monitoring

Feature
CPU Fan Control
Fan Speed
By CPU sensor
By Board sensor
By Memory sensor
System Fan Control
Fan Speed
By CPU sensor
By Board sensor
By Memory sensor
CPU Throttling Control
By CPU sensor
By Board sensor
MSC C6C-AL
Options Description
Manual, Temperature based Define how the fan should be controlled: manually set to a fixed
duty cycle, or temperature based auto control.
Off, 25%, 50%, 75%, 100% Setup the fan duty cycle for manual fan control.
Enabled, Disabled If enabled, the cpu fan will be controlled by this temperature sensor.
Enabled, Disabled If enabled, the cpu fan will be controlled by this temperature sensor.
Enabled, Disabled If enabled, the cpu fan will be controlled by this temperature sensor.
Manual, Temperature based Define how the fan should be controlled: manually set to a fixed
duty cycle, or temperature based auto control.
Off, 25%, 50%, 75%, 100% Setup the fan duty cycle for manual fan control.
Enabled, Disabled If enabled, the cpu fan will be controlled by this temperature sensor.
Enabled, Disabled If enabled, the cpu fan will be controlled by this temperature sensor.
Enabled, Disabled If enabled, the cpu fan will be controlled by this temperature sensor.
Enabled, Disabled Enable or disable the CPU throttling control.
Enabled, Disabled If enabled, the CPU throttling can be triggered by this temperature
sensor.

Boardcontroller which is near the CPU and not on die.
Enabled, Disabled If enabled, the CPU throttling can be triggered by this temperature
sensor.
MSC C6C-AL User Manual
NOTE: This is the CPU temperature sensor from
