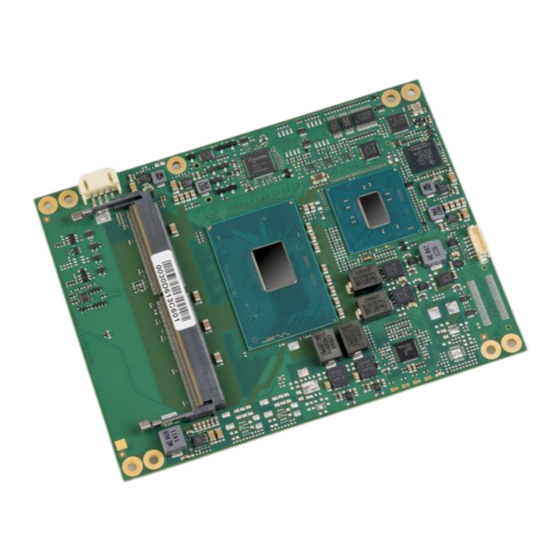

- Page 1 Heat spreader mounting instructions COM ExpressTM Basic Module MSC C6B-SLH, MSC C6B-KLH MSC C6B-CFLH, MSC C6B-CFLR Rev. 0.5 2020-04-28...
- Page 2 MSC C6B-SLH / KLH / CFLH / CFLR Heat spreader mounting instructions Preface Copyright Notice Copyright © 2016 MSC Technologies GmbH. All rights reserved. Copying of this document, and giving it to others and the use or communication of the contents thereof, is forbidden without express authority.
- Page 3 This document is designed to give the customer a better understanding of important considerations, when using MSC heat spreaders on the MSC C6B-SLH, MSC C6B-KLH, MSC C6B-CFLH or MSC C6B-CFLR module. Below you will find important guidelines that must be followed to ensure that the heat spreader is properly mounted.
- Page 4 Step 3: Insert the memory module into the bottom memory socket if necessary. Step 4: Mount the MSC C6B-SLH/KLH/CFLH/CFLR module on the baseboard and fix it securely with adequate screws through the five mounting holes as defined in the COM Express Module Base Specification.
