Features
Microsoft Azure Sphere SoC based module
solution for advanced end-to-end IOT security
Based on MediaTek MT3620AN Wi-Fi SoC
- 1x 500MHz Arm Cortex A7 application
processor with 4MB SRAM
- 2x 200MHz Arm Cortex M4F cores,
each with 64KB SRAM
- 4MB embedded RAM (shared)
- 16MB QSPI flash memory
- Dual-band 2.4/5GHz 802.11 a/b/g/n Wi-Fi
Module I/O peripheral support
- 3x ISU interfaces, pre-configured for
UART, SPI, I2C
- ADC/GPIO: 3x 12-bit ADC inputs (or GPIOs)
- PWM/GPIO: 9x PWM outputs
(or up to 24 GPIOs)
- RTC (requires VBAT supply)
- Programming & recovery interface
Microsoft Visual Studio IDE for accelerated
application software development & debug
OTA authentication & updates (device lifetime)
Dimensions: 33mm x 22mm x 3.5mm
Onboard dual-band 2.4/5GHz chip antenna
- (Pulse W3006)
Operating temperature:
- -35C to +85°C
(Note: For industrial temperature range,
please use the U.FL version module)
Certifications:
- FCC, IC, CE, MIC, RoHS (pending)
May 09, 2019

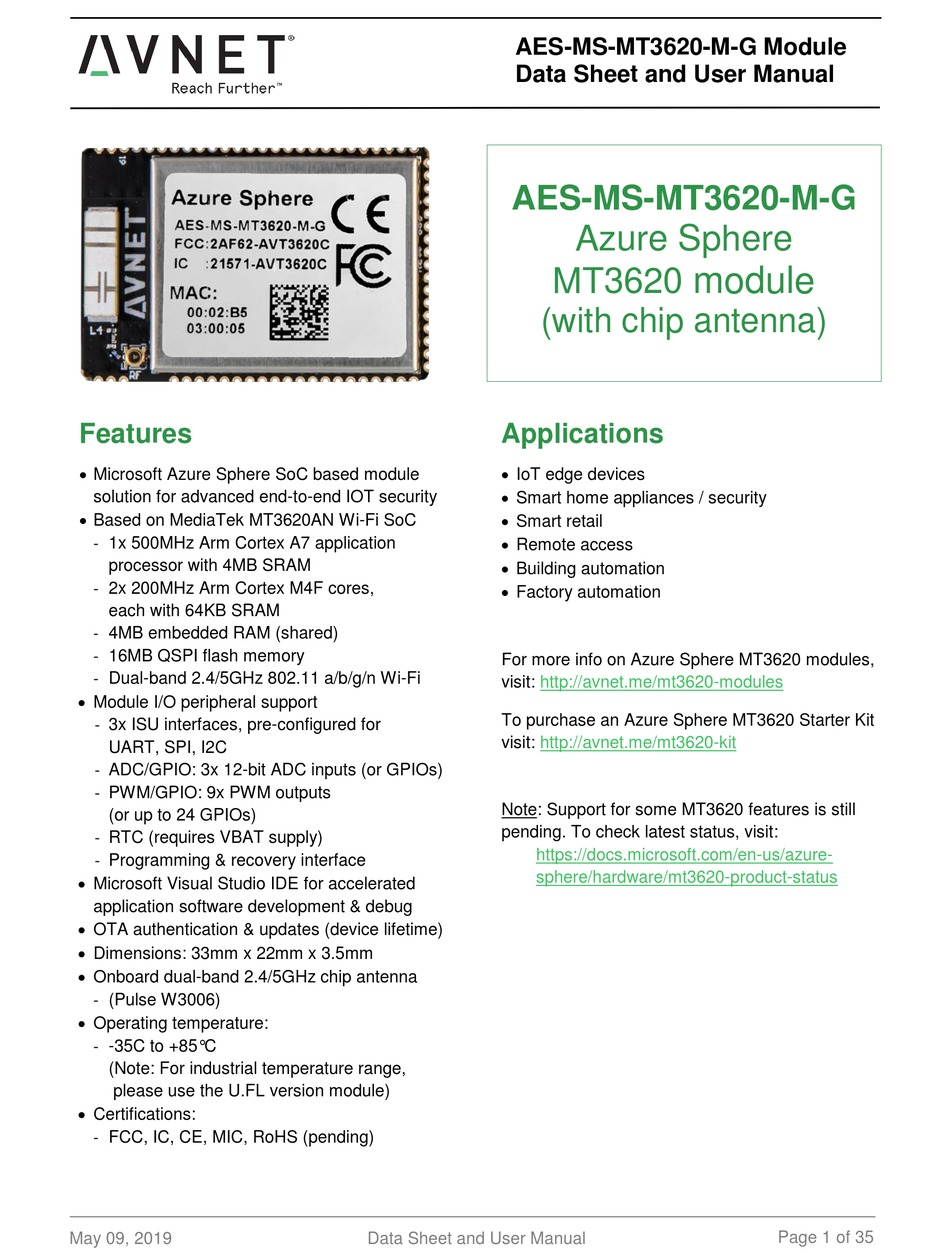

AES-MS-MT3620-M-G Module
Data Sheet and User Manual
AES-MS-MT3620-M-G
(with chip antenna)
Applications
IoT edge devices
Smart home appliances / security
Smart retail
Remote access
Building automation
Factory automation
For more info on Azure Sphere MT3620 modules,
visit:
http://avnet.me/mt3620-modules
To purchase an Azure Sphere MT3620 Starter Kit
visit:
http://avnet.me/mt3620-kit
Note: Support for some MT3620 features is still
pending. To check latest status, visit:
https://docs.microsoft.com/en-us/azure-
sphere/hardware/mt3620-product-status
Data Sheet and User Manual
Azure Sphere
MT3620 module
Page 1 of 35
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avnet Reach Further MT3620
Summary of Contents for Avnet Reach Further MT3620
-
Page 1: Features
- 16MB QSPI flash memory For more info on Azure Sphere MT3620 modules, - Dual-band 2.4/5GHz 802.11 a/b/g/n Wi-Fi visit: http://avnet.me/mt3620-modules Module I/O peripheral support To purchase an Azure Sphere MT3620 Starter Kit - 3x ISU interfaces, pre-configured for visit: http://avnet.me/mt3620-kit... -
Page 2: Document Control
Link to Sphere status added. FTDI adaptor cable detail updated Ordering Information Part Number Description AES-MS-MT3620-M-G Azure Sphere MT3620 Module (chip antenna) Product Page: http://avnet.me/mt3620-modules AES-MS-MT3620-SK-G Azure Sphere MT3620 Starter Kit Product Page: http://avnet.me/mt3620-kit Page 2 of 35 Data Sheet and User Manual... -
Page 3: Table Of Contents
AES-MS-MT3620-M-G Module Data Sheet and User Manual Contents Features ........................1 Applications ......................... 1 Document Control ....................... 2 Ordering Information ....................2 Overview ........................6 Module Block Diagram ....................7 Module Application Development and Programming ..........8 Development Computer Software Installation ..................8 Module Interfaces with the Development Computer ................ - Page 4 Handling ............................. 32 Moisture Sensitivity (MSL) ......................... 32 Storage ............................... 32 Contact Information ....................33 Legal Information ...................... 34 Limitations ............................34 Avnet Module License and Product Warranty ..................34 Page 4 of 35 Data Sheet and User Manual May 09, 2019...
- Page 5 AES-MS-MT3620-M-G Module Data Sheet and User Manual Table of Figures Figure 1 – Simplified MT3620 SoC Block Diagram ................... 6 Figure 2 – AES-MS-MT3620-M-G Module Block Diagram ................7 Figure 3 – Module with dual-band Chip Antenna .................... 10 Figure 4 – OEM board Footprint for AES-MS-MT3620-M-G Module .............. 12 Figure 5 –...
-
Page 6: Overview
The module allows easy design migration and end-product enhancements. By integrating all necessary support and RF front end circuitry onto a small 33 mm x 22 mm module, Avnet has reduced the design time for implementing Sphere-based solutions. Developers can leverage the module’s wireless regulatory certifications (pending) for their end product, saving considerable certification costs and testing time. -
Page 7: Module Block Diagram
AES-MS-MT3620-M-G Module Data Sheet and User Manual Online authentication and firmware updates are supported for the MT3620 device lifetime. Module Block Diagram Figure 2 – AES-MS-MT3620-M-G Module Block Diagram Page 7 of 35 Data Sheet and User Manual May 09, 2019... -
Page 8: Module Application Development And Programming
C applications (a GCC cross-compiler and GDB debugger provide the underlying build and debug tools) For application development targeting this module, it is recommended that hardware and software prototyping be done using the Avnet Azure Sphere MT3620 Starter Kit http://avnet.me/mt3620-kit Module Interfaces with the Development Computer The module is designed to support up to four wired interfaces with the development computer. -
Page 9: Module Integration Onto An Oem Board
AES-MS-MT3620-M-G Module Data Sheet and User Manual Module Integration onto an OEM Board Module Power Interfaces To power this module, the OEM board must be able to supply a maximum of 2.5 Watts at 3.3V. Prior to power-up of the module, the following interfaces need to be attended to: Interface Pins Description Notes... -
Page 10: Wi-Fi Subsystem
AES-MS-MT3620-M-G Module Data Sheet and User Manual Wi-Fi Subsystem Dual-band 2.4/5GHz 802.11 a/b/g/n Wi-Fi (20 MHz channels only) Has an N968 Andes 32bit MCU Uses an external 26 MHz crystal oscillator on the module Has an integrated 5GHz Balun ... -
Page 11: Mt3620 Bootstrap Pins
AES-MS-MT3620-M-G Module Data Sheet and User Manual MT3620 Bootstrap Pins Note! Six of the seven bootstrap pins are already strapped on the module. The DEBUG_RTS signal must however be strapped on the OEM board with a 2K2 pull-down resistor, to ensure that RECOVERY mode remains disabled (This signal gets driven high to select RECOVERY via an FTDI device based interface with the development computer when a Debug-Programmer cable is attached) Function... -
Page 12: Module Placement And Ground Plane Requirements
AES-MS-MT3620-M-G Module Data Sheet and User Manual Module Placement and Ground plane requirements For optimum antenna performance the Ground plane of the OEM board (on which the module is fitted) needs to be maximized The GND pads in the antenna area of the module must be connected to this Ground plane ... -
Page 13: Module Pinout Locations
AES-MS-MT3620-M-G Module Data Sheet and User Manual Module Pinout Locations Figure 5 – AES-MS-MT3620-M-G Module Pinout Page 13 of 35 Data Sheet and User Manual May 09, 2019... -
Page 14: Module Pinout Table
AES-MS-MT3620-M-G Module Data Sheet and User Manual Module Pinout Table Module MT3620 MT3620 Pre-Assigned Pin Function Net Name Starter Kit Function=BLUE Power Power PWM CLICK1 GPIO0_PWM0 GPIO / INT in / PWM out GPIO / INT in / PWM out PWM CLICK2 GPIO1_PWM1 GPIO / INT in / PWM out... - Page 15 AES-MS-MT3620-M-G Module Data Sheet and User Manual Module Pinout Table (continued) Pre-Assigned Module MT3620 MT3620 Pin Function Starter Kit Net Name Function=BLUE 3V3_RTC Power min 2.50 V, max 3.63V 88,89 Power 88,89 Power Debug UART DEBUG_RXD DEBUG_RXD Debug UART DEBUG_RTS (pulled-down / FTDI controlled DEBUG_RTS strapping state on Starter Kit)
-
Page 16: Electrical Specifications
AES-MS-MT3620-M-G Module Data Sheet and User Manual Electrical Specifications Note! The electrical characteristics documented here are for the MT3620AN SoC device only, as defined in the Mediatek MT3620AN Datasheet and Product Brief documents Absolute Maximum Ratings Symbol Parameter Unit 3.3V Supply Voltage -0.3 to 3.63 Storage Temperature -40 to +125... -
Page 17: Current Consumption
AES-MS-MT3620-M-G Module Data Sheet and User Manual Current Consumption Details Typical Hardware Power mode Description current wake-up Power Subsystem consumption latency State Pluton CM4 subsystem Only RTC domain is on. 24ms CA7 subsystem Memory is not 0.01mA or (crystal and RTC mode CM4F I/O subsystems retained. -
Page 18: Rf Characteristics
AES-MS-MT3620-M-G Module Data Sheet and User Manual RF Characteristics Wi-Fi 2.4GHz Band RF Receiver Specifications The specification in table below is measured at the antenna port, which includes the front-end loss. Performance Parameter Description Typical Unit Main Frequency range Center channel frequency 2412 2484 DBPSF, 1 Mbps DSSS... - Page 19 AES-MS-MT3620-M-G Module Data Sheet and User Manual Wi-Fi 2.4GHz Band RF Receiver Specifications (continued) Performance Parameter Description Typical Unit Main BPSK rate 1/2, 6 Mbps OFDM BPSK rate 3/4, 9 Mbps OFDM QPSK rate 1/2, 12 Mbps OFDM QPSK rate 3/4, 18 Mbps OFDM 16QAM rate 1/2, 24 Mbps OFDM 16QAM rate 3/4, 36 Mbps...
-
Page 20: Wi-Fi 2.4Ghz Band Rf Transmitter Specifications
AES-MS-MT3620-M-G Module Data Sheet and User Manual Wi-Fi 2.4GHz Band RF Transmitter Specifications The specification in table below is measured at the antenna port, which includes the front-end loss. Performance Parameter Description Typical Unit Frequency range Center channel frequency 2412 2484 1 Mbps DSSS 16(1) -
Page 21: Wi-Fi 5Ghz Band Rf Receiver Specifications
AES-MS-MT3620-M-G Module Data Sheet and User Manual Wi-Fi 5GHz Band RF Receiver Specifications Specifications in the table below are measured at the antenna port, which includes the front-end loss. Performance Parameter Description Typical Unit Main Frequency range Center channel frequency 5180 5825 BPSK rate 1/2, 6 Mbps OFDM... -
Page 22: Wi-Fi 5Ghz Band Rf Transmitter Specifications
AES-MS-MT3620-M-G Module Data Sheet and User Manual Wi-Fi 2.4GHz Band RF Receiver Specifications (continued) Performance Parameter Description Typical Unit Main MCS 4, 16QAM rate 3/4 MCS 5, 64QAM rate 2/3 MCS 6, 64QAM rate 3/4 Receiver residual PER MCS 7, 64QAM rate 5/6 Wi-Fi 5GHz Band RF Transmitter Specifications The specification in table below is measured at the antenna port, which includes the front-end loss. -
Page 23: Wi-Fi Rf Receiver Blocking Specifications
AES-MS-MT3620-M-G Module Data Sheet and User Manual Wi-Fi RF Receiver Blocking Specifications The specifications in table below are measured at the antenna port, which includes the front-end loss. Performance Parameter Description Typical Unit 2.4 GHz CW and BT interfering signal @ ±20MHz offset Receiver in-band blocking(1) 2.4 GHz CW and BT interfering signal... -
Page 24: Mechanical Specifications
AES-MS-MT3620-M-G Module Data Sheet and User Manual Mechanical Specifications Module Dimension Details Figure 6 – AES-MS-MT3620-M-G Module Mechanical Details Page 24 of 35 Data Sheet and User Manual May 09, 2019... -
Page 25: Tape And Reel Packaging
AES-MS-MT3620-M-G Module Data Sheet and User Manual Tape and Reel Packaging [ Preliminary – This information is likely to change ] AES-MS-MT3620 Azure Sphere Modules are available in tape and reel packaging at quantities of 600 units. The reel dimensions are 13 inches (reel diameter) x 56 mm (tape-width). The 56 mm tape-width conforms to the Electronic Components Association Standard EIA-481-D. -
Page 26: Soldering And Cleaning Recommendations
AES-MS-MT3620-M-G Module Data Sheet and User Manual Figure 7 – Tape and Reel Details Soldering and Cleaning Recommendations [ Preliminary – This information is likely to change ] Optimum Soldering Reflow Profile Figure 8 – Recommended Soldering Profile for Lead-Free Solder ... -
Page 27: Certifications And Compliance
FCC and ISED Regulatory Notices (USA and Canada) Modification statement Avnet has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user's authority to operate the equipment! Interference statement This device complies with Part 15 of the FCC Rules and Industry Canada's license-exempt RSS standards. -
Page 28: Fcc Class B Digital Device Notice (Usa)
AES-MS-MT3620-M-G Module Data Sheet and User Manual FCC Class B Digital Device Notice (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 29: Fcc Requirements For User Manual Of The Oem Host Board
AES-MS-MT3620-M-G Module Data Sheet and User Manual This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 30: Ic Requirements For User Manual Of The Oem Host Board
"Host Product Testing Guidance" in FCC's KDB 996369 D04 Module Integration Guide V01 CE Statement (Europe) Avnet AES-MS-MT3620 Azure Sphere Modules have been tested and certified for use in the European Union. Summary of European Compliance Tests: Certification Standard... -
Page 31: Oem Instructions
AES-MS-MT3620-M-G Module Data Sheet and User Manual OEM Instructions This module is certified for installation into OEM end-products under the following conditions: 1) The intended use of this AES-MS-MT3620-M-G module is for indoor locations. If the end product using this module is able to operate in the band 5150-5250 MHz within Canada, it is only allowed to be used indoors (to reduce potential harmful interference to co-channel mobile satellite systems) The label of the end product in this case must include the text “For indoor use only”... -
Page 32: Shipping, Handling And Storage
Data Sheet and User Manual Shipping, Handling and Storage Shipping Bulk orders of Avnet AES-MS-MT3620 Azure Sphere Modules are delivered in reels of 600. (See detail under the section on Tape & Reel Packaging) Handling AES-MS-MT3620 Azure Sphere Modules contain sensitive electronic circuitry that require proper ESD protection when handling. -
Page 33: Contact Information
AES-MS-MT3620-M-G Module Data Sheet and User Manual Contact Information For further details, contact your local Avnet representative or e-mail us at: Region Organization Email Address & Phone AVNET - Americas North America Avnet Americas eval.kits@avnet.com 2211 South 47th Street Phoenix, AZ 85034... -
Page 34: Legal Information
Product and all copies of the Product Documentation. 2. Changes. Avnet may make changes to the Product or Product Documentation at any time without notice. Avnet makes no commitment to update or upgrade the Product or Product Documentation and Avnet reserves the right to discontinue the Product or Product Documentation at any time without notice. - Page 35 (collectively “Marks”) are the properties of their respective owners. Avnet disclaims any proprietary interest in Marks other than its own. Avnet and AV design logos are registered trademarks and service marks of Avnet, Inc. Avnet’s Marks may be used only with the prior written permission of Avnet, Inc.
