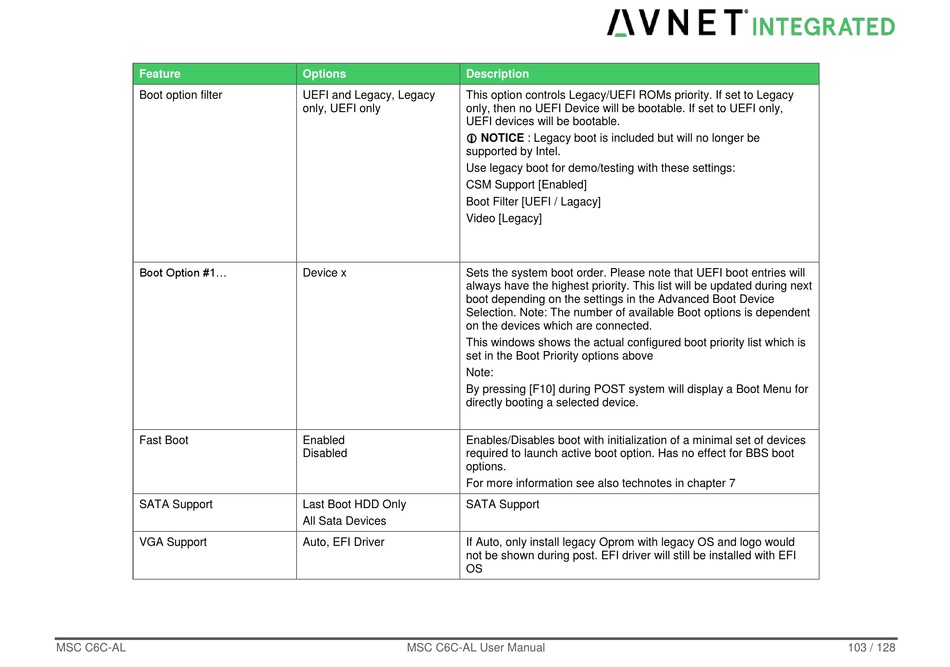

Avnet COM Express MSC C6C-AL User Manual page 103

Feature
Boot option filter
Boot Option #1...
Fast Boot
SATA Support
VGA Support
MSC C6C-AL
Options Description
UEFI and Legacy, Legacy This option controls Legacy/UEFI ROMs priority. If set to Legacy
only, UEFI only only, then no UEFI Device will be bootable. If set to UEFI only,
UEFI devices will be bootable.
 NOTICE : Legacy boot is included but will no longer be
supported by Intel.
Use legacy boot for demo/testing with these settings:
CSM Support [Enabled]
Boot Filter [UEFI / Lagacy]
Video [Legacy]
Device x Sets the system boot order. Please note that UEFI boot entries will
always have the highest priority. This list will be updated during next
boot depending on the settings in the Advanced Boot Device
Selection. Note: The number of available Boot options is dependent
on the devices which are connected.
This windows shows the actual configured boot priority list which is
set in the Boot Priority options above
Note:
By pressing [F10] during POST system will display a Boot Menu for
directly booting a selected device.
Enabled Enables/Disables boot with initialization of a minimal set of devices
Disabled required to launch active boot option. Has no effect for BBS boot
options.
For more information see also technotes in chapter 7
Last Boot HDD Only SATA Support
All Sata Devices
Auto, EFI Driver If Auto, only install legacy Oprom with legacy OS and logo would
not be shown during post. EFI driver will still be installed with EFI
OS
MSC C6C-AL User Manual 103 / 128
