VAT 612 Series Installation, Operating, & Maintenance Instructions

Butterfly pressure control valve with cc-link interface, dn 63-250 (i.d. 2.5" - 10")
Hide thumbs Also See for 612 Series:
Table of Contents

Advertisement

Quick Links

Butterfly Pressure Control Valve
with CC-Link interface
This manual is valid for the valve ordering number(s):
612 . . - . . GL - . . . .
(1 sensor input)
612 . . - . . GN - . . . .
(2 sensor inputs)
612 . . - . . AL - . . . .
(1 sensor input / 15V SPS)
612 . . - . . AN - . . . .
(2 sensor inputs / 15V SPS)
612 . . - . . HL - . . . .
(1 sensor input / PFO)
612 . . - . . HN - . . . .
(2 sensor inputs / PFO)
612 . . - . . CL - . . . .
(1 sensor input / 15V SPS / PFO)
612 . . - . . CN - . . . .
(2 sensor inputs / 15V SPS / PFO)
SPS = Sensor Power Supply
configured with firmware
612C.1E.08
The fabrication number is indicated on each product as per the label
below (or similar):
made in Switzerland
Fabrication No.:
612 . . – . . . . – . . . . / . . . .
A – . . . . . .
Explanation of symbols:
Read declaration carefully before you start any other
action!
Attention!
Loaded springs and/or air cushions are potential
hazards!
Disconnect electrical power and compressed air lines.
Do not touch parts under voltage!
Read these «Installation, Operating & Maintenance Instructions» and the enclosed «General
Safety Instructions» carefully before you start any other action!
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com

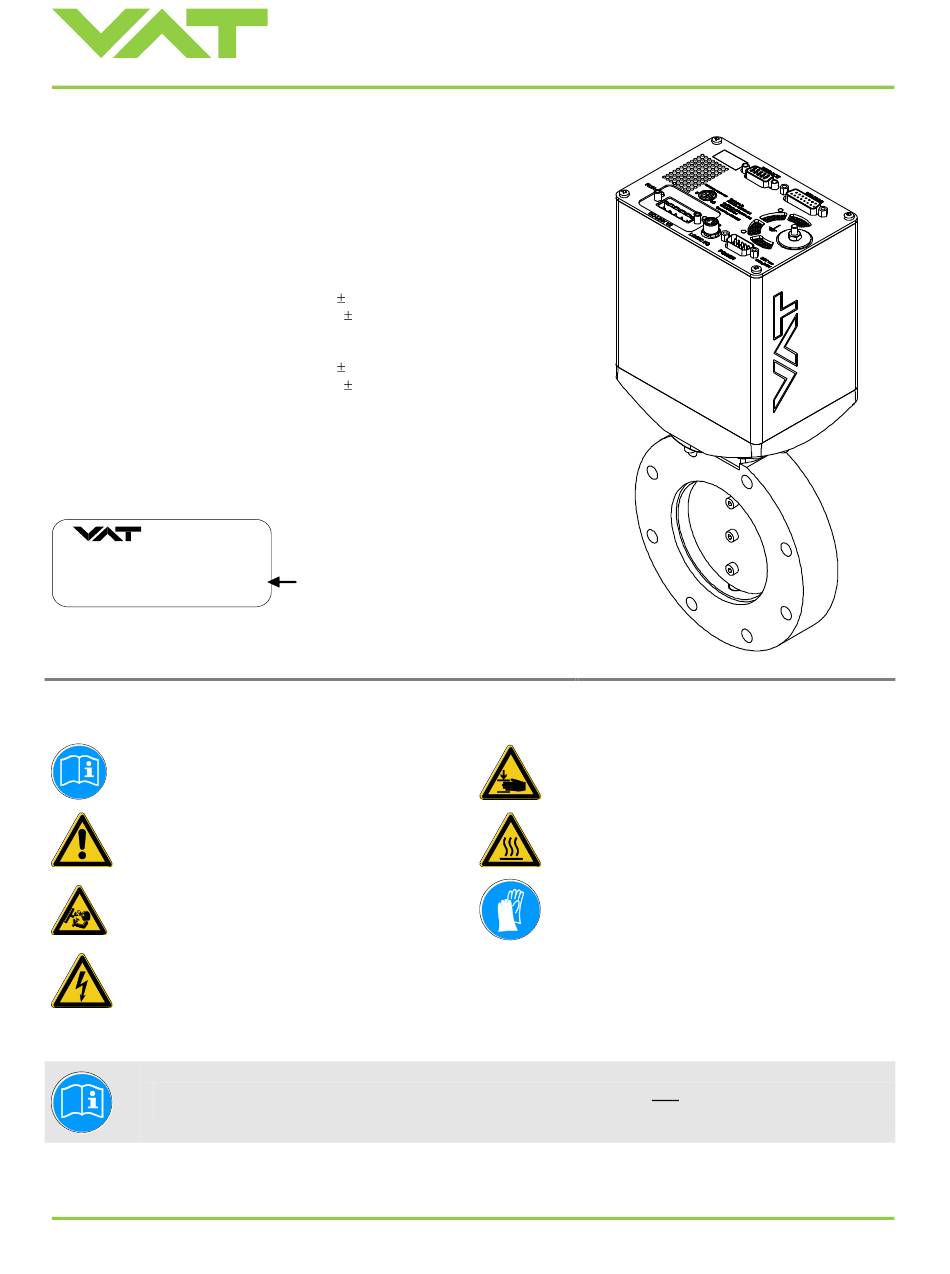

Installation, Operating & Maintenance Instructions
Series 612 DN 63-250 (I.D. 2.5" - 10"), CC-Link
PFO = Power Failure Option
Fabrication number
sample picture
Keep body parts and objects away from the valve
opening!
Hot surfaces; do not touch!
Wear gloves!
289856EA
2011-07-06
1/85
