  6. Installation, operating, & maintenance instructions

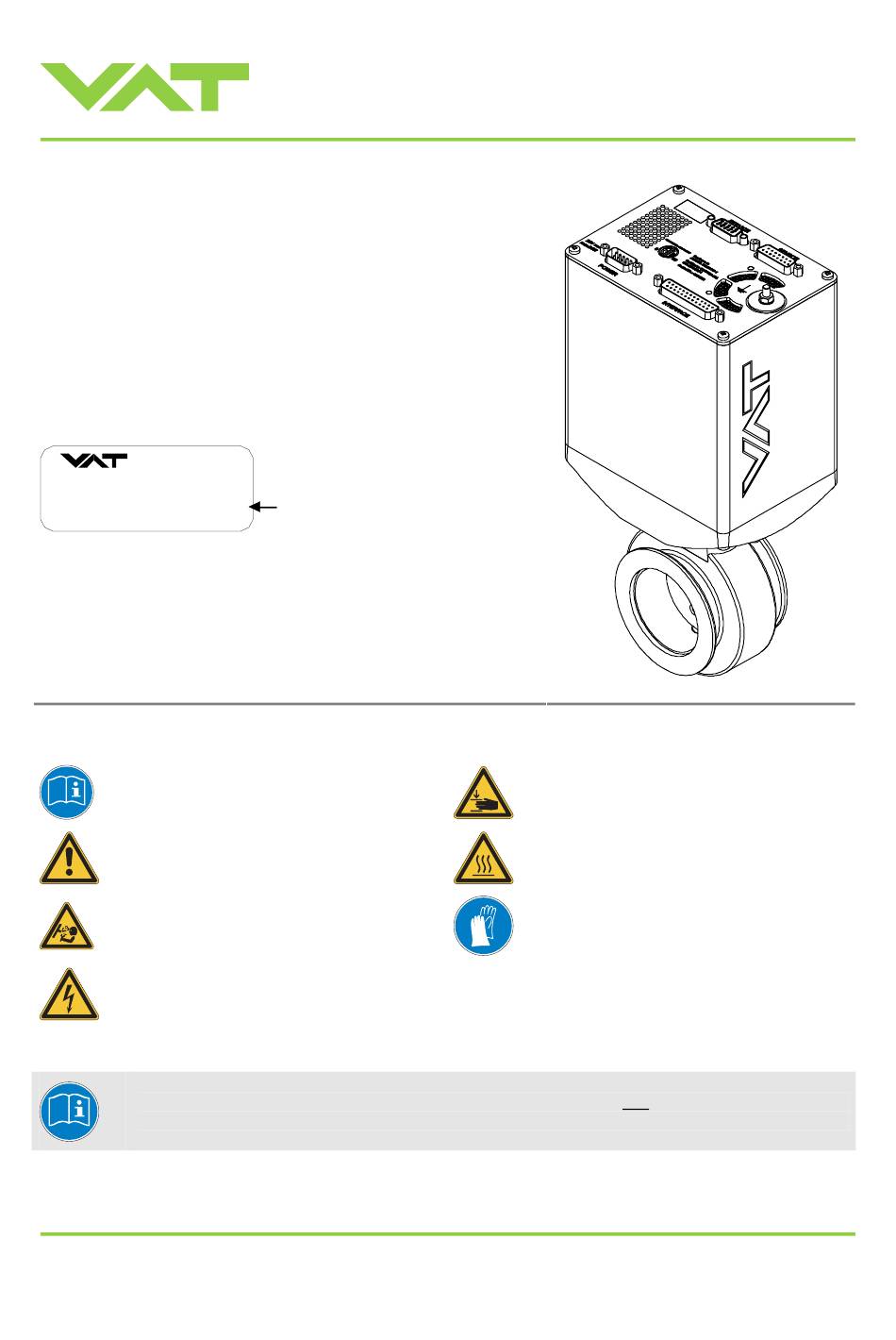

VAT 612 Series Installation, Operating, & Maintenance Instructions

Butterfly pressure control valve
Hide thumbs Also See for 612 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Butterfly Pressure Control Valve
with RS485 interface
This manual is valid for the valve ordering number(s):
61234-KAAJ-0002
configured with firmware 612P.1E.65
The fabrication number is indicated on each product as per the label
below (or similar):
ma de in Swit zerlan d
Fab rica tio n No .:
61 2 . . – . . . . – . . . . / . . . .
A – . . . . . .
Explanation of symbols:
Read declaration carefully before you start any other
action!
Attention!
Loaded springs and/or air cushions are potential
hazards!
Disconnect electrical power and compressed air
lines. Do not touch parts under voltage!
Read these «Installation, Operating & Maintenance Instructions» and the enclosed «General
Safety Instructions» carefully before you start any other action!
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com
Installation, Operating & Maintenance Instructions
Series 612 DN 50 (I.D. 2"), RS485
Fabrication num ber
sample picture
Keep body parts and objects away from the valve
opening!
Hot surfaces; do not touch!
Wear gloves!
290089EA
2011-06-21
1/65
