Power Terminals - CD Automation REVO C EXTENDED 2PH User Manual

REVO C
2PH from 1100A to 2100A

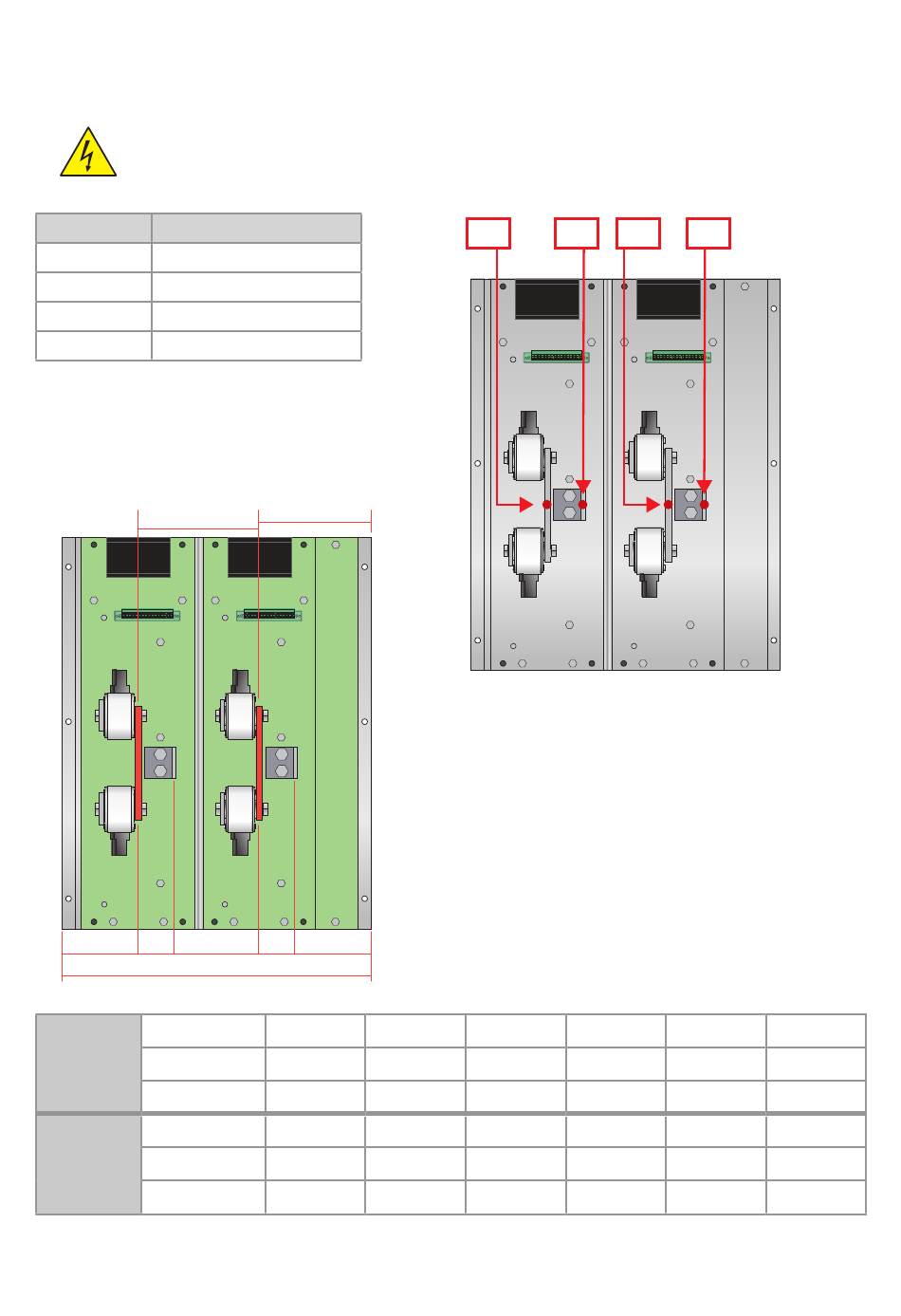

8.2 Power Terminals

Warning: Before connecting or disconnecting the unit check that power and control cables
are isolated from voltage sources.
Description
Terminal
Line Input Phase 1
L1
Line Input Phase 2
L3
Load Output Phase 1
T1
Load Output Phase 2
T3
E
A B
600V 1100A-1400A
1600A-1800A
2100A
690V 1100A-1400A
1600A-1800A
2100A
F
C B D
522
A: 124mm B: 54,5mm
A: 125mm B: 52,5mm
A: 138mm B: 38,5mm
A: 136mm B: 42,5mm
A: 137mm B: 40,5mm
A: 138mm B: 38,5mm
L1 T1
C: 140,5mm D: 150,5mm
C: 142,5mm D: 151,5mm
C: 156,5mm D: 152,5mm
C: 152,5mm D: 150,5mm
C: 154,5mm D: 151,5mm
C: 156,5mm D: 152,5mm
26
User's manual
L3 T3
E: 195mm F: 205mm
E: 195mm F: 204mm
E: 195mm F: 191mm
E: 195mm F: 193mm
E: 195mm F: 192mm
E: 195mm F: 191mm
