REVO C
2PH from 1100A to 2100A
7

Installation

Before to install, make sure that the Thyristor unit have not damages.
If the product has a fault, please contact the dealer from which you
purchased the product. Verify that the product is the same thing as
ordered.
The Thyristor unit must be always mounted in vertical position to
improve air cooling on heat-sink.
Maintain the minimum distances (
represented, this area must be free from obstacle (wire, copper bar,
plastic channel).

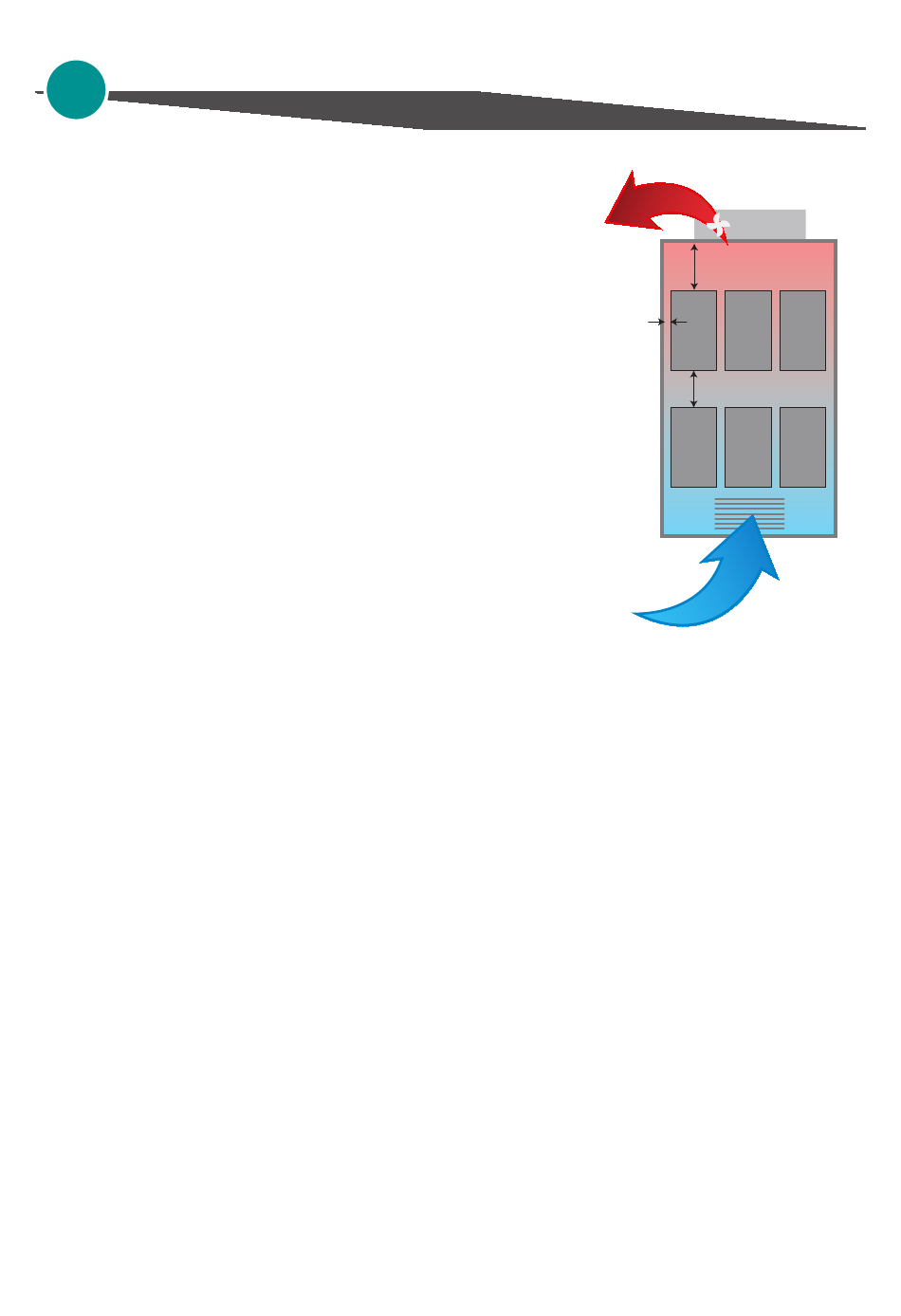

When more unit has mounted inside the cabinet maintain the air
circulation like represented in figure without obstacle for the air flow.
Is necessary to install a fan to have better air circulation as calculated
previously.
The V Air flow must be equal or more than the value calculated.
If the cabinet fan mounted by the customer have an air flow lower than the correct value the warranty
will decay.
*
) in vertical and in horizontal as
21
User's manual
AIR FLOW OUT (V)
FAN
in aspiration
*30 cm
*2 cm
*20 cm
AIR FLOW IN (V)
Air Grid
