REVO C
2PH from 1100A to 2100A
19
24Vdc input Auxiliary supplemental power

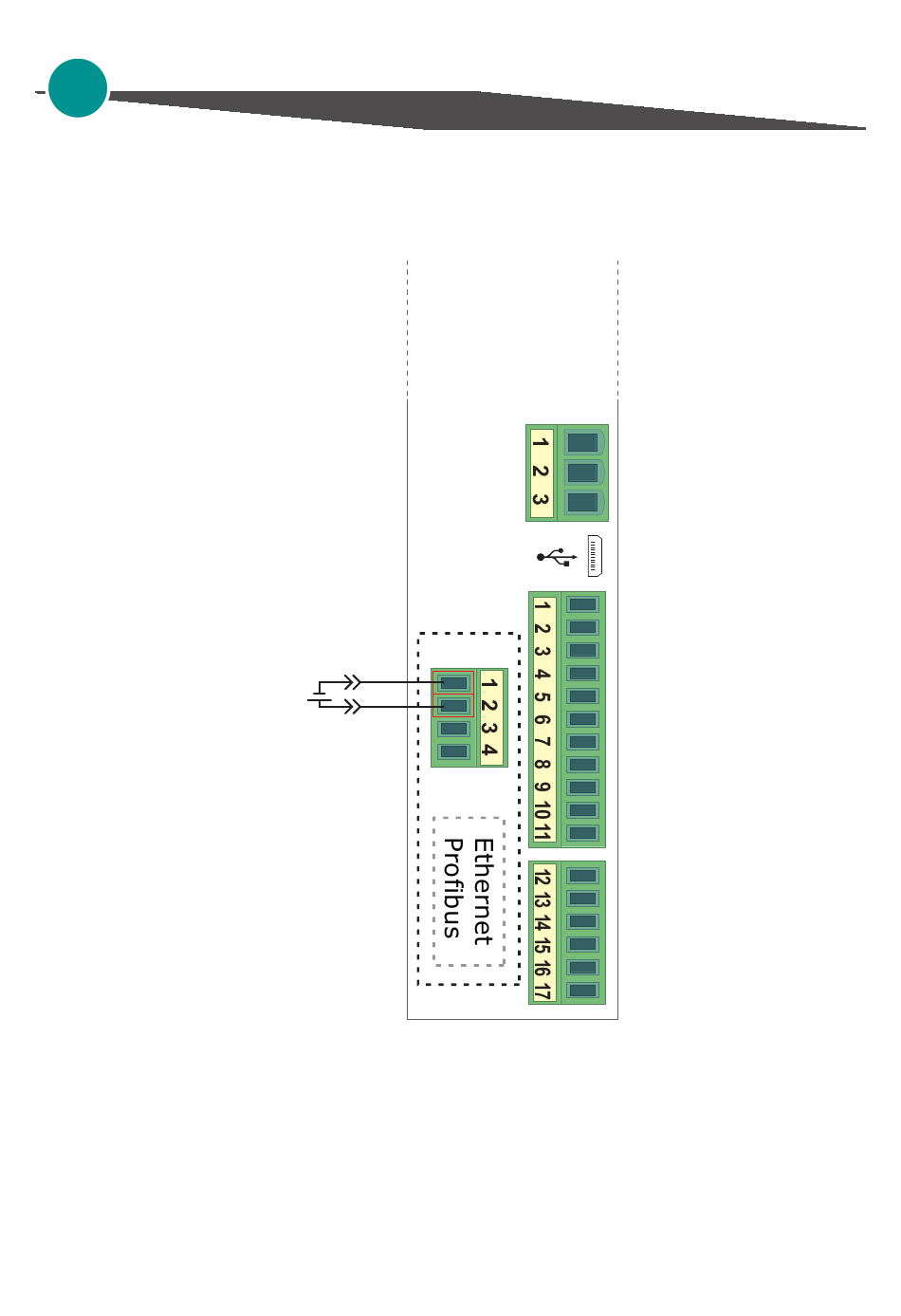

The 24Vdc Auxiliary Supply input in Terminal Block M6, terminals 1 and 2, can be used as an auxiliary power
supply when the main network fails. This auxiliary power supply keeps the communication circuits powered
allowing data to be transferred to the supervision system.
+24VDC Input
M6
± 5%
+
–
Current: 500mA
80
M4
M5
User's manual
(option)
