REVO C
2PH from 1100A to 2100A
17

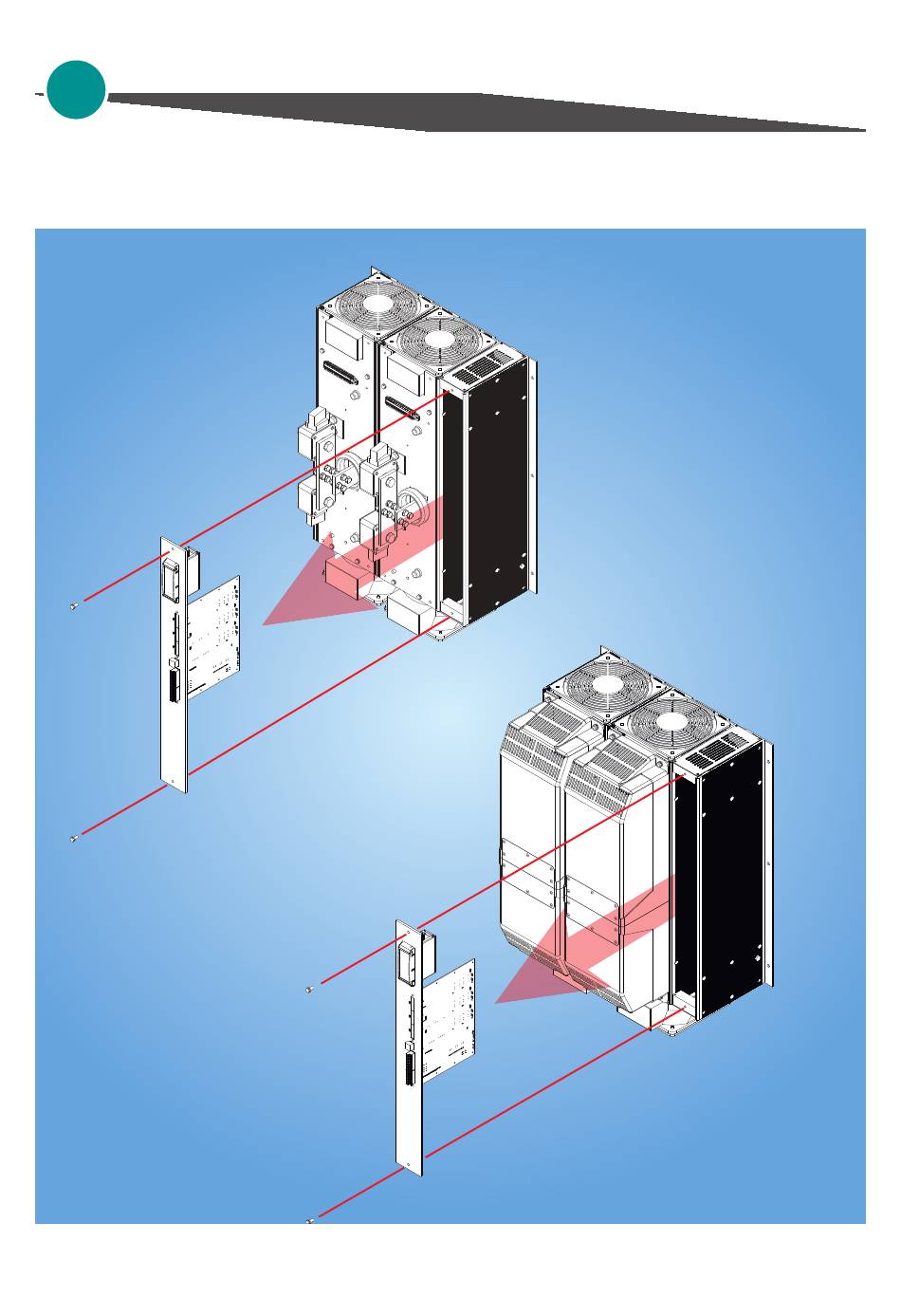

Electronic Board: access and substitution

Remove the connectors, unscrew the two M6 screws as shown in picture, and pull out the board with the
support.
Without IP20 protection
With IP20 protection
77
User's manual
