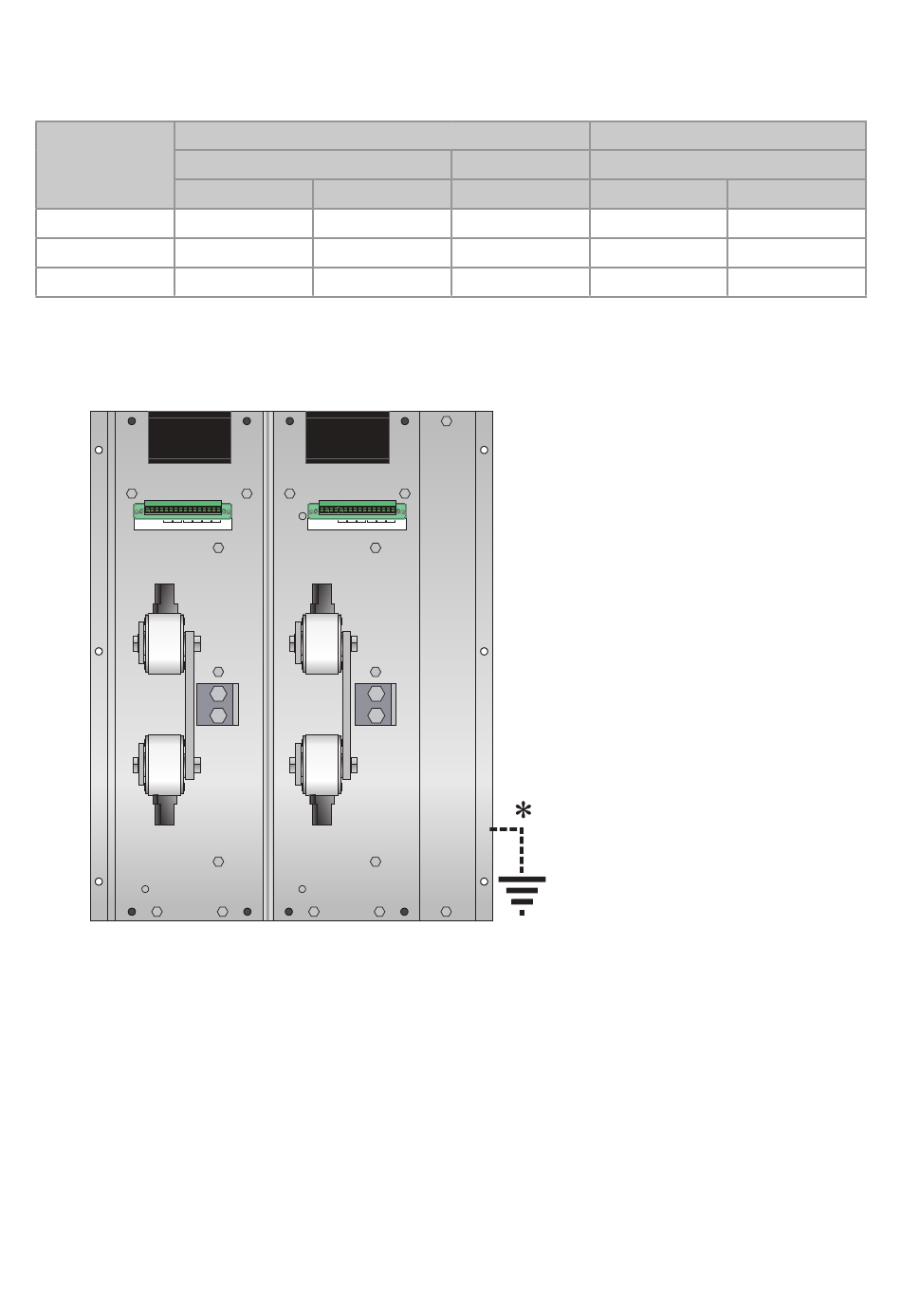

8.5 Cable dimensions (suggested) of Earth and of the Command Terminals

Current
1100A
1400A
1600A-2100A
G+G- K+ K- TA Fu An Pt1 Pt2
s e
Earth
Cable
mm² AWG
95 3/0
120 4/0
2x95 2x3/0
FAN G+G- K+ K- TA Fu An Pt1 Pt2
s e
220V
Screw
M
M8
M8
M8
FAN
220V
30
User's manual
Command Terminals
Cable
mm²
0,50
0,50
0,50
*
Earth connection
AWG
18
18
18
