INSTALLATION

Select a Location

Install the communicator away from metal objects. Do not mount the communicator inside or on a control panel metal
enclosure. Mounting the communicator on or near metal surfaces impairs cellular performance.

Mount the Communicator

The communicator should be mounted to a wall using the included #6 screws in the mounting holes. See Figure 1.
Mount the communicator in a secure, dry place to protect the communicator from damage due to tampering or the
elements. It is not necessary to remove the PCB when installing the communicator.
Antenna
4 Mounting
Holes in gray
Tamper
Programming
Connection
Power Connection
Terminals
Digital Monitoring Products
4
SMA
Connector
Cell Modem
+DC-

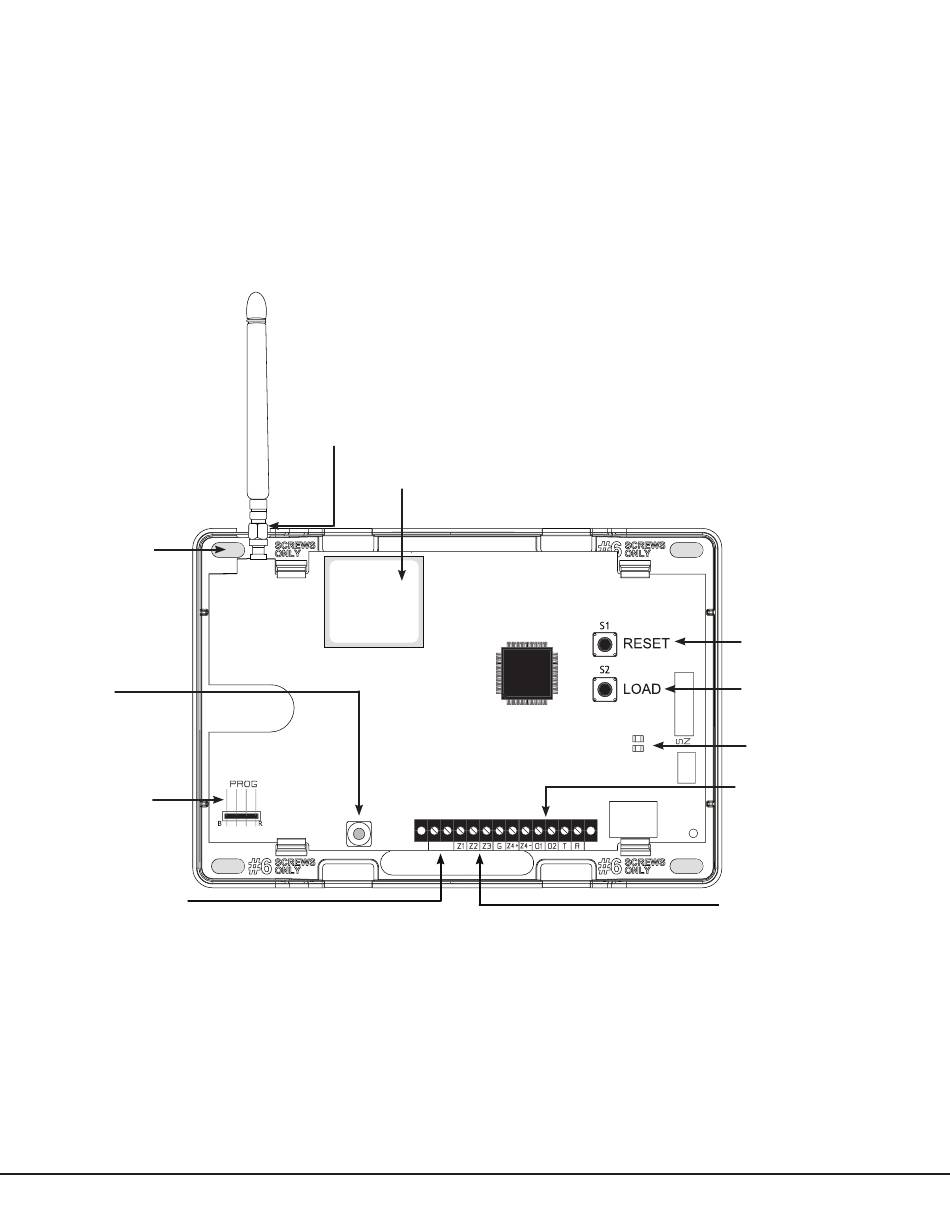

Figure 1: System Components
Zones 1-4
CellCom‑LTE‑V Programming and Installation Guide
Reset Button
Load Button
Backlit Logo,
Power/Armed
LEDs
Open-Collector
Outputs
