2.3 Product configuration

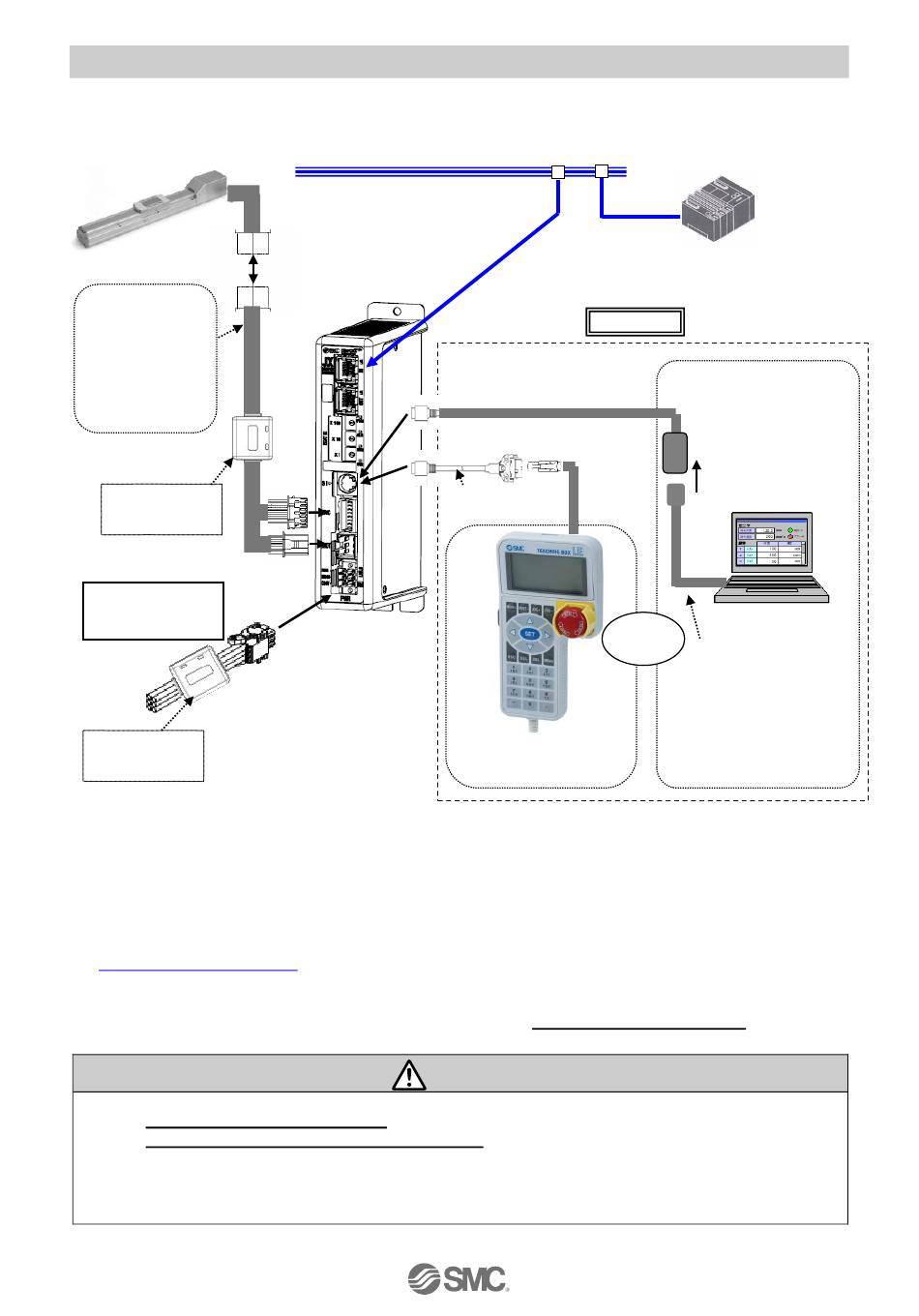

An example of the controller structure is shown below. ∗ 1
∗2
Electric actuator
∗2
•Actuator cable
(Robotic type cable)
Model number:
•LE-CP-□-□
(Robotic type cable)
•LE-CP-□-□-S
(Standard cable)
Noise Filter
LEC-NFA
∗4 ∗5
Controller power
supply
24VDC
Noise Filter
LEC-NFA
∗4 ∗5
∗ 1. The above configuration is based on passing the CE marking exam. (For conformity standards,
please refer to the declaration document on the SMC website.)
∗2. These items are included when ordered using the part number for an actuator set.
∗ 3. Latest version of the controller setting software must be used.
Please download the controller configuration software from the SMC website
https://www.smcworld.com
*4. Optional products.
*5. For details on how to install the noise filter, please refer to 14.8 Noise Filter Set (P. 59).
Refer to 5. External Connections (P.20) for wiring.
Refer to 16. Precautions for wiring and cable (P.66) when handling the wiring and cables.
The Communication cable must be connected to a PC using a USB cable through a conversion unit.
Do not connect the teaching box to a PC, as this may cause damage to the personal computer.
EtherCAT
●Controller
To ENC
To MOT
To PWR
•Power supply plug (Included)
Part No.: JXC-CPW
<Applicable wire size>
2
AWG20 (0.5mm )
To P1, P2
To SI
•Conversion cable
Part No.: P5062-5
•Teaching box
(3m cable is provided.)
Part No: LEC-T1-3□G□
Warning
-9-
PLC
(Option)
•Controller
communication cable
Part No: JXC-W2A-C
PC
or
•USB cable
(A-miniB type)
Part No: LEC-W2-U
No. JXC※-OMY0008
∗3 ∗4
