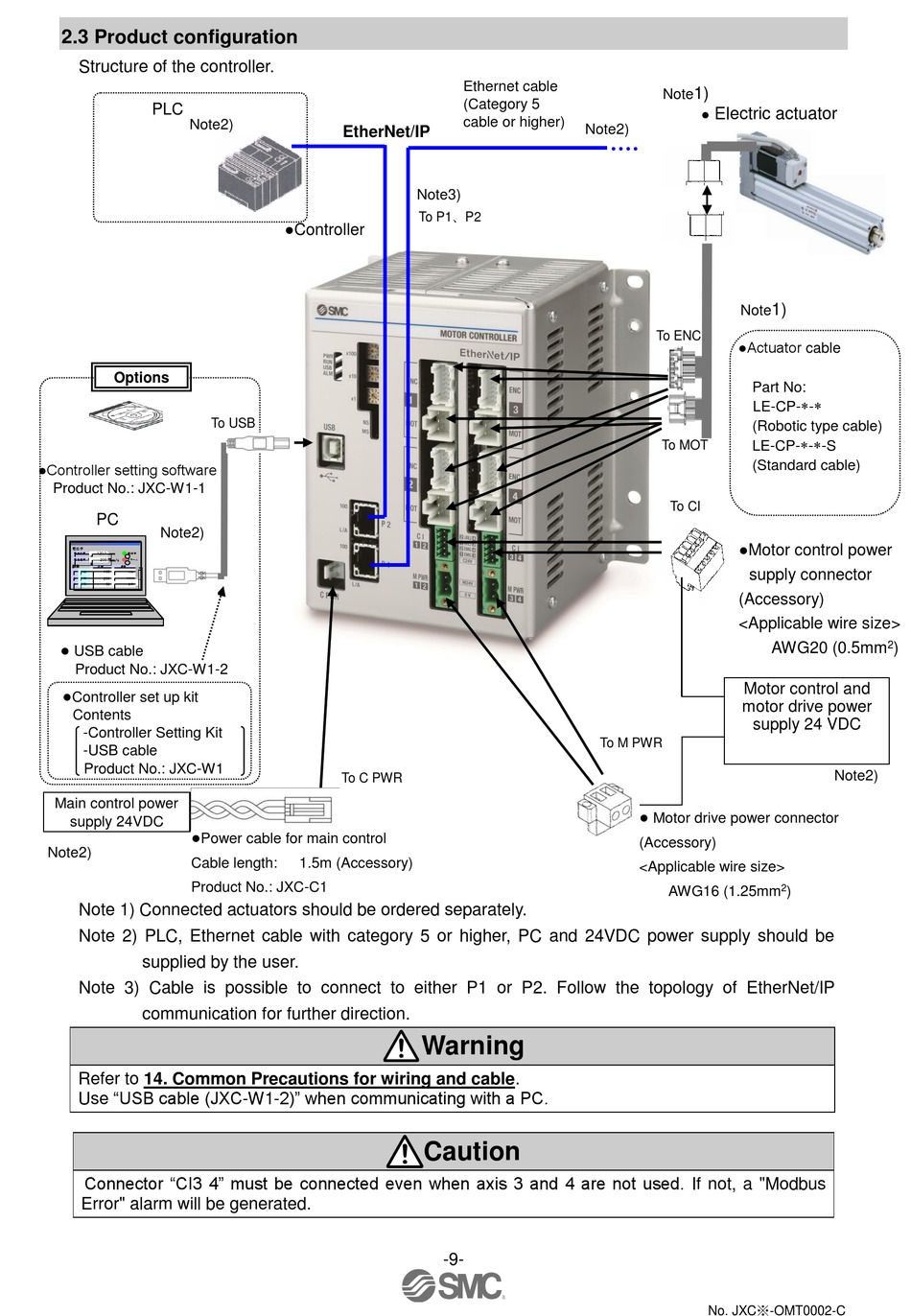

2.3 Product configuration

Structure of the controller.
PLC
Note2)
Options
●Controller setting software
Product No.: JXC-W1-1
PC
Note2)
モニ タ モニ タ
120.3 120.3 mm mm
現 在位 置 現 在位 置 動作 中 動作 中
200 200
現 在速 度 現 在速 度 mm/s mm/s ア ラーム ア ラーム
設定 設定
位 置 位 置 速度 速度
100 100
1 1 ﾃｽﾄ ﾃｽﾄ 500 500
2 2 ﾃｽﾄ ﾃｽﾄ 200 200 1000 1000
3 3 ﾃｽﾄ ﾃｽﾄ 50 50 200 200
●
USB cable
Product No.: JXC-W1-2
●
Controller set up kit
Contents
-Controller Setting Kit
-USB cable
Product No.: JXC-W1
Main control power
supply 24VDC
●
Power cable for main control
Note2)
Cable length:
Product No.: JXC-C1
Note 1) Connected actuators should be ordered separately.
Note 2) PLC, Ethernet cable with category 5 or higher, PC and 24VDC power supply should be
supplied by the user.
Note 3) Cable is possible to connect to either P1 or P2. Follow the topology of EtherNet/IP
communication for further direction.
Refer to 14. Common Precautions for wiring and cable.
Use "USB cable (JXC-W1-2)" when communicating with a PC.
Connector "CI3 4" must be connected even when axis 3 and 4 are not used. If not, a "Modbus
Error" alarm will be generated.
EtherNet/IP
●Controller
To USB
To C PWR
1.5m (Accessory)
Ethernet cable
(Category 5
cable or higher)
Note2)
Note3)
To P1、P2
Warning
Caution
-9-
1)
Note
●
Electric actuator
1)
Note
To ENC
●Actuator cable
Part No:
LE-CP-
(Robotic type cable)
To MOT LE-CP-
(Standard cable)
To CI
●Motor control power
supply connector
(Accessory)
<Applicable wire size>
AWG20 (0.5mm
Motor control and
motor drive power
supply 24 VDC
To M PWR
●
Motor drive power connector
(Accessory)
<Applicable wire size>
AWG16 (1.25mm
No. JXC※-OMT0002-C
 
-
 
- -S
2
)
Note2)
2
)
