6.4 Wiring of stop circuit

The actuator stops its operation when the external stop switch or the stop switch of the teaching box is
activated.

(1)Stop (example of recommended circuit)

When the controller recognizes the connection of the teaching box, the stop of the teaching box is
activated.

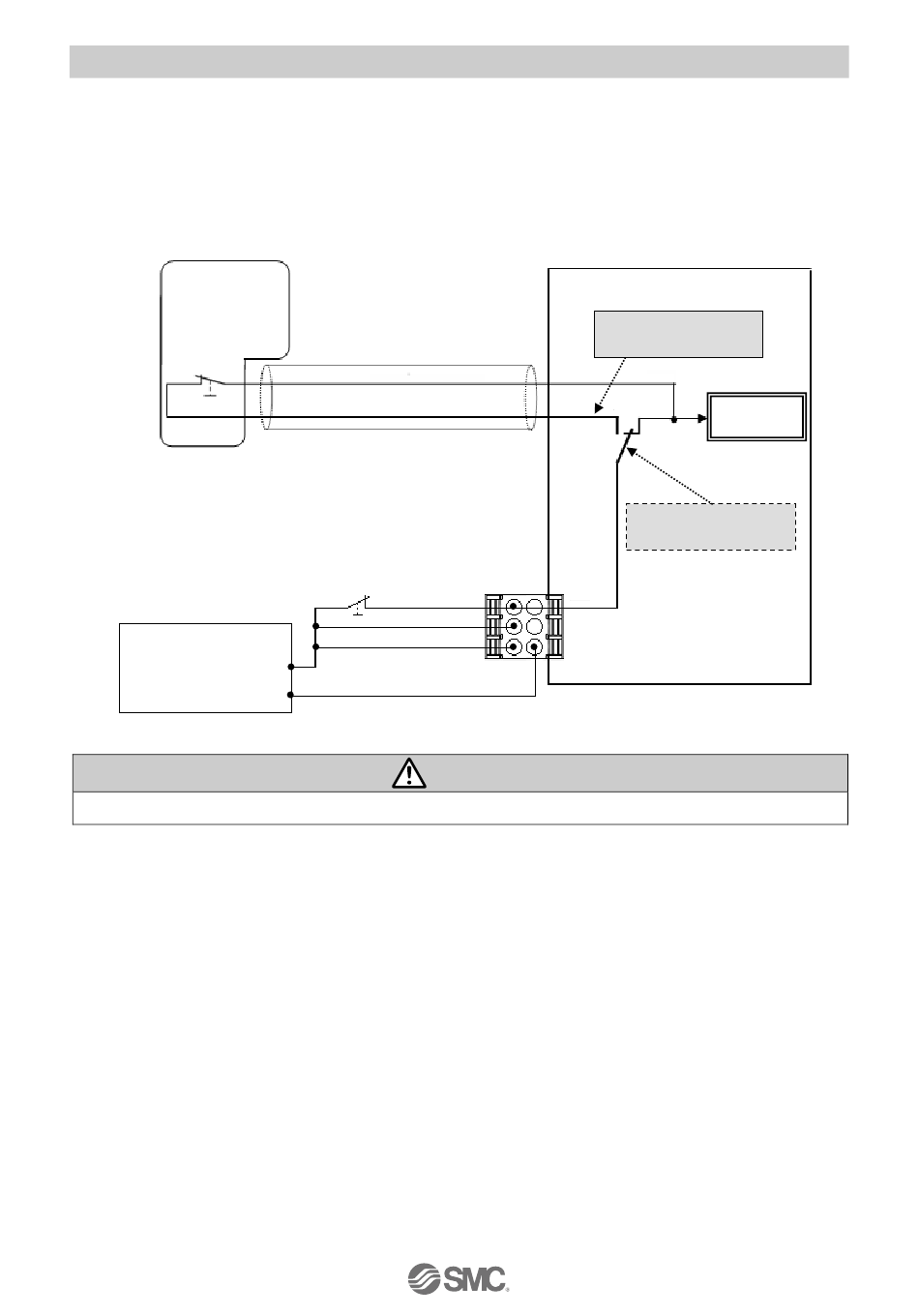

(Circuit example)
Teaching box
(Cable 3m)
Stop
Switch
Controller
24VDC
Input power
supply
The teaching box's stop switch is effective only for the controller that is connected to it.
External stop circuit
(3) EMG
(2) M 24V
(1) C 24V
0V
SI
PWR
0V (4)
Power supply plug
Warning
-24-
Controller
Connected to the
teaching box
Judged to
stop
Not connected to
the teaching box
No. JXC※-OMY0008
