Device overview

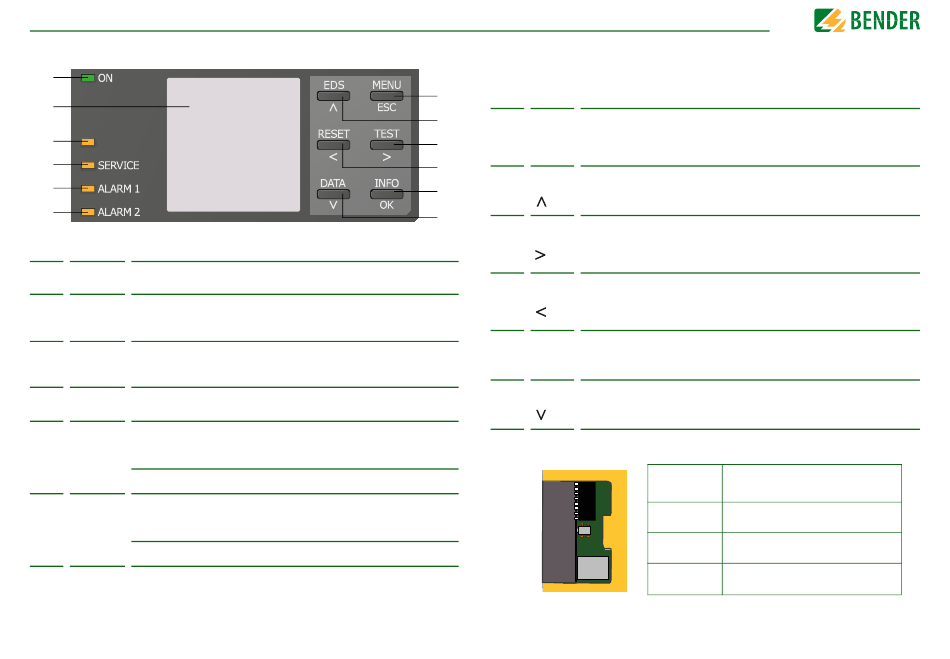

4.3 Display and operating elements

1
2
PGH ON
3
4
5
6

4.3.1 Display elements

ON
1
The operation indicator lights continuously.
(green)
The device display shows information regarding the device and the
measurements.
2
Further information is available in the chapter
The LED "PGH ON" flashes during insulation fault location. It indicates that
PGH ON
3
the locating current for the insulation fault location is generated.
(yellow)
The LED "PGH ON" is only activated at iso1685DP.
SERVICE
When a device error is detected, the SERVICE LED lights.
4
(yellow)
If the LED stays lit, please check the error code list on
Insulation fault 1 (prewarning):
ALARM 1
The "ALARM 1" LED lights continuously when the insulation resistance
5
(yellow)
falls below the response value 1, R
Flashes: Connection fault, check earth and system (L1/+, L2/–)
Insulation fault 2 (alarm):
ALARM 2
The "ALARM 2" LED lights continuously when the insulation resistance
6
(yellow)
falls below the response value 2, R
Flashes: Connection fault, check earth and system (L1/+, L2/–)
15
7
8
9
10
11
12
"Display" ab Seite 25
.
Seite
37.
< R
F
an1
< R
F
an2
Device overview

4.3.2 Device buttons

You can adjust the device settings in the respective menu using the menu buttons. De-
pending on the menu entry, one of the options displayed below is assigned to the but-
tons.
MENU
Opens the device menu.
7
Cancels the current process or
ESC
navigates one step back in the device menu.
EDS
Opens the EDS menu (only iso1685DP).
8
Navigates up in a list or increases a value.
TEST
Starts the device self test.
9
Navigates forwards (e.g. to the next setting step) or
selects a parameter.
RESET
Resets alarms.
10
Navigates backwards (e.g. to the previous setting step) or
selects a parameter.
INFO
Shows information.
11
OK
Confirms an action or a selection.
DATA
Indicates data and values.
12
Navigates down in a list or reduces a value.

4.3.3 Operating elements in the service lid

Operating
elements
DIP switch
(SS8103)
Button
(ST6101)
Memory card
(SD Card)
Function
No function
Alarm reset
No function
iso1685DP_D00272_03_M_XXEN/08.2017
