7.3 Fault indication (inactive)

An inactive fault is displayed by . If several faults have occurred, the number of faults
will also be indicated.

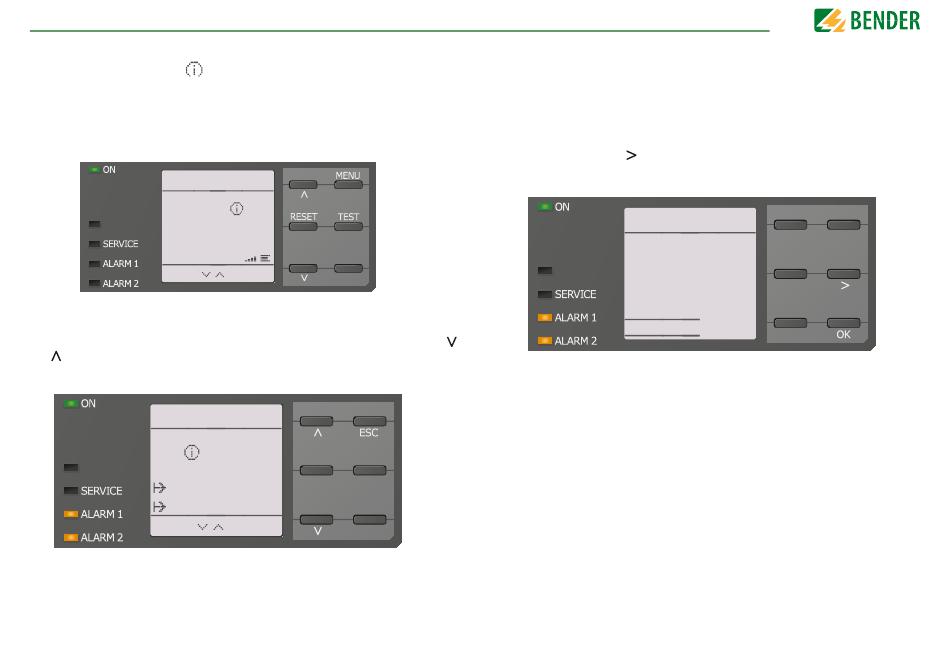

The message shown on the display below means that there has been a fault in the past
but the device is no longer in fault condition.
IT system
3x
PGH ON
230 kΩ 230 kΩ
EDS off
If several fault messages have appeared, you can navigate through the faults using the
and button. In addition to the type of fault and the associated alarm value, you can see
when the fault has occurred and for how long it has been active.
Insulation fault
7 kΩ
PGH ON
28.08.16 17:02
28.08.16 17:18
26
1/4
7 kΩ
2/4
Display

7.4 Acknowledging a fault message

In order to acknowledge the fault message and return to the ISOMETER®'s standard dis-
play, all faults must be acknowledged by means of the reset button.
This means that fault messages can only be reset when the cause of fault has been elim-
inated.
Press the reset button, then and OK to clear the fault memory. The ISOMETER® then re-
turns to the standard display.
RESET
Reset current
messages? All
PGH ON
messages are
saved in the
history memory.
Cancel
3.2
