7. 5 Data - isoGraph

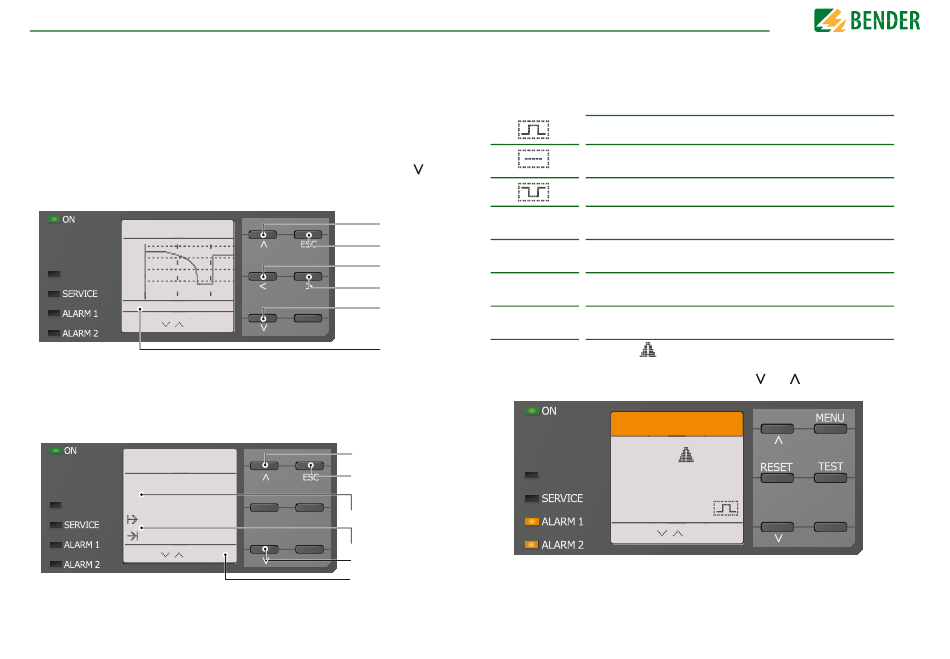

The isoGraph represents the chronological sequence of the insulation resistance over
time.
This graphical representation can be displayed over the following time periods: hour,
day, week, month and year.
The measured values for individual representations are stored in a separate memory.
Measured values for insulation, voltage, PGH current (current of the locating current in-
jector) and the temperature of the coupling and the locating current injector are indicat-
ed. You can switch the indication of the different measured values by pressing
100 measured values are available to represent each graph and the resolution of each
graph is determined by these values.
Data-isoGraph 3
1,0
,100
,010
PGH ON
,001
MΩ
Hour 16:26 16:52

7. 6 History memory

Up to 1023 alarm messages and device errors are stored in the history memory with date
and time stamp. If the history memory is deleted, the minimum insulation resistance R
will also be reset at Menu/Data Measured values - Data insulation.
History
Insulation fault
11kΩ
PGH ON
28.03.14 17:02
28.03.14 17:18
27
Change parameter
Leave view
Change scale
Modify scale
Change parameter value
1/5
Current time scale
Next message
5.1
Leave view
Fault description
Alarm value
Fault occured
Fault disappeared
8/8
Previous message
Number of selected erro
Total number of
error messages
Display

7. 7 Insulation fault location

When the EDS mode is activated, the ISOMETER® indicates the message "Ins. fault locat.".
Below, it indicates which EDS mode is activated. On the right side it indicates the polarity
change of the measuring pulses including the pause in between.
Measuring pulse rising edge
Pause
. Up to
Measuring pulse falling edge
EDS off The insulation fault location function has been deactivated
The insulation fault location is in "auto" mode
EDS auto
(see diagram below)
EDS 1 cycle The insulation fault location is in "1 cycle" mode
EDS manual The insulation fault location is in "manual" mode
An active fault is indicated by
displays the fault message. The alarm LEDs are lit. If several fault messages have ap-
peared, you can navigate through the faults using the
min
PGH ON
For further information regarding the different modes, refer to
. The upper part of the display becomes orange and
and
IT-System
1x 1x
Fault location Fault location
EDS auto
1/2
