Commissioning

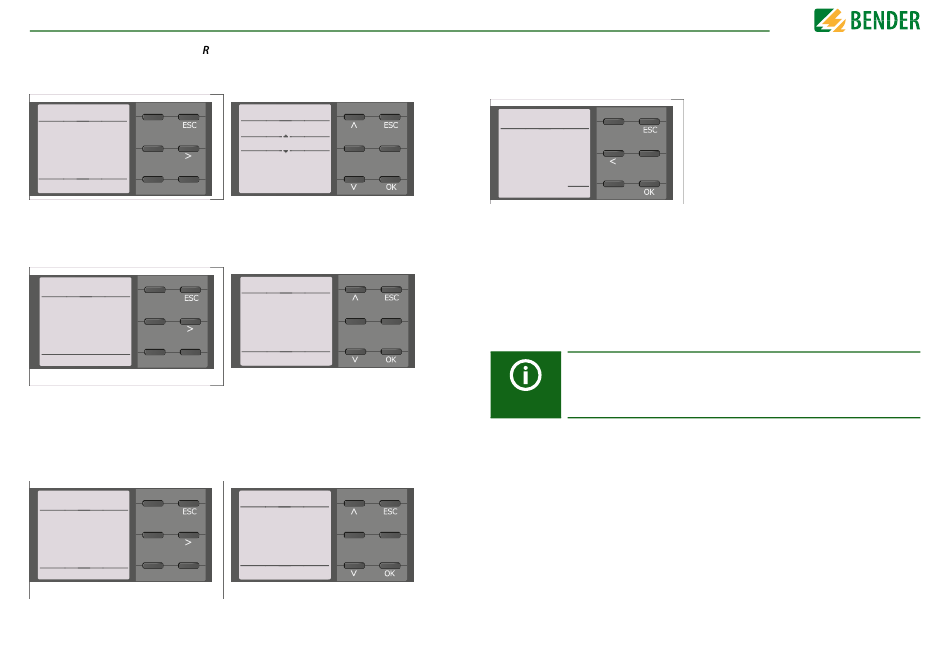

6.3.5 Setting response value
The response value for the main alarm can be set here.
A value of 50 Ω/V is recommended for the main alarm.
lle
Commissioning 6.6
Please set the
response value
for R(an2) for
Alarm2.
6/9

6.3.6 Setting EDS mode (only iso1685DP)

Set the mode for the insulation fault location to manual, automatic or 1 cycle. For further
information, refer to "Mode" auf Seite
lle
Commissioning 6.6
Please select
the EDS mode.
7/9

6.3.7 Set the EDS current(only iso1685DP)

Set the maximum locating current.
EDS441: 1-5mA
EDS440: 10-50mA
For further information see "Current" auf Seite 33.
lle
Commissioning 6.6
Please set the
required EDS
current.
8/9
23
for Alarm 2
an2
Alarm 2 6.6.7
10 kΩ
min. 200Ω
max. 1MΩ
32.
6.6.8
Mode
o off
o manually
• auto
o 1cycle
6.6.8
Mode
o off
o manually
• auto
o 1cycle
Commissioning

6.3.8 TEST

Set the mode for the insulation fault location to manual, automatic or 1 cycle. For further
information, refer to "Mode" auf Seite
lle
TEST 6.6.10
Start Test?
Relais may
switch.
Cancel TEST

6. 4 Recommissioning

If the device has already been put into operation before, the self test will be started short-
ly after the supply voltage has been connected. You can restart the commissioning wiz-
ard using the following menu path:
Menu/Device settings/Commissioning
This menu can be used to modify previously made settings.
Observe device status!
Once initial commissioning has been completed and the initial measure-
ment taken, the device changes from the alarm state to normal state by
adhering to the set response values.
If the device has been commissioned before, the self test is not run again. It can be called
up via the "Control" menu (refer to Seite
32.
33).
