6.3 Initial commissioning

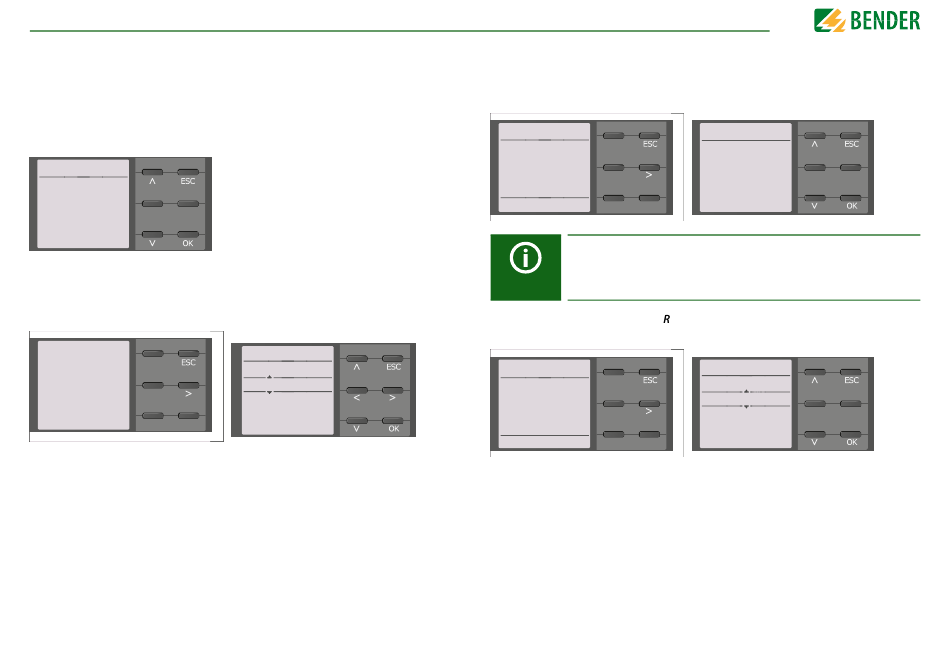

Follow the instructions of the commissioning wizard on the display.
Use the device buttons to navigate. For a description of the device buttons,
refer to "Device buttons" auf Seite

6.3.1 Setting the language

The language selected here will be used in the menu and for device messages.
Language
6.6.2
• Deutsch
o English
o ...

6.3.2 Setting date and time

Alarm messages in the history memory and the insulation resistance value over time can
only be assigned correctly to the isoGraph when date and time are set correctly.
lle
Commissioning 6.6
Please set the
current date
and time.
2/9
22
15.
Date 6.6.3
14.08.2016
min. 1
max. 31
Commissioning

6.3.3 Setting the profile

In order to optimally adapt the insulation monitoring device to the system to be moni-
tored, select a profile here that suits your system. For an overview of the profiles, refer to
"Device profiles" auf Seite 42. The profile Power circuits is suitable for most IT systems.
lle
Commissioning 6.6
Please select a
profile that
suits your
application.
4/9
The response value range changes depending on the selected profile. Re-
fer to "Response values for insulation monitoring" auf Seite
6.3.4 Setting response value
You can set the prewarning response value here.
lle
Commissioning 6.6
Please set the
response value
for R(an1) for
Alarm1.
5/9
Profile 6.6.5
• Power circuits
o Control circuits
o Inverter>10 Hz
o Inverter<10 Hz
o Fast 2000 μF
for Alarm 1
an1
Alarm 1 6.6.6
40 kΩ
min. 200Ω
max. 1MΩ
