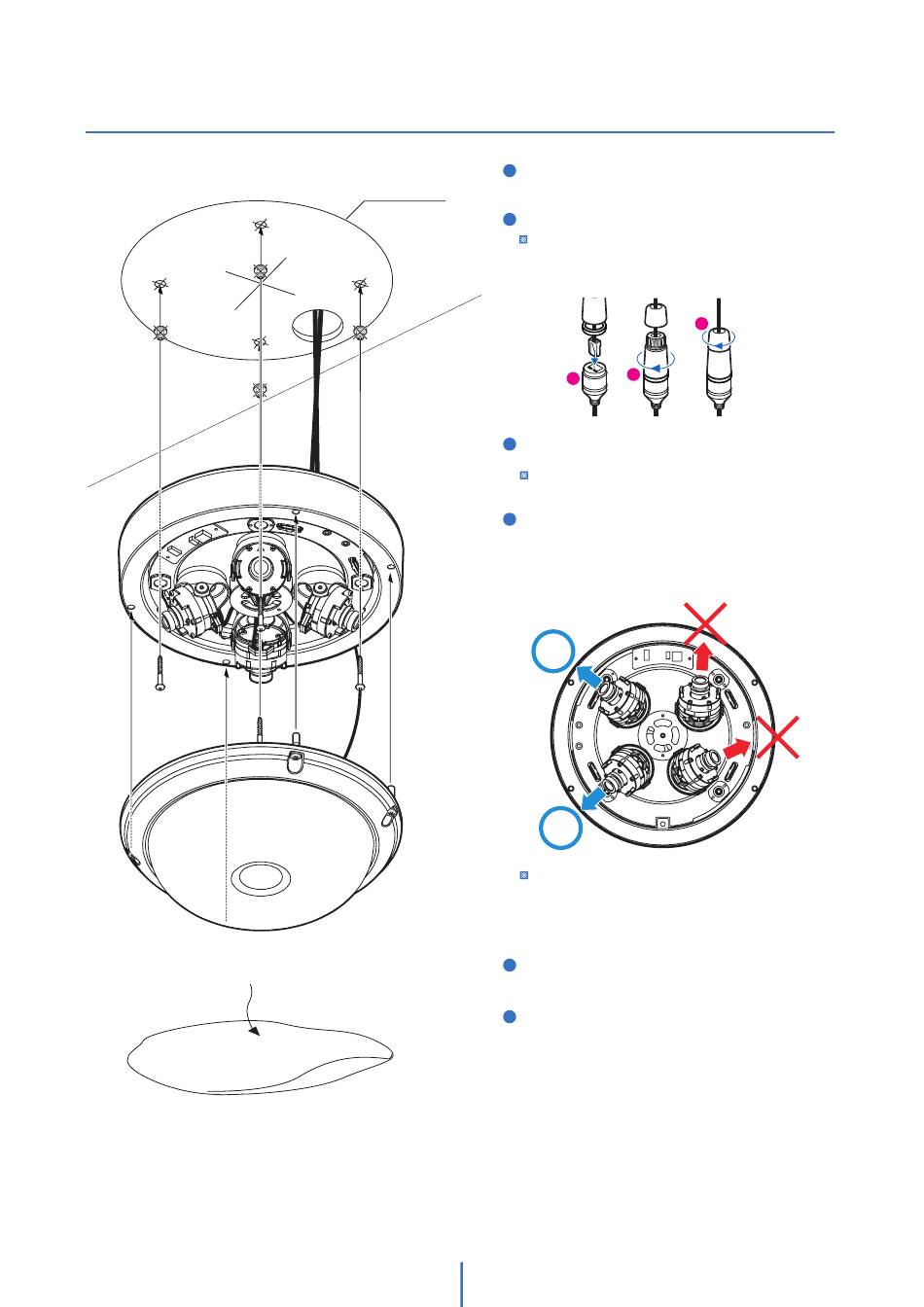

Installation
Use the camera or mounting template to mark and
1
drill the necessary holes in the wall or ceiling.
Template Sheet
Pull wires through and make all necessary connections.
2
Put the Lan cable into (a), then (b) will be assembled to (a)
tightly. As a final step, (c) need to be assembled to (b)
without making any space.
Using (4) included screws, mount the camera's
3
bottom case to the mounting surface.
Before mounting camera to mounting surface,
remove the screw rubber stopper.
Adjust the camera module on the magnetic surface for
4
the ultimate coverage and view. Each camera module
snaps into position using the magnetic track, allowing
for maximum customization and fully adjustable views.
When installing the product, align the module direction as
shown in the below and fix the dome cover carefully.
Image distortion may occur when not installed according
to the guide.
Secure the dome cover to the camera's bottom case
5
using the torx wrench.
Remove the protective film from the camera's dome to
6
complete the installation.
9
c
b
a
